Walnut processing line, Poltava region.

Walnut processing line specificationгрецкого ореха

1. Supply conveyor with receiving hopper:
The conveyor is 1500 mm long and 300 mm wide and has the following.
Features:
- Conveyor type: lifting, stationary.
- Type of tape: PVC food grade, having a height of 40 mm with a step between them of 200 mm.
- The height at the end of the conveyor is 1500 mm, the height at the beginning of the conveyor is 700 mm.
- The height of the board is 50 mm.,
- The speed of the tape is 0.5 m/s.
- Gear motor made in Italy with a capacity of 0.55 kW, brand Neri Motori
- Frame material - structural steel

2. Ejected (with aspiration system):
Discarded for sortingnuts in fractions 1/2, 1/4, 1/8 and crumbs
- The type of waviness is mesh.
- Overall length: 1600 mm.
- Overall width: 1000 mm.
- Height: 1300 mm.
- The sieve is equipped with three removable sieves with total dimensions of 850 × 1200 mm.
- The material for making sieves is galvanized steel.
- The material of the frame is structural steel with powder coating.
- The dimensions of the hole on the screens are 6 mm, 16 mm, 20 mm.
- Output trays for 3 fractions are located at the end of the sieve.(//tractor-service.com)
- The sieve is equipped with a 0.55 kW vibrator;
- Connection 380 V.

3.Inspection table:
Inspection table: horizontal, frame, mobile.
- Type of tape: white PVC, food grade, 2 mm thick. Production Chiorino Italy.
- Overall length of the conveyor: 4000 mm
- Height: 800 mm
- Width: 800 mm.
- The speed of the tape is adjustable from 0.2 to 0.9 m/s.
- Motor-reducer made in Italy with a capacity of 0.55 kW, with a frequency converter.
- Illumination of LED lamps.
- Flow dividers.
- Metal of manufacture: structural steel with powder coating.

The line can be equipped with an aspiration system.

The complete set of the line may change depending on the customer's requirements.

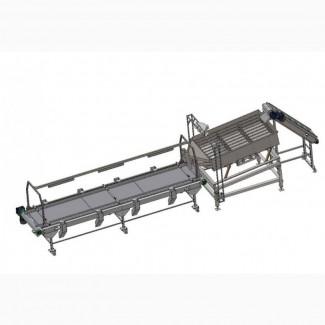

Before launching the equipment into production, we create 3-D models of the product for final coordination of the appearance with the customer.

The warranty on the equipment is 12 months, and post-warranty maintenance.

We will be happy for a long-term and mutually beneficial cooperation!
