Hydraulic straw bale shredder 505M XL, Poltava region.

Tomahawk 505M XL is intended for crushing straw in bales of any size and further spreading it over the stalls for 10-20 meters. The straw cutter works with two bales at the same time.

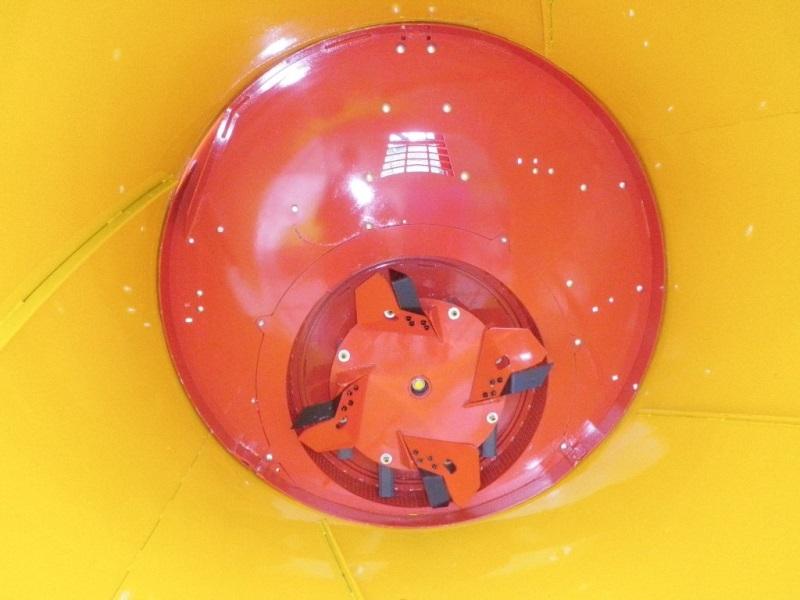

The shredder is equipped with a hammercrusher, a fan for straw ejection and a sieve of different cells depending on the required fraction. Due to the absence of blades in the cutting part, the machine is less prone to damage due to stones.
Shredded straw can be used as an ingredient for a fodder mixture, as bedding, in different lines such as briquetting and granulation.
The straw chopper Tomahawk 505M XL can be used both in a stationary and in a hinged version.

Name (Series) 505MXL
Productivity kg.h. 2000-2500
The power consumption is 120 hp.
Working width 2.78 m
The diameter of the drum is 1.83 m.
The maximum diameter of a round bale is 1.8 m.
The maximum size of a rectangular bale is 1.2 m x 1.2 m.
The total height with the car on the ground is 2.78 m.
Width with closed gutters 2.05 m
The unloading height of the lower chute is 0.4 m
The unloading height of the upper chute is 1.09 m(//tractor-service.com)
The total length is 3.68 m.
Available drum extension 30 and 60 cm
Working width with retractable chute 2.35 m
Unloading height of the retractable chute 2.84 m
The unloading height of the retractable chute is 1.9 m.
Weight 1,073 kg
Straw Fine fraction
Forage silage in bales No
Fodder silage placer No.
Preparation of bedding in boxes Yes
Preparation of bedding for stableless maintenance Yes

Delivery time of the equipment: Есть в наличии.
Terms of delivery: Free in Ukraine.
Start-up, training: Free in Ukraine.
Terms of payment: For the goods - 50% advance payment for opening the order and 50% - payment when the equipment is ready for shipment withwarehouse distributor
Warranty period for the product: 12 months from the date of shipment.
