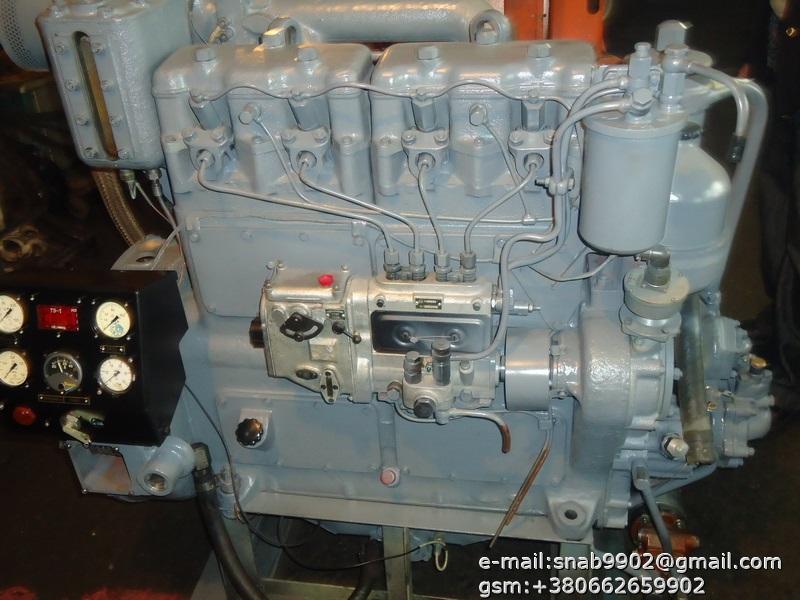

Spare parts for diesel engines 4Ch10, 5/13, Kherson region.

Spare parts for diesel engines 4Ч10,5/13: K-167, K-360M, K-362M, K-364M, K-562M, K-962, etc.

CYLINDER HEAD
1. Cylinder head (bare) 962.05.001-1
2. Cylinder head complete with valves 962.05.023-1

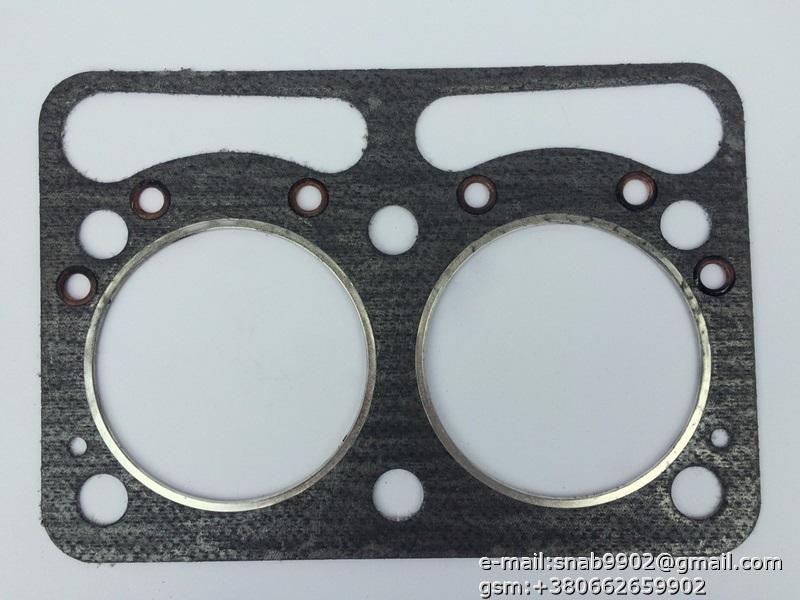

3. Block head gasket 160.03.012
4. Gasket under the exhaust manifold 962.05.167
5. Barbell 4h1.06

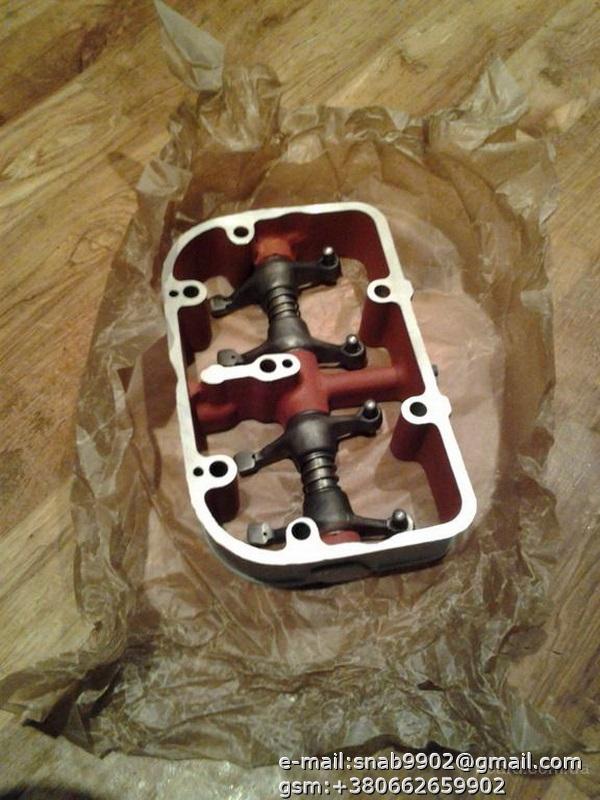

6. Rocker bracket 962.05.021-1
7. Inlet valve 160.05.127
8. Release valve 160.05.134
9. Valve guide sleeve 962.05.108
10. Incandescent candle SND100-B4
CYLINDER-PISTON GROUP, BLOCK
11. Crankshaft 962.02.101

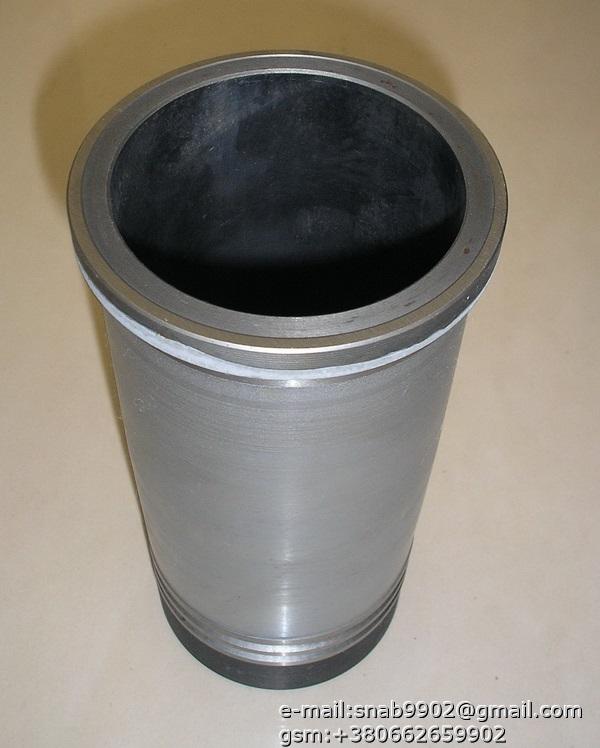

12. Cylinder sleeve 962.03.102
13. Cylinder sleeve sealing (cut) 962.03.114

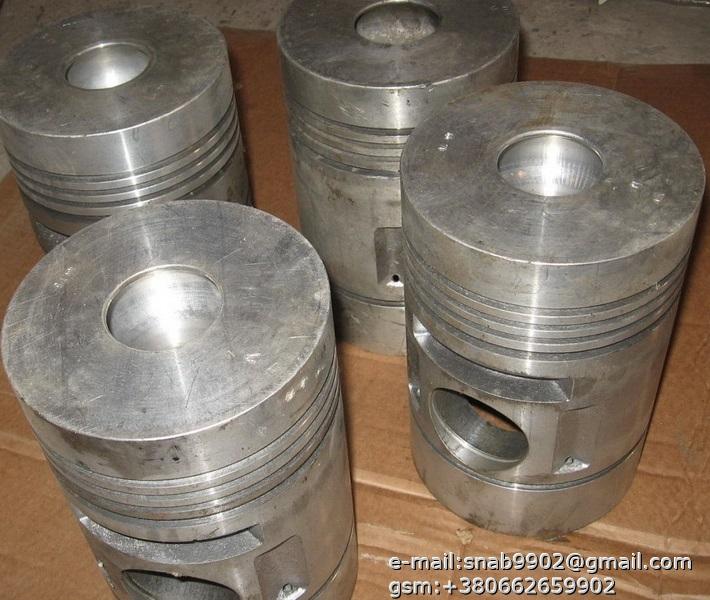

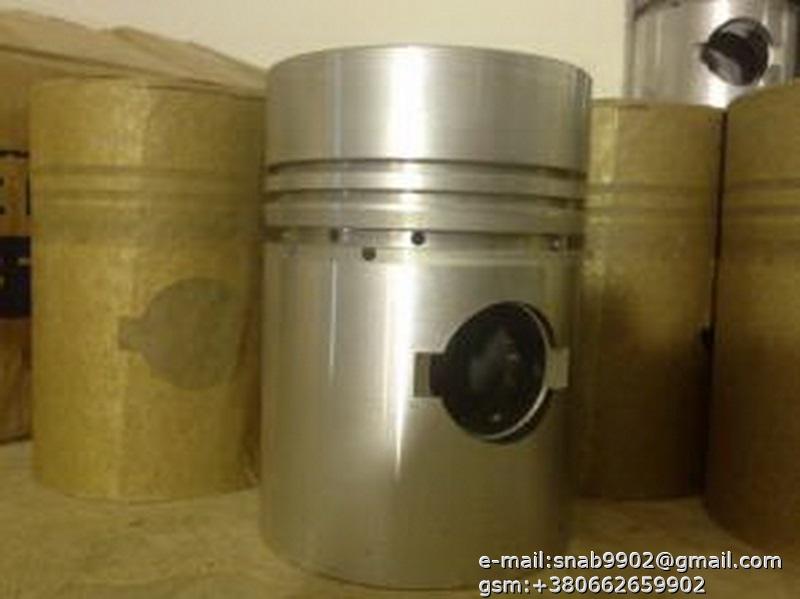

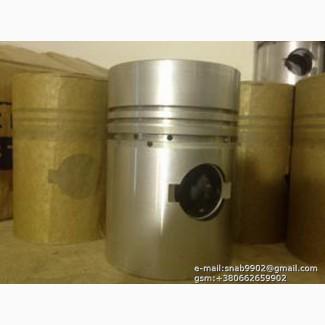

14. Piston for a needle sprayer 3-hole 962-04-101-3
15. Piston for five-point sprayer 962-04-101-1

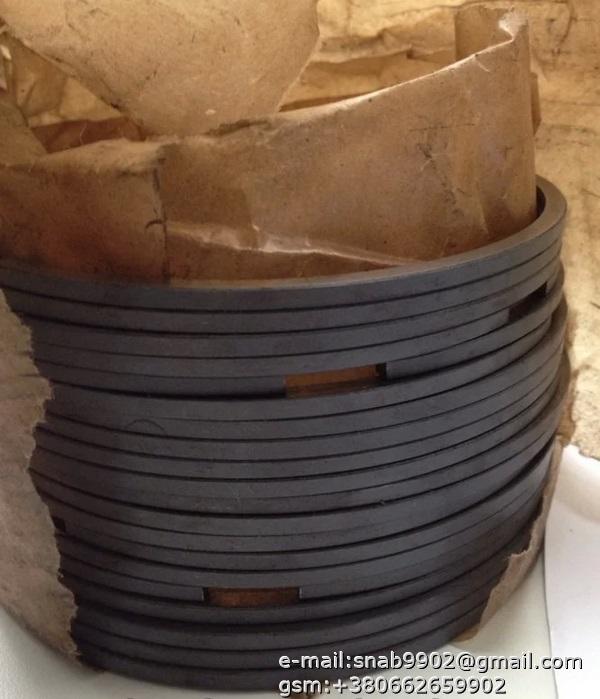

16. Upper compression ring (chrome) H=3.00 962.04.114
17. Compression ring H=3.00 962.04.102
18. Oil removal ring with expander H=5.00 962.04.022
19. Oil removal ring H=2.15 962.04.103
20. Piston pin 1h2.032
21. Bushing of the upper head of the connecting rod 160.86.104
22. Connecting rod 160.04.101-1
23. Connecting rod bolt 1h2.0310
24. Connecting rod insert (pair), nominal value, rem. (P1-P3) 457.04.109/150.04.110
25. Insert root narrow (pair), denomination, rem. (P1-P3) 4h1.0113-1/4h1.0162
26. Root insert wide (pair), nominal, rem. (P1-P3) 4ch1.0112-1/4ch1.0161
27. Semi-ring of a bearing thrust pair 4х1.0114/0115
28. Crankshaft gear Z = 25 1h2.0215-1
29. Crankshaft gear Z = 37 4х2.0222-1
30. Camshaft gear Z = 33 4х1.052-1
31. Camshaft gear Z = 50 4х1.053-1
32. Oil pump drive gear Z = 33 962.03.002
33. Parasitic gear Z = 31 4h2.1426-2
34. Fuel drive gearpump Z = 33 4h2.0750-1
35. Fresh water pump drive gear Z = 22 4х2.099-1
36. Outboard water pump drive gear Z = 22 167.31.108
37. Charging generator drive gear Z = 13 360.08.021
38. Distribution shaft 962.03.131
FUEL SYSTEM
39.Fuel pump high pressure (cap. repair) With warranty
40. High pressure fuel pump 260.44.000
41. High-pressure fuel pump from cap. of repair With a passport, warranty
42. Cam shaft TNVD 260.44.108
43. TNVD shaft bearing No. 204
44. Cuff of the camshaft of the fuel injection pump 20x40x10
45. Needle nozzle 171.25000-01
46. Sprayer 4 x 0.38 184.25.001
47. Five-point nozzle 962.25.000.2
48. Spray pen 457.25.001
49. Plunger pair 262.44.003-2
50. Pressure valve 160.44.004
51. Pressure valve spring 160.44.132
52. Kaprolon injection valve gasket 160.44.122
53. Elastic washer of the TNVD drive 4х1.0752
54. High-pressure fuel line 962.20.001
55. Pusher finger 160.44.145
56. Pusher roller 160.44.144
57. Floating sleeve (internal roller) 160.44.146
58. TNVD bypass valve (reducing) 160.44.011-1
59. Fuel pump 160.37.000-1
60. Piston spring of fuel pumping pump 337.37.109-1(//tractor-service.com)
61. Manual pumping pump 160.37.022-2
62. TNVD regulator as a whole 260.44.000
63. Regulator core 150.44.026
64. Clutch with screw ("mushroom" and screw) 150.44.011
65. Regulator handle 150.44.027-1
66. Regulator handle lock 150.44.122
67. Latch spring 150.44.123
68. Handle nut 150.44.225
69. Remote control electric motor (МН-145) 661.74.007
70. Stop device SU-1-24VN
71. Oil pump 360.10.000
COOLING SYSTEM
72. Outboard water pump 167.31.000
73. Impeller of the seawater pump 260.31.005
74. Fresh water pump 167.11.000
75. Fresh water pump impeller 260.11.002
76. Washerpump sealer (textolite) 150.11.112-2
77. Sealing sleeve of water pumps 756.11.117
78. TC thermostat in housing 109-1306010
79. Thermostat TS 109-1306010
80. Water-water refrigerator 862.54.000-1
81. Package of refrigerator tubes 962.54.042
82. Sealing ring of the refrigerator cover (rez) 664.54.116
83. Oil cooler filter with centrifuge 160.12.000
84. Sensor level relay DRU-1
ELECTRICAL EQUIPMENT, INSTRUMENTS
85. Starter ST-25
86. Generator charging GSK-1500
87. Charging relay RL-2M (RL-N-1M)
88. Speed relay RS-3M
89. Oil pumping pump MZN-2 complete 657.17.026
90. Electric motor of the MZN-2 MN-1 pump
91. TMi3M tachometer indicating device
92. Primary school converter. tachometer (tachogenerator) D-2 MM
93. Voltammeter VA-240
94. Remote thermometer (capillary 6 m) TKP-60/3M-6
95. Remote thermometer (capillary 12 m) TKP-60/3M-12
96. Remote thermometer (capillary 16 m) TKP-60/3M-16
97. Remote manometer (capillary 6 m) MTP-60S1-M1-6
98. Remote manometer (capillary 12 m) MTP-60S1-M1-12
99. Remote manometer (capillary 16 m) MTP-60S1-M1-16
100. KRM pressure sensor-relay (DEM-102)
101. Sensor-relay of the temperature of water, oil KRM (TAM-102)
102. Voltage corrector KH-3
REVERSE REDUCER
103. Reverse reducer RRP-20-2 167.45.000
104. Drum 551.45.001
105. Medium disk 551.45.140
106. Friction disc 551-45-003
107. Front gear shaft 551-45-126-1
108. Rear drive shaft 551-45-148
109. Intermediate flange assembly 551.45.026
110. Bearings No. 208
111. No. 2609
112. No. 308
113. No. 314
114. No. 6-406
115. No. 7215Н
116. No. 7315
MISCELLANEOUS
117. Catalog of diesel engine parts of the 4Ch 10.5/13 series
118. Fuel cleaning filter element 73x9x84 ETF-2
119. Soft connection of a generator with a diesel engine 150.23.104
120. Copper spacers diameter 8, 10, 12, 14 mm
121. Gaskets copper diameter 16, 18, 20, 27 mm
