T-16M brake pulley 7.38.103, Kharkov region.

T-25, T-16 brake pulley (D-21)

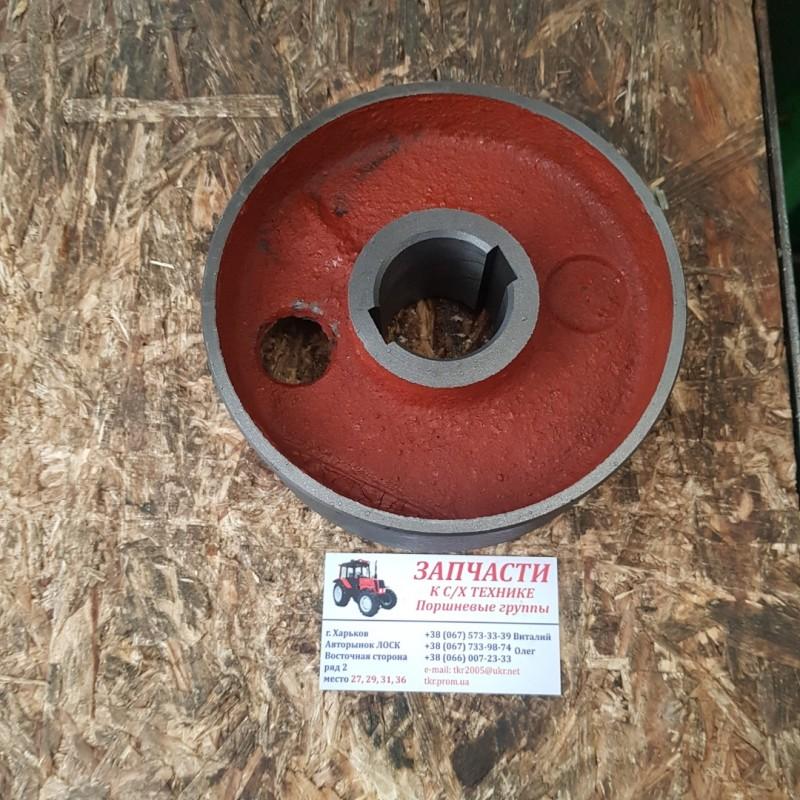

The cast iron brake pulley 7.38.103 is located inside the sleeve T30.38.101 and is mounted with the help of two keys 14.38.532 on the drive gear shaft of the on-board transmission. The axially displaced pulley is held by spring locking rings in the grooves of the keys.
(//tractor-service.com)
The outer surface of the brake pulley is covered with brake tape 25.38.020.

In the unbraked state, the gap between the brake pulley and the brake tape pad should be 1-1.5 mm, which corresponds to a brake pedal stroke of 30-50 mm. Brake pulley 7.38.103 is used in the transmission of wheeled tractors T-25, T-25A, VTZ-2032 and their modifications.

catalog number  7.38.103
