Transporter scraper for manure removal, Zaporizhia region.

For sale: Scraper transporter for manure removal
It is intended for cleaning bedding and manure from livestock premises with simultaneous loading into a vehicle. Choppedstraw, slightly decomposed mountain peat, milled peat, sawdust should be used as litter. Straw longer than 100 mm is not allowed.

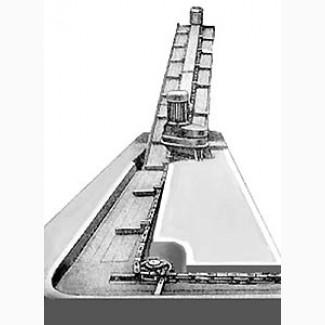

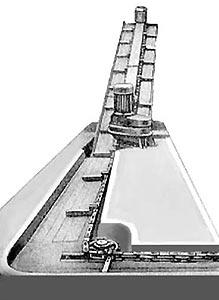

The conveyor consists of two sections: horizontal and inclined. Each of the sections has an independent drive. The horizontal conveyor delivers litter and manure from livestock premises to the inclined conveyor. The inclined conveyor moves litter and manure up the trough and dumps it into the vehicle.

Designation when ordering:
Scraper conveyor for manure TSN-3,0-B
Technical characteristics
TSN-3,0-B
Productivity, t/h4
Horizontal conveyor chain length, m160(//tractor-service.com)
The length of the inclined conveyor chain, m13
Number of serviced animals, head. 100
Installation angle of the inclined conveyor, °30
Installed capacity, kW6.2
The speed of movement of the chain of the horizontal contour, m/s0.19
The speed of movement of the inclined circuit chain, m/s0.73
Labor intensity of installation at finished construction works, person/h32
Overall dimensions and mass
Mass, kg2085
Mass of the horizontal contour, kg1532
Mass of the inclined contour, kg553
The price is calculated depending onfarm dimensions.
