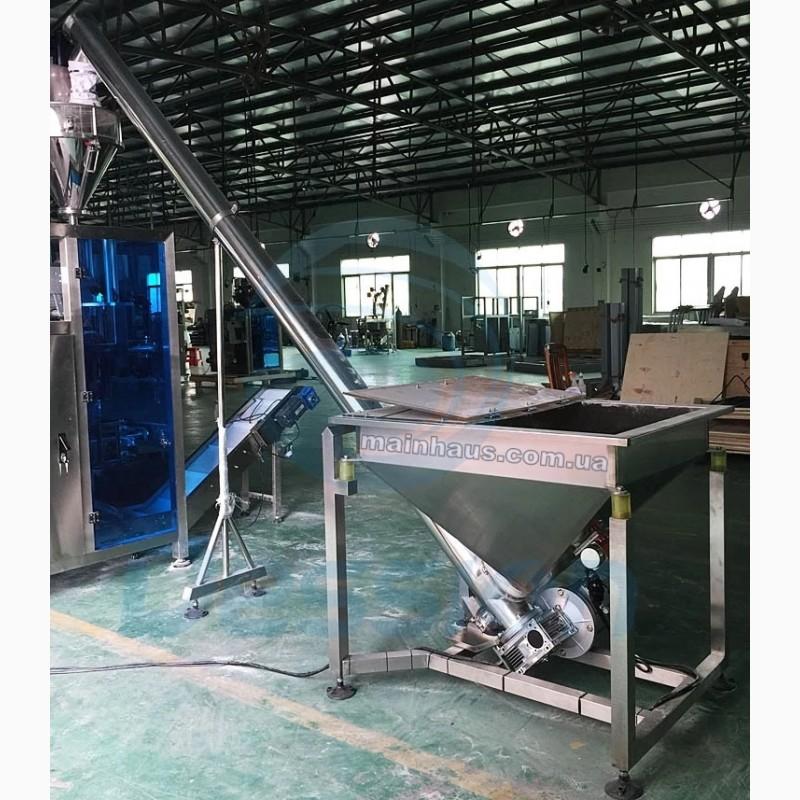

Vibrating screener (vibrosieve) auger loader with hopper stainless steel for food products, Poltava region.

Length of the conveyor at the ends, mm 3500
The outer diameter of the pipe, mm 139
Pipe wall thickness, mm 2.0
The thickness of the auger blade, mm 3.0
Blade diameter, mm 125
Drive NMRV-050; 280 vol. in min.; 1.5 kW; 46N. m.
Location of the drive at the entrance
End supports of bushings polyamide-6
Unloading height, mm 2000(//tractor-service.com)
Vibromotor vibrator platform VM 60/3, 0.1kW, 380V
Bunker dimensions, L*W*H, mm 700*700*650
Hopper volume, l 200
Discharge neck, mm Ø139, h150
Stand (base, frame) - (aisi-304)
Screw conveyor material aisi-304
Hopper material aisi-304
Warranty, month 12
It is possible to make screw conveyors in individual sizes!
