Medogonka radialnaya 16r/32p/4d "Mashenka", Dnepropetrovsk region.

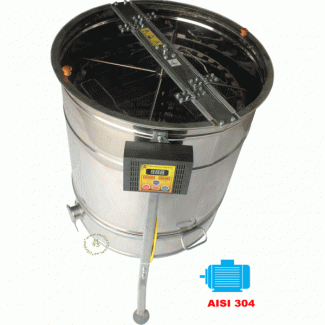

Radial combi stainless steel honey comb "Mashenka" (steel grade AISI304):
The rotor shaft is made of round AISI304 stainless steel rod with a diameter of 16 mm, the rotor spokes are made of a rod with a diameter of 10 mm.
Support rings are made of a strip of 20x4 AISI304 stainless steel.Discs with slots for frames made of stainless
AISI304 steel sheet with a thickness of 3 mm. The lower support of the rotor is made of a round bar of AISI304 stainless steel.
The container has a conical bottom, made of AISI304 stainless steel sheet with a thickness of 0.8 mm. Stiffness of capacity, krome
the edge of rigidity on the surface, on top is reinforced with a 25x25 angle made of AISI304 steel.Plum honey is carried out or through a tap
Д55 made of AISI304 steel, or through a plastic tap.
Non-rotating cassettes with hooks are installed in the disc holes. Cassettes have a patented design that provides
safety of combs from irreparable damage when duck honey at high speeds. Cassettes are made of round bars
AISI304 stainless steel with a diameter of 3mm (longitudinal bars) and 4mm (transverse bars).
The crossbar and legs are bent from a sheet of carbon steel with a thickness of 3 mm and covered with polymer powder paint.
The container is closed from above with plexiglass lids.(//tractor-service.com)

Honeycomb radial combined 16R/32P/4D "Mashenka" - M93263.
material:
stainless steel 304
Complete set:
stand
cover
electric drive.
Overall size: 176
D=720мм.
h=1300mm.
weight - 40 kg.
honey pocket - 40 liters. Details: https://medoray.top/p770712003-medogonka-radialnaya-16r32p4d.html
