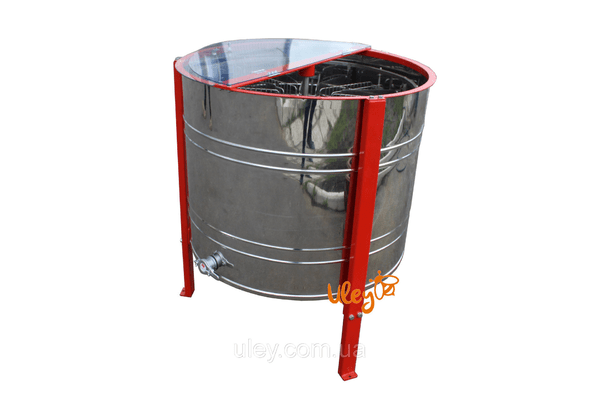

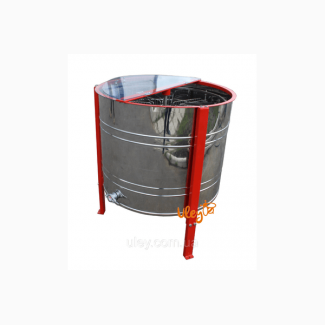

Medogonka 6-frame automatic "Dadan", Dnepropetrovsk region.

The peculiarity ofthis honey hunt is the frame, which is welded from a profile pipe and does not have jumpers in the upper loading part, which is more convenient when loading and unloading frames frame, elastically compensates for it, vibrations are transmitted to a lesser extent to the honey extractor itself, as a result of which it becomes more stable. The honey extractor consists of a tank with lids, a stand, an electric drive, a rotor with cassettes, a rectifier transformer, a control unit and a drain valve. является каркас ротора, сваренный из профильной трубы и не имеющий перемычек в верхней загрузочной части, что более удобно при загрузке-выгрузке рамок. Ротор такой конструкции также лучше воспринимает дисбаланс от неравных по массе рамок, упруго компенсирует его, колебания в меньшей степени передаются на саму медогонку, вследствие чего она становится устойчивей.     Медогонка состоит из бака с крышками, подставки, электропривода, ротора с кассетами, трансформатора-выпрямителя, блока управления и сливного крана.

   The electric drive is a motor-reducer mounted on the shaft of the honey extractor from below. The electric motor is powered by 24 V direct current, which can be supplied from a 220 V alternating current network through a rectifier transformer, which is installed in the lower part of the honey extractor, or from two 12 V batteries connected in series.

     The power of the electric motor is 300 W. Cassettes with frames are automatically set in the non-working position along the radius to the center and turn when the rotor of the honey comb rotates in one or the other direction, depending on the direction of rotation of the rotor.  The mode of operation of the honey extractor is set by the corresponding knobs on the remote control unit. Honeycomb can work in manual or automatic mode.

Attention!: When working from a 220V network, in order to prevent an accidental short circuit and fuse failure, it is necessary to disconnect the wires from the 24V connection terminals (when working from a 220V network, 24V is supplied to these terminals).

Operation of the honey race in manual mode (RO)

      Speed, direction and rotation in this mode are set manually on the remote control unit using the corresponding buttons. After the end of rotation in one of the directions, or pressing the "Stop" button, a 22-second hold is made. After stopping, when the indicator of the "Stop" button lights up, it will be possible to access further work with the remote control - for example, turning on reverse or entering the programming menu.

 Note: when working with a honey extractor, you must follow all the rules for pumping out honey, namely: part of the honey from one side of the comb must be pumped out at slow speeds, the rest - at fast speeds. The direction of rotation of the rotor is forward with the lower bar of the frame.

 As it accumulates,honey is drained through a faucet into a container.

Characteristics of manual mode
Range of revolutions / min.     50....160
Working time, min.              1...5
Direction of rotation      Forward / Backward

Attention!

1. When choosing the optimal manual mode, it is necessary to start with average revolutions (not with maximum).

2. When using a voltage generator as a power source, be sure to include an additional load in the circuit (for example, a light bulb with a power of 100...150 W).

                                                   Basic technical data:

Electric motor supply current, V constant, 24

Electric motor power, W 300

Number of control programs 6+manual mode

Productivity, framework / time (according to the P5 program,
(//tractor-service.com)
with loading-unloading time ~ 1 min) 65 65

Weight not more, kg 65

The volume of honey accumulated in the honey pot between ego

obligatoryplums (the level of the lower spokes of the rotor), l       50

Operation of the honey race in automatic mode.

             For the honey extractor to work in automatic mode, it is necessary to select one of the programs (P1; P2; P3; P4; P5; P6) on the control panel.  The rotation speeds, the number of turns, and the pumping time are programmed at the manufacturer and are considered unchanged for each program. After the end of the rotation in one of the directions, as in the manual mode, a exposure of 22 seconds is made.

                                            Characteristics of automatic mode

Program                        Direction of rotation
Forward Back  Forward Back
      P1 RPM 80 110 110
 Working time (min.) 1.5 1.5 1.5
 P2 RPM 80 130 130
 Working time (min.) 1.5 1.5 1.5
      P3 RPM    80      80    150   150
 Working time (min.)       1    1    1.5   1.5
      P4 RPM    80      110    110
 Working time (min.)      1.5   1.5    1.5
      P5 RPM    110   110
 Working time (min.)       2    2
      P6 RPM    130 130
 Working time (min.)     2    2

Specified in the tables RPM +- 5% at a network voltage of 220v.

        Dimensions, mm: 226
Диаметр бака                   900
Height 1240
Width                             1150
Mass no more, kg           65

The required width of the opening for carrying and removing the honey comb into the room is 1100 mm. Подробнее: https: / / medoray.top / p697973287-medogonka-ramochnaya-avtomaticheskaya.html
