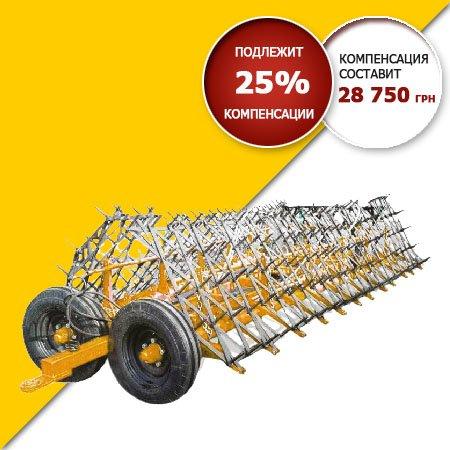

Scepkka boron zubovaya 14m BGZ-14, Kirovohrad region.

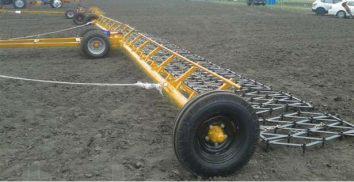

The unit is intended for agrotechnical operations - harrowing. It is used to loosen the soil (remove moisture) with the traditional method of processing and is equipped with 14 toothed harrows.

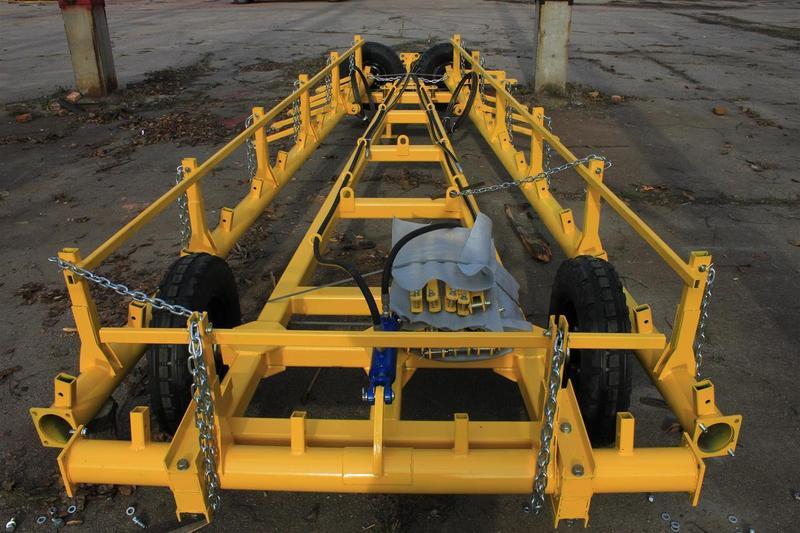

It consists of the following units: a central frame with a hitch to the tractor; lifting (in the transport position) wings connected to the central frame by crossbars on bearings; 4 support wheels withtyres atmospheric pressure 6.5x16; hydraulic system consisting of 2 hydraulic cylinders, high-pressure hoses (RVD) with breakaway couplings.

Advantages

Construction
Metal structures are made of low-carbon steel by semi-automatic welding in an environment of shielding gases. Harrows are attached to the central frame and wings by means of leashes.

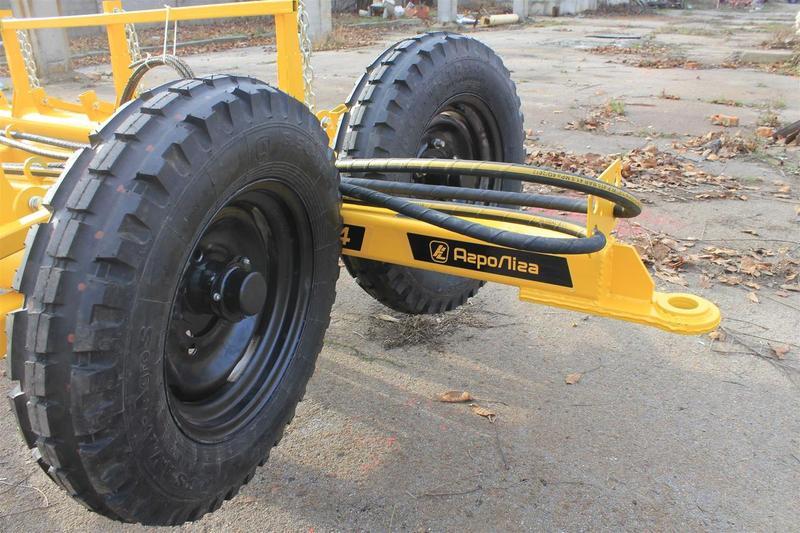

Wheels
Bearingwheels are installed on hubs with radial bearings.

Transportation

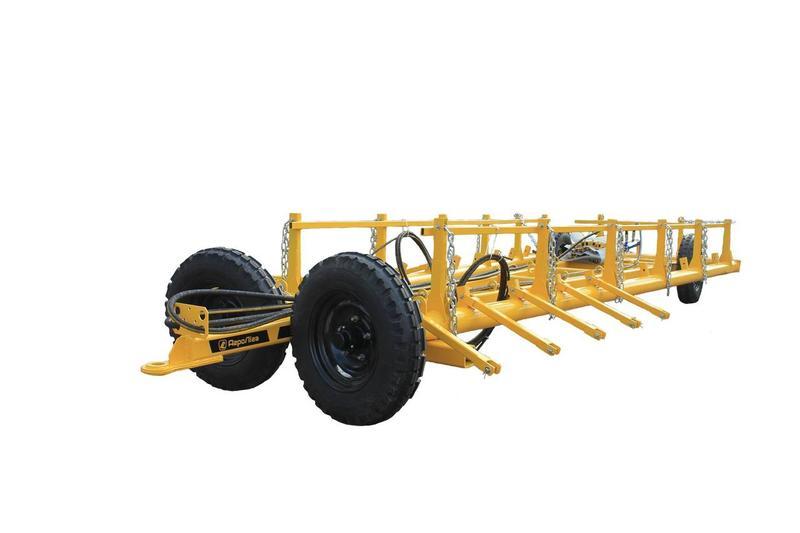

When transporting the unit, the wings are folded in a horizontal position with the harrow laying on the metal structure of the hitch.

Paint
When painting the unit, high-tech equipment and paints from the Italian manufacturer Roberlo are used, which are guaranteed to protect the metal for more than 10 years, which corresponds to ISO quality certificates. With the help of welcome painting equipment, we can maintain a constant quality of painting and the thickness of the paint layer, which guarantees an aesthetic appearance.

Productivity
The main advantage of this unit is its width of grip during processing (14 m in one pass), which significantly affects labor productivity and energy savings, which reduces the cost of processing.
(//tractor-service.com)
Main technical characteristics

Model BG-14
Trailer type
Productivity ha/hour 9
Working speed, no more than km/h 9
Transport speed, no more than 20 km/h Working width of capture, m 14
Рабочая ширина захвата, м 14
Processing depth, cm:
- minimum 8
- maximum 8
Number of sections of tooth-spring harrows, pcs.
The number of sections of tooth harrows, pcs. 14
The total amount of tooth springs, pcs.
Dimensions, m:
- in working position (L/W/H) 7.8x14x0.8
- in transport position 6.8х3.5х1.4
Unit mass, kg 1650
Tractor power, not less, hp so 80
A wide range of planters, cultivators, harrows, plows, rollers and shredders from the manufacturer. Compensation from the state budget for all models. Possible delivery and special conditions.
