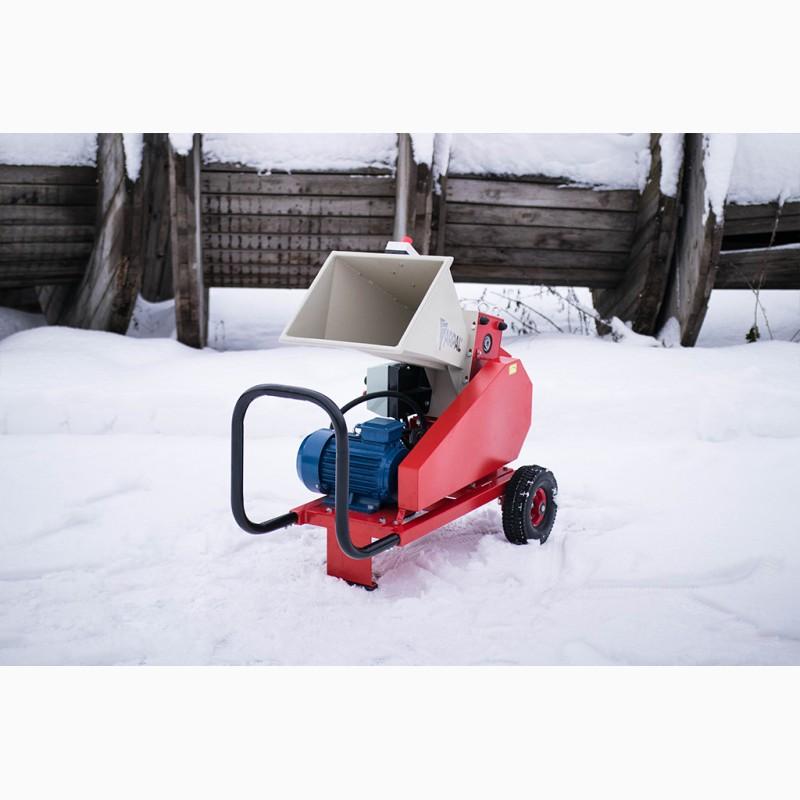

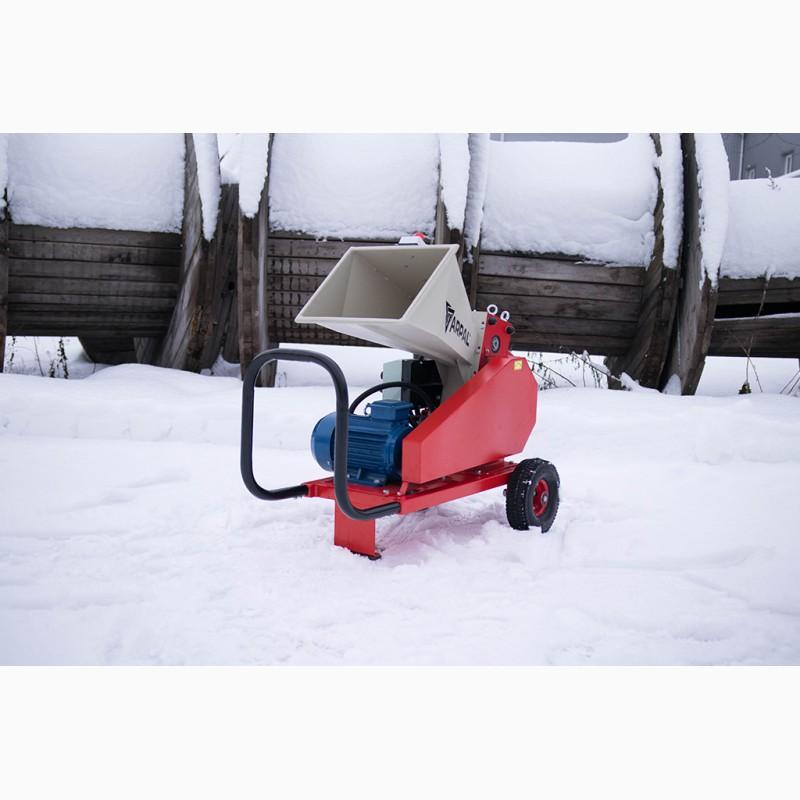

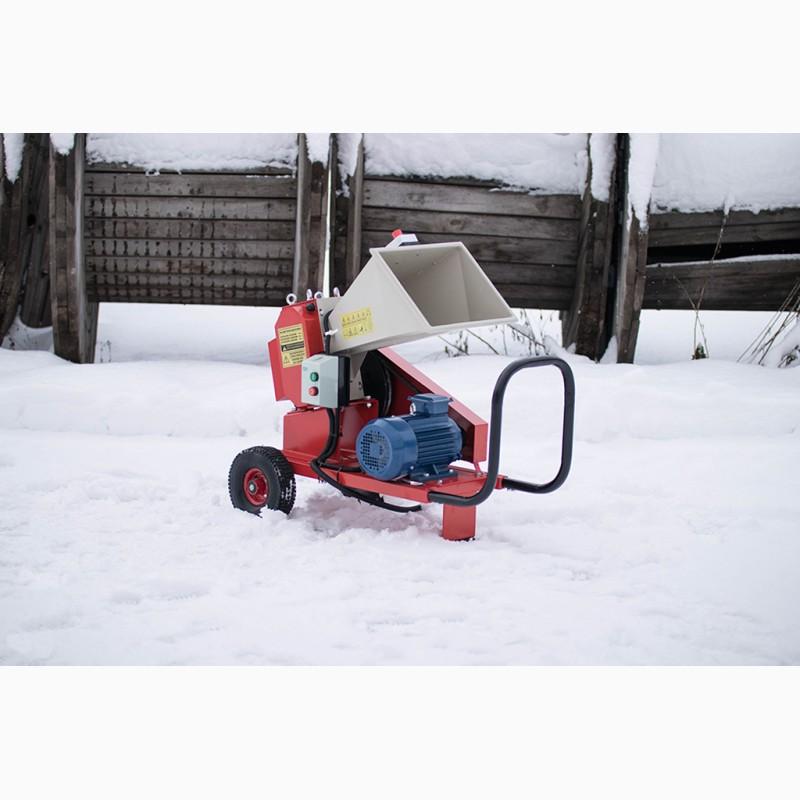

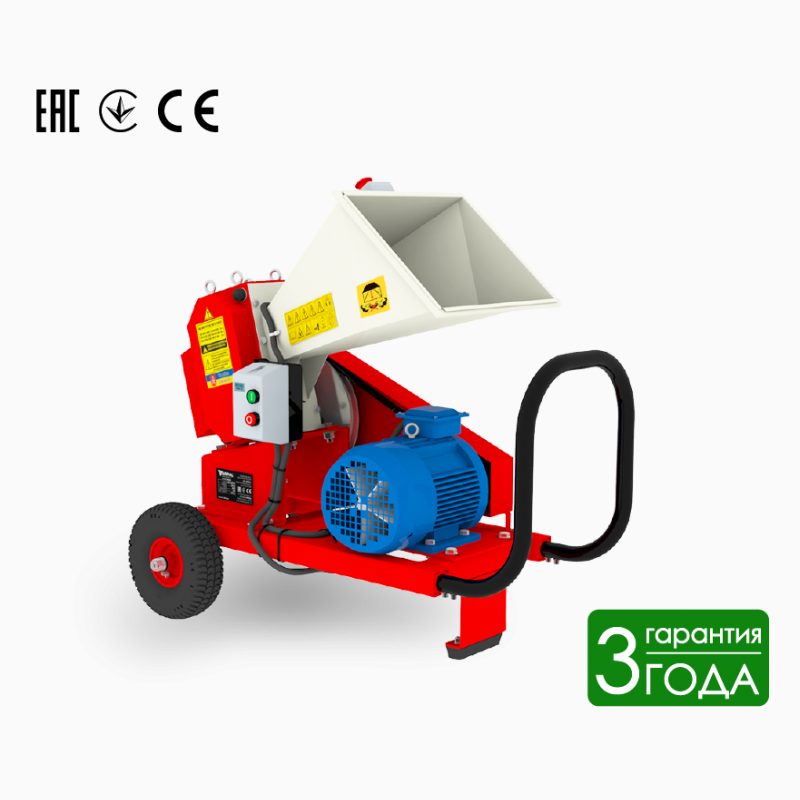

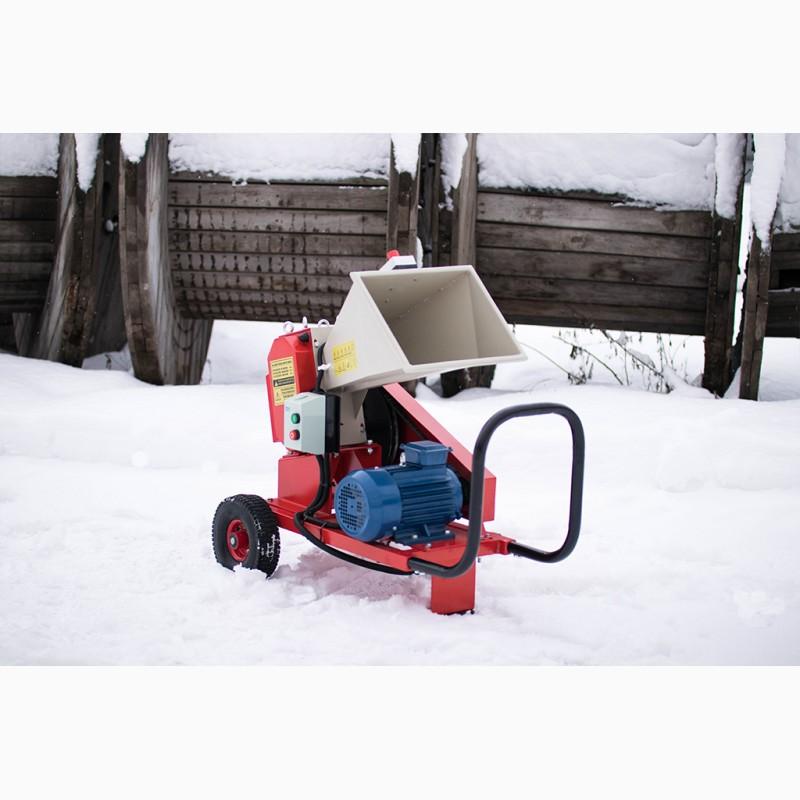

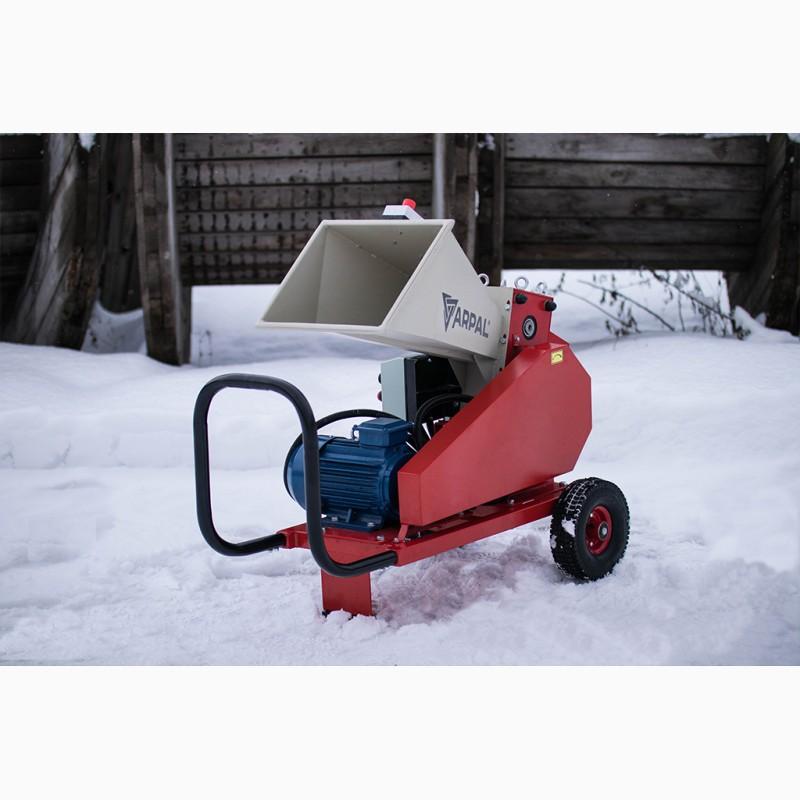

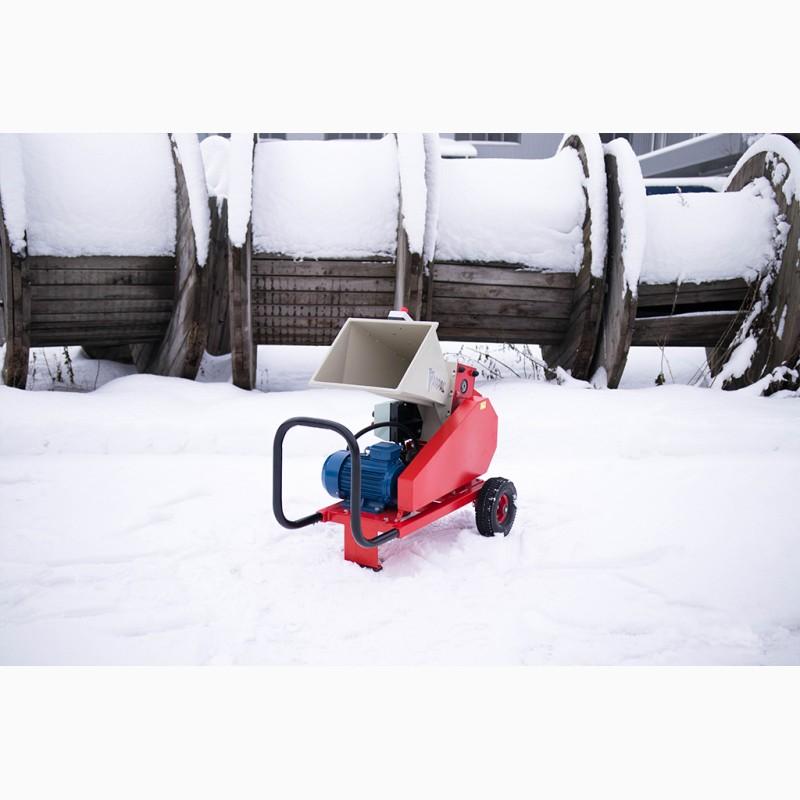

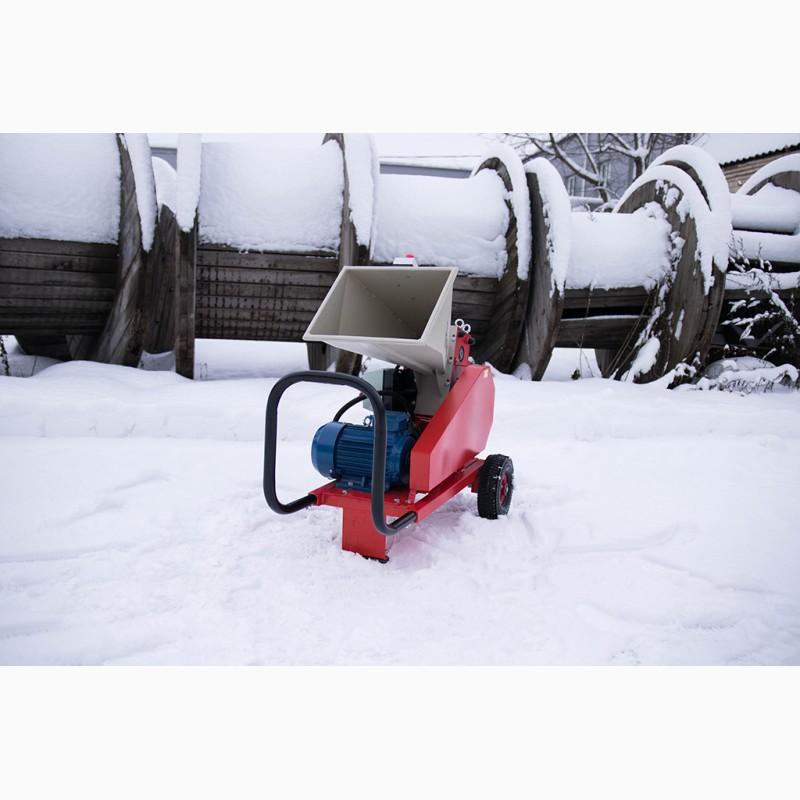

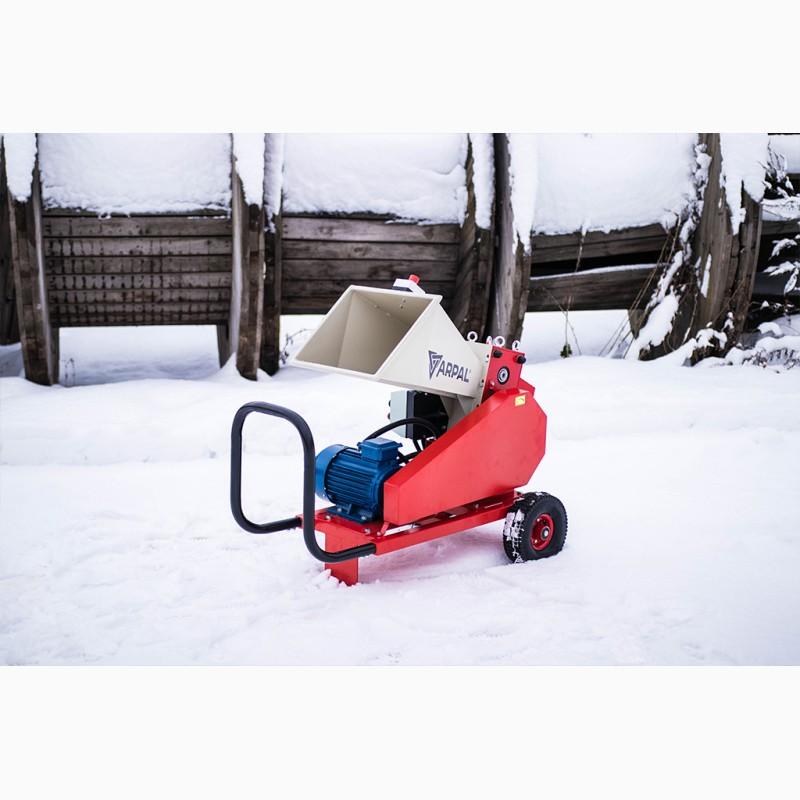

ARPAL AM-60E branch shredder, branch crusher, branch shredder, Vinnytsia region.

CHARACTERISTICS OF AM-60E BRANCH Chopper:

DIMENSIONS AND MASS CHARACTERISTICS
Length: 1070 mm
Width: 635 mm
Height: 935 mm
Weight: 115 kg

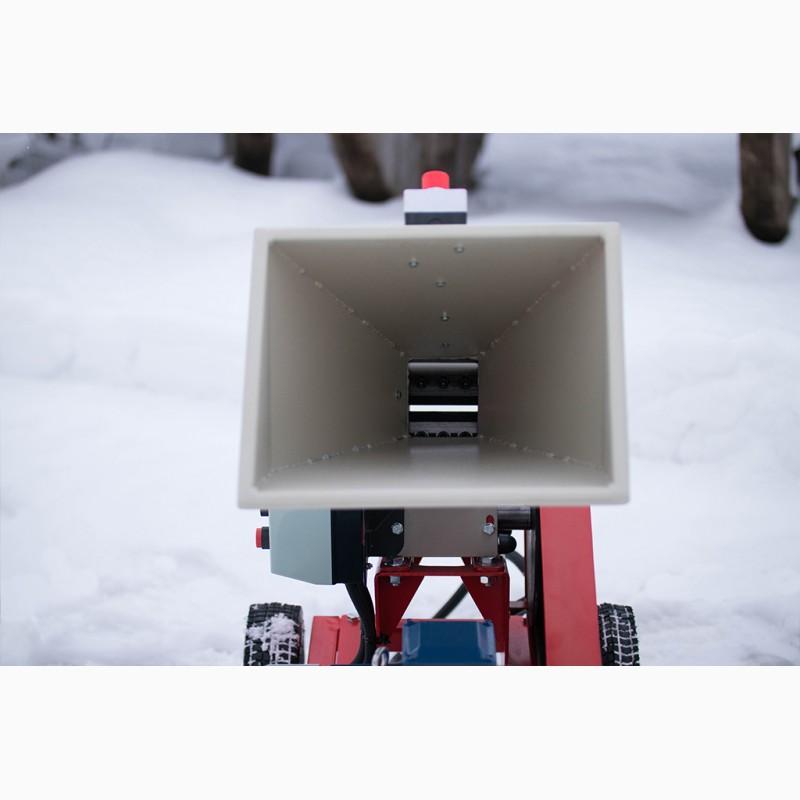

Dimensions of the entrance hole: 90x105 mm

MAIN WORKING CHARACTERISTICS
Max. productivity: 2 m3/hour
Max. diameter of soft wood: 60 mm
Max. diameter of solid wood: 50 mm
The length of the obtained workpiece: 50...80 mm.
Number of knives: 6 pcs.
Max. revolutions on working knives: 360 rpm

ENGINE CHARACTERISTICS(//tractor-service.com)
Engine power: 4 kW
Max. revolutions on the engine shaft: 3600 rpm
Power supply voltage: 380 V

The AM-60E branch shredder is intended for processing and disposal by cutting branches, rails, slats, slats and other wood waste. The branch shredder turns the raw material into pieces 5...80 mm long, this size is not adjustable and depends on the diameter (thickness) of the raw material. The AM-60E branch chopper is capable of cutting branches with a diameter of up to 6 cm, depending on the humidity and type of tree. Chopped branches are ideal fuel for pyrolysis and solid fuel boilers, fireplaces, furnaces and other heating devices, as well as for the production of charcoal.

The productivity of the AM-60E branch shredder is a maximum of 2 cubic meters of finished product during operation. Productivity directly depends on the quality of preparation of raw materials and the number of personnel involved in the work.

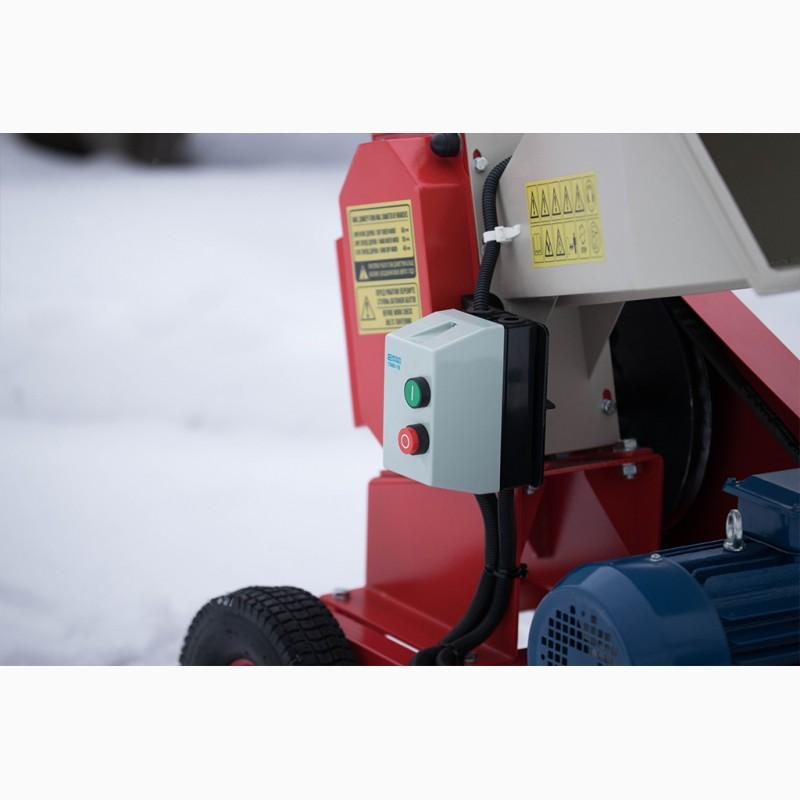

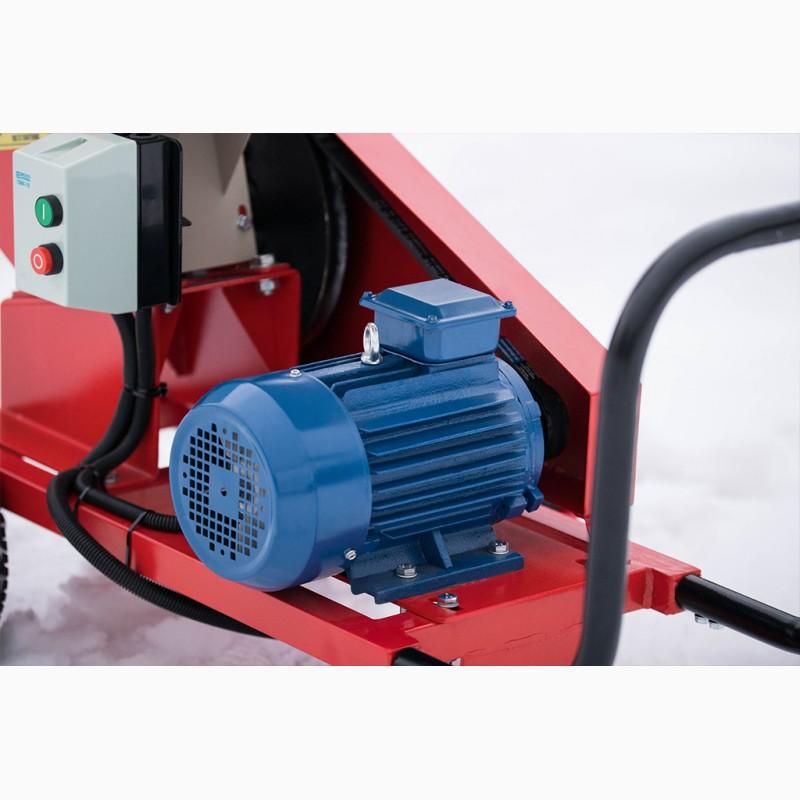

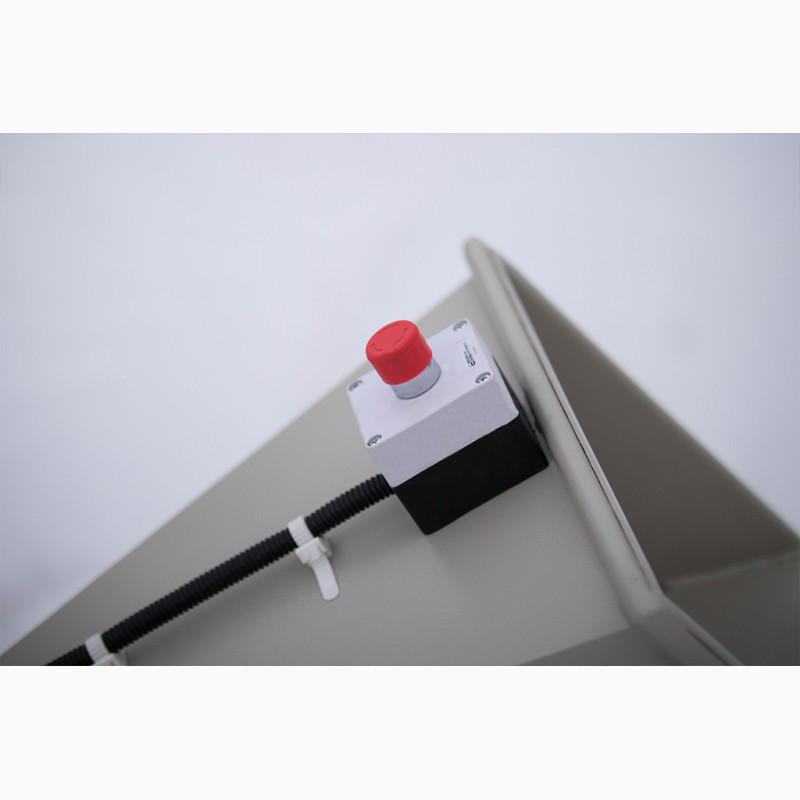

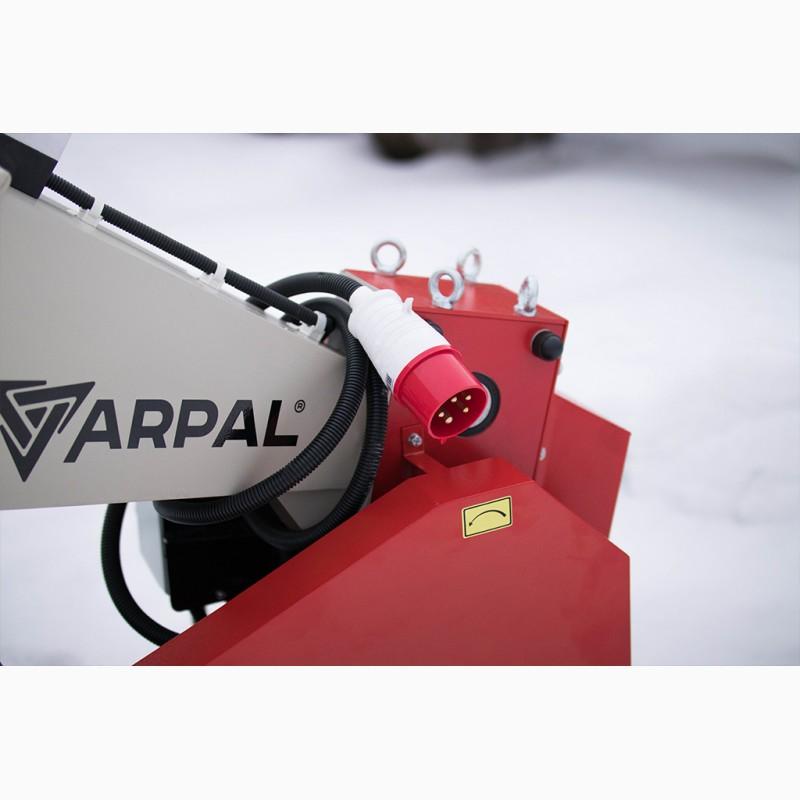

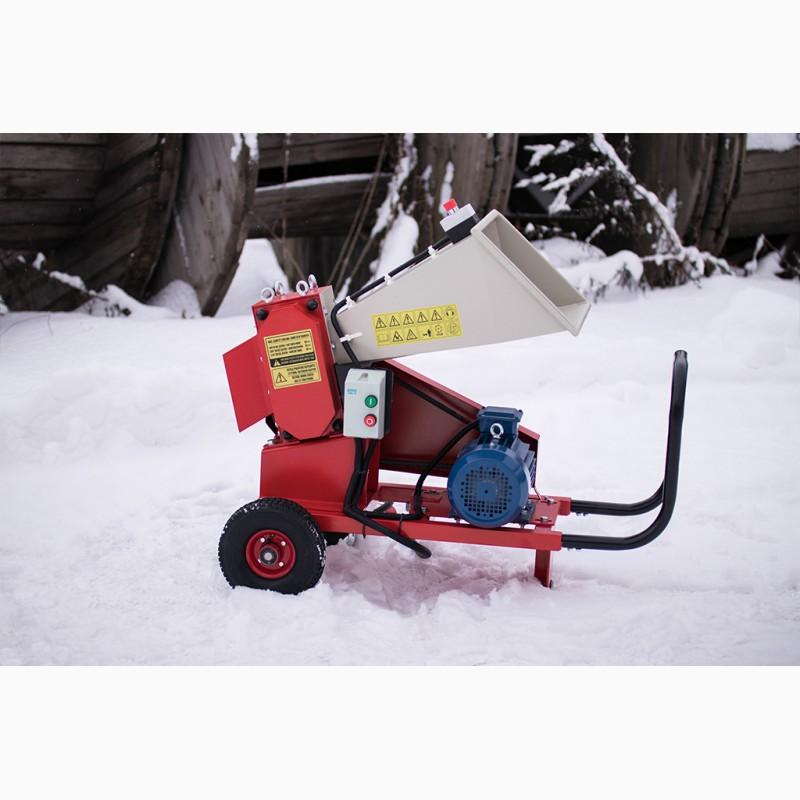

The AM-60E branch chopper is equipped with a 4 kW electric motor with a 380 V power supply. An engine control panel is installed on the shredder, which has a system to protect the engine from overloads. Installing an electric motor allows you touse a chopper branches indoors without fear of harmful exhaust gases from gasoline engines.

Knives are the working element of the branch chopper. 6 knives are installed on the AM-60E branch chopper, the knives are made of 40X steel, have a double sharpening angle and must undergo a heat treatment process on a modern TVC installation. The knives of the branch chopper are inserted into the milled groove of the working shaft, this technology allows you to significantly reduce the load on the fastening bolts of the knives.

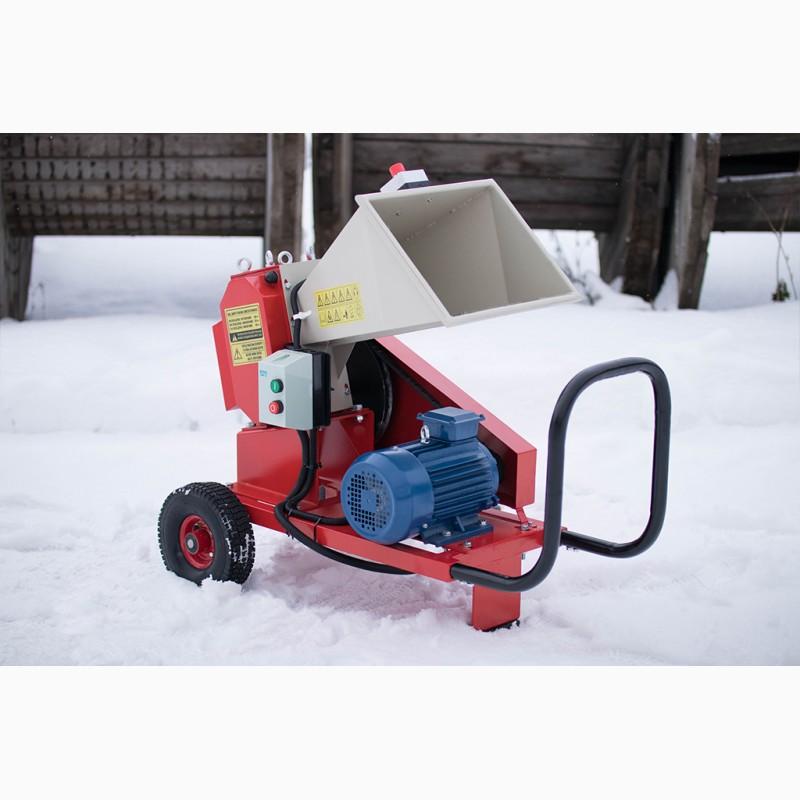

The branch chopper AM-60E is installed on a rigid frame made of a profile pipe, which is equipped withwheels for the convenience of moving the branch chopper around the territory. Two pneumaticwheels are installed on the frame.

The branch shredder AM-60E is completely produced at our enterprise. We control the quality of all stages of our production, all seating surfaces undergo mandatory grinding. Quality control of welded seams is carried out. Before painting, all structures are cleaned. The grinder is covered with powder paint, which significantly extends the service life of the structures.

We are confident in our products, that's why we provide a 36-month warranty for the AM-60E branch chopper. In addition, as a manufacturer, we provide both warranty and post-warranty maintenance of the AM-60E branch shredder.

By purchasing a branch shredder from us, you will receive a reliable assistant on the way to your energy independence!
