Used GPD MWM, 2000 kW, 2018 in Kyiv

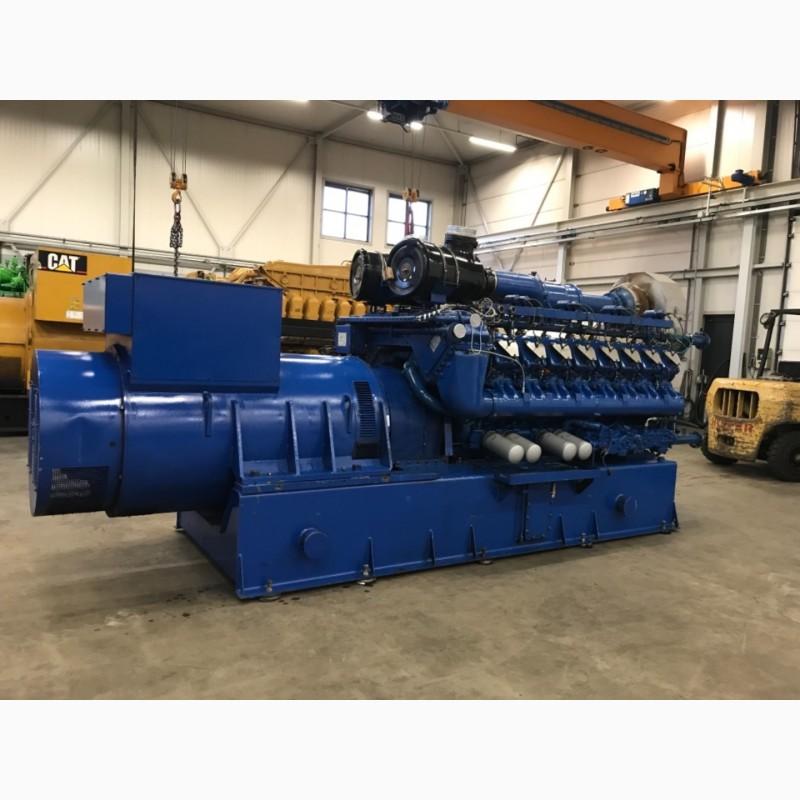

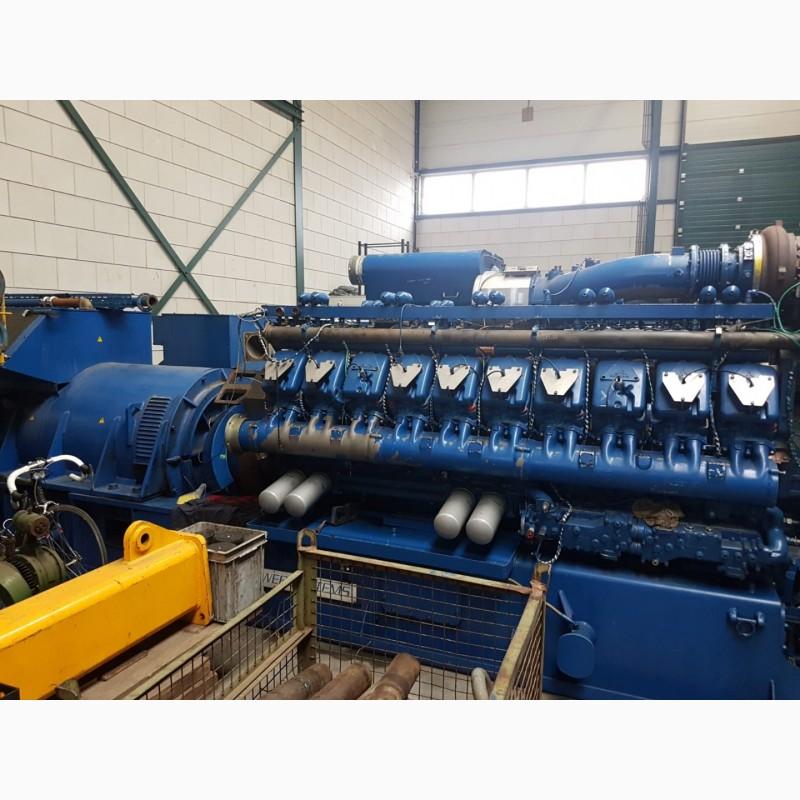

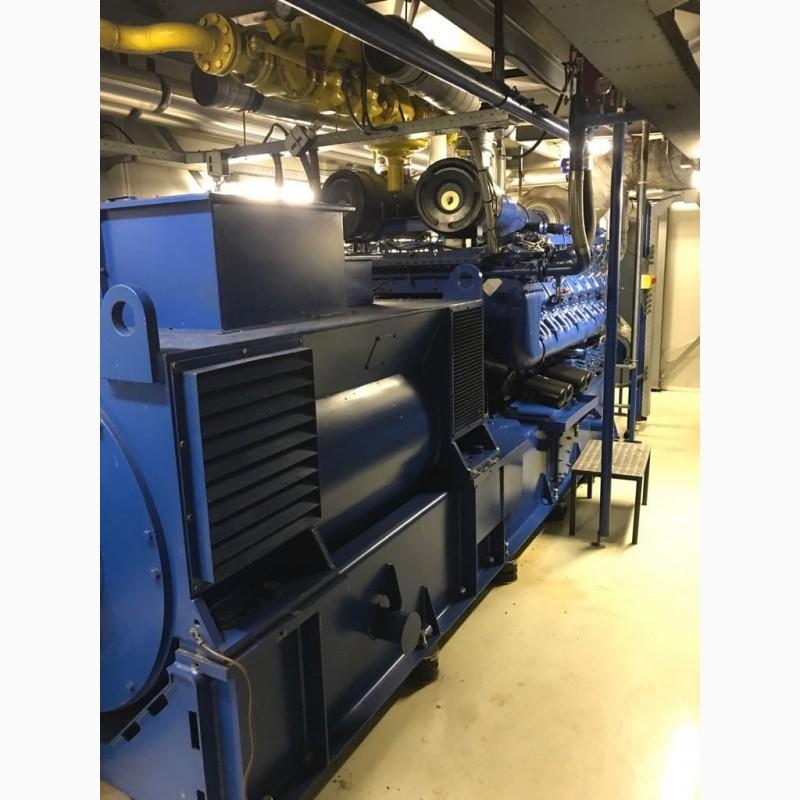

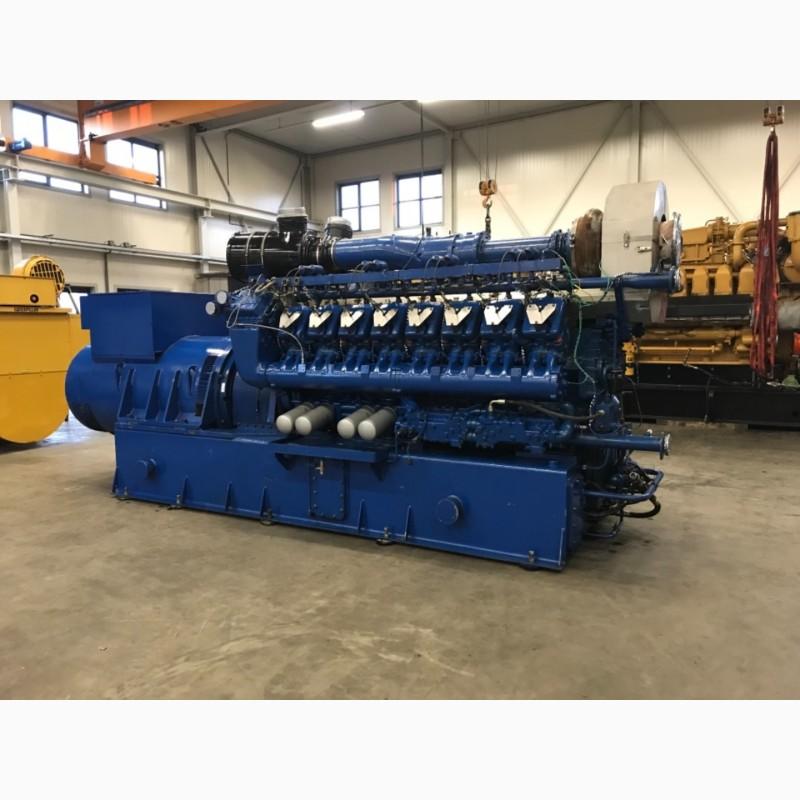

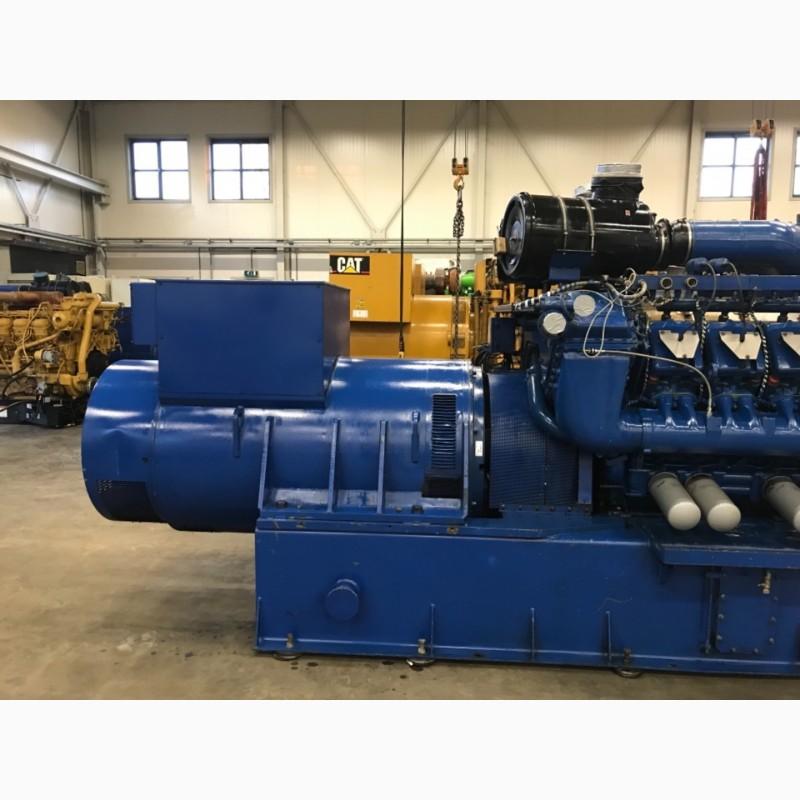

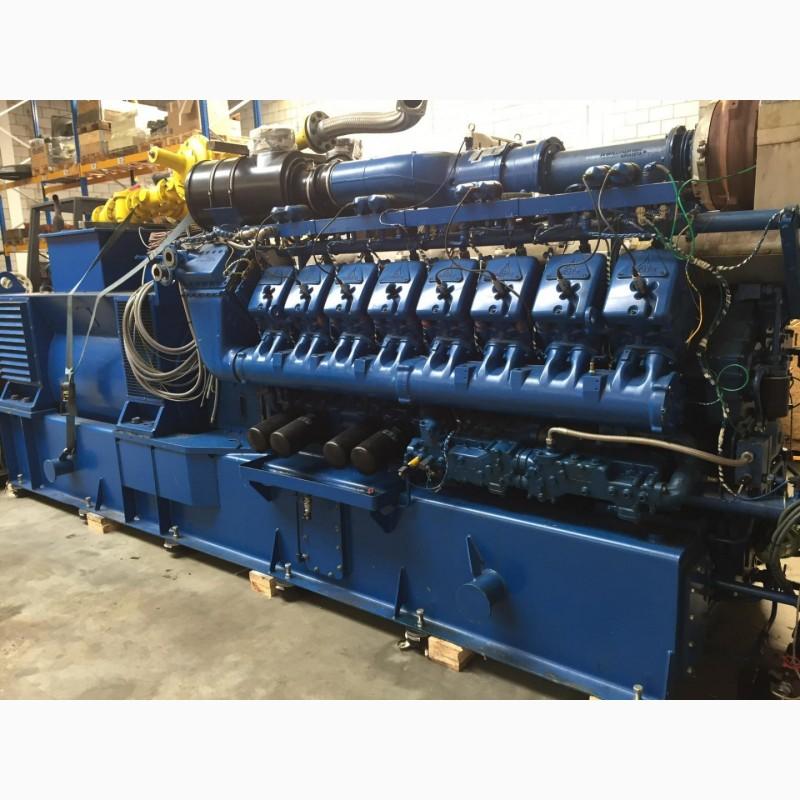

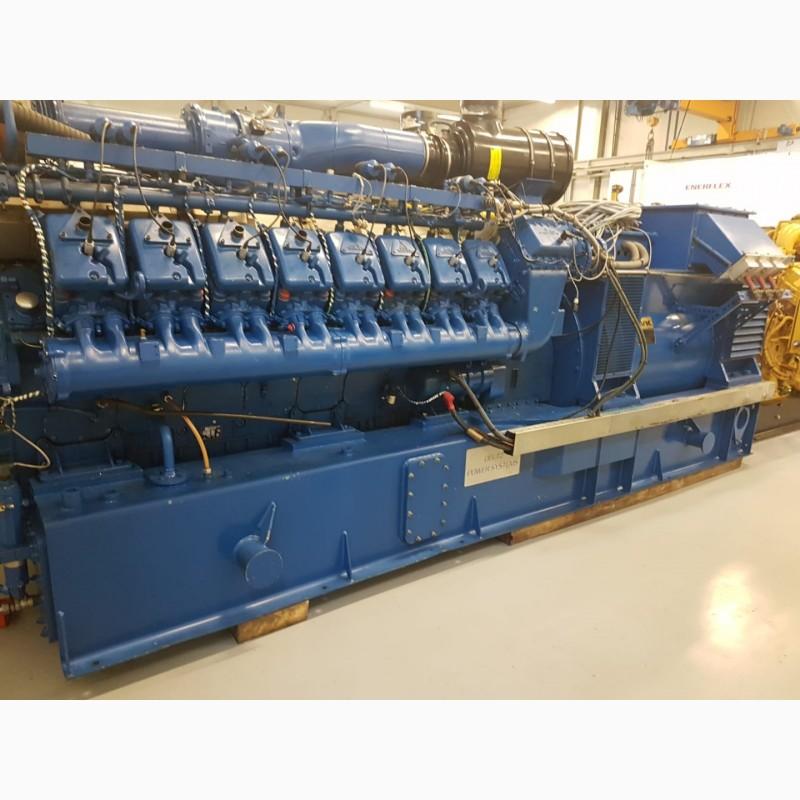

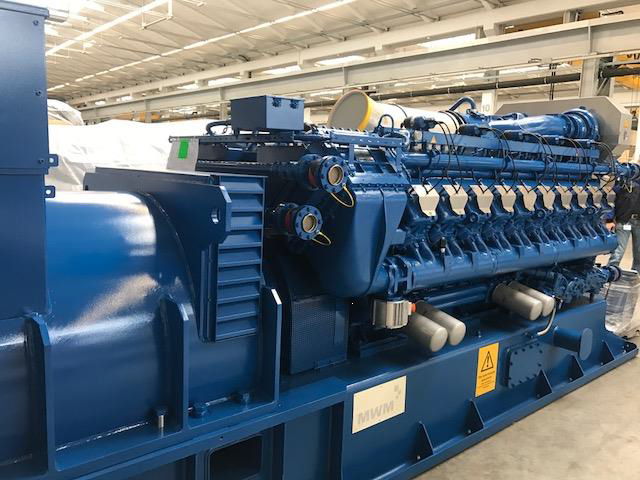

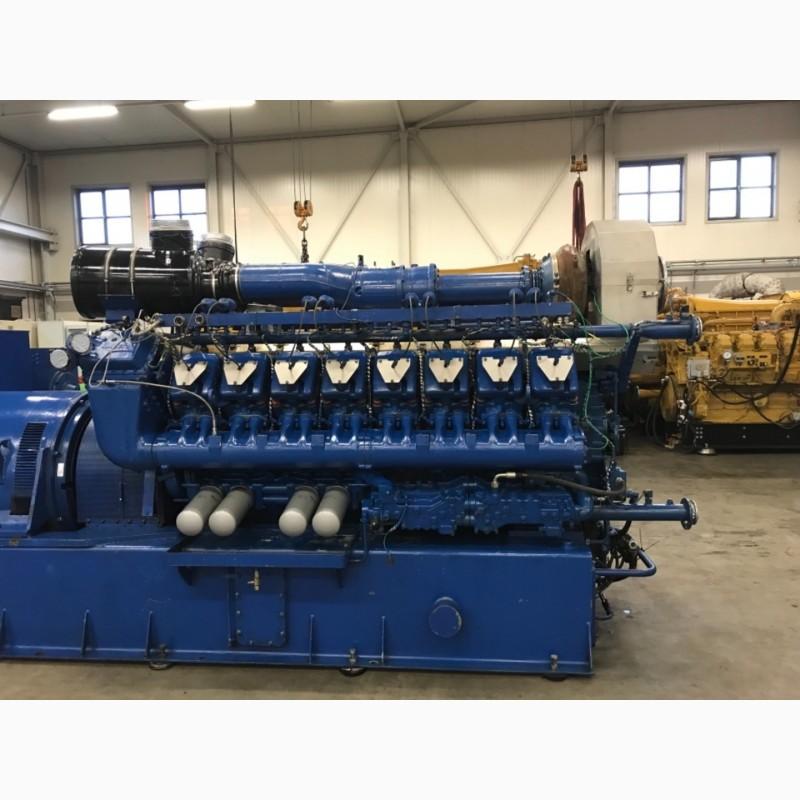

Second-hand MWM TCG 2020 V20, 2,000 kW, 2018, working hours - 0 hours.

Technical characteristics of the gas piston power plant:

Engine Manufacturer MWM

Engine type TCG 2020 V20

Power 2,000 KW

RPM 1500

Fuel Natural Gas

Generator model Marelli MJH 630 LA4

Hz 50

Year of manufacture 2018

Working hours - 0 (zero)

Included:

Engine
Generator
Gas pipeline
Control panel

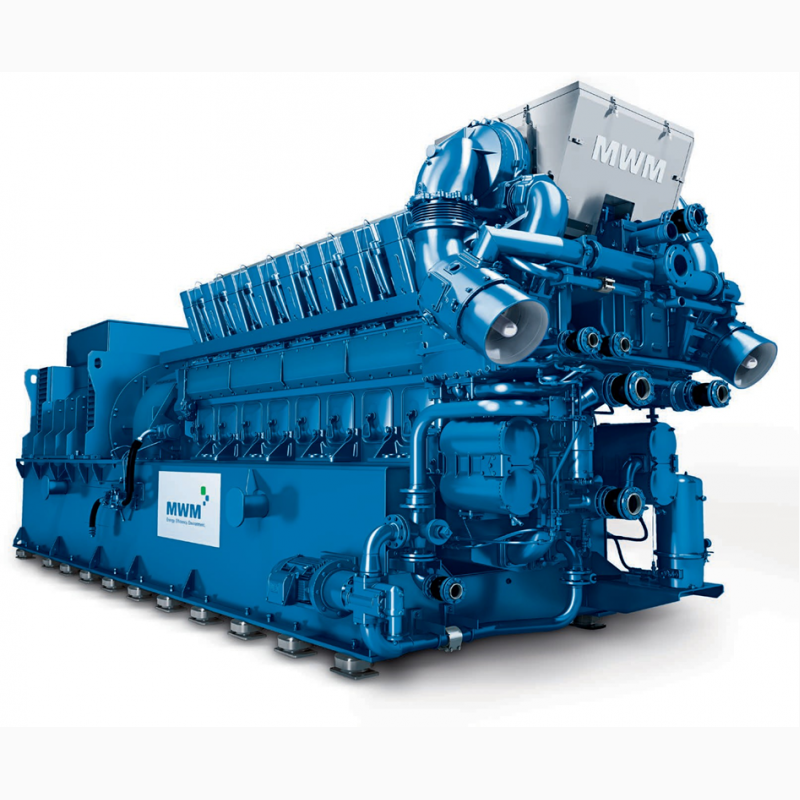

MWM TCG 2020 V20, 2 MW.

Technical data, fuel: natural gas

No. <500.0 mg/nm3 *

The minimum methane number is MN 8012! Dry exhaust pipeline

Engine type TSG 2020 V20

Power 2056 kW

Rotation speed rpm. 1500

Average effective pressure bar 18.6

Exhaust gas temperature approx. °С 424(//tractor-service.com)

The mass of exhaust gases in a wet state is approx. kg 10741

The amount of air for fuel combustion is approx. kg/h 10402

Supply air temperature, min./opt. С 20/25

The amount of incoming air is approx. kg/h 49028

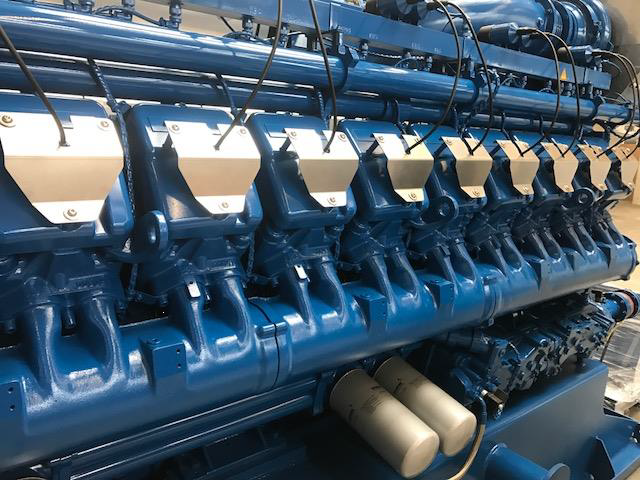

Engine parameters

Cylinder diameter/piston stroke mm 170/195

Working volume dmZ 8 88.5

Compression ratio 13.5:1

Average piston speed m/s 9.8

Volume of lubricatingoil dm3 300

Average oil consumption at full load ° g/kW-h 0.20

Electric generator

Generator efficiency * % 97.3

Energy balance

Electric power at the terminals of the generator * kW 2000

Heat transfer power of the cooling jacket +8% kW 978

Heat transfer power of the 2nd stage intercooler" +8% kW 172

Thermal radiation of the engine kW 70

Thermal radiation of an electric generator kW 55

Fuel consumption power +5% kW 4581

Electrical efficiency % 43.7

Thermal efficiency % 43.3

Total efficiency % 87.0
