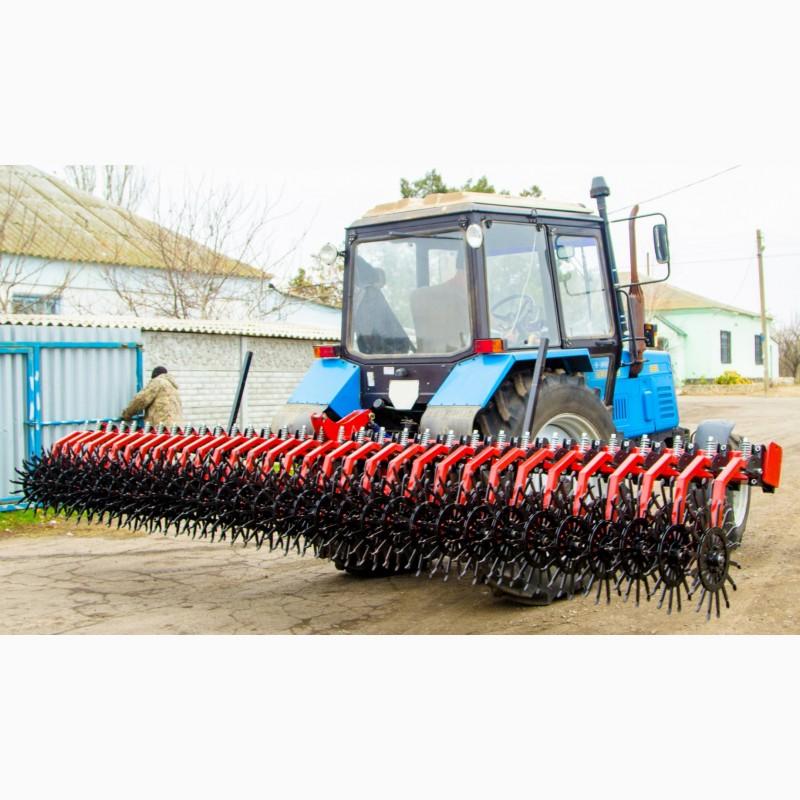

Harrow-hoe rotary grip 6 meters, Zaporizhzhya region.

Rotary harrow a hybrid of a cultivator and adental harrow a harrow that is intended for pre-emergence and post-emergence harrowing (continuous and inter-row processing) of crops of any agricultural field crops (cereal, plowed, technical), on any type of soil, including under difficult conditions (thick and strong soil crust, a large amount of plant residues, stubble processing, etc.).

Target of Harrow :
• Surface loosening and soil aeration - micro-explosion;
• Destruction of filamentous weed seedlings.

The use of a harrow is effective for spring harrowing of winter wheat.
During vegetation treatments, it allows to significantly influence the accelerated and full-fledged development of cultivated plants.
The working organs of the harrow create an ideal background for the initial development of the root system of plants, they mulch well the upper layer of the soil, destroying the soil crust, thus, preserving moisture, they destroy the filamentous roots of weeds up to 100% at speeds of up to 20 km/h. This makes it possible to switch to herbicide-free technology. When a monolithic soil crust appears on the early seedlings of cultivated plants, for example, corn at the stage of 2-3 leaves, when the use of tooth harrows is impossible, the efficiency of harrow use increases dramatically.
(//tractor-service.com)
Advantages of our harrow:
- working bodies forged from 65G steel, hardened and tempered;
- pike-shaped fingers, made in the shape of a spoon;
- on each section there are 2 sunnies dressed on hubs;
- 2 large bearings in hubs, two-row closed type with anthers, roller.
- axles made of 40X steel;
- solnyshka riveted;
- beam 140*140, wall 8;
- weight more than 1100 kg.;
- bolts, strength 8.8;
- the springs work for compression, the compression force is 75 kg each.
