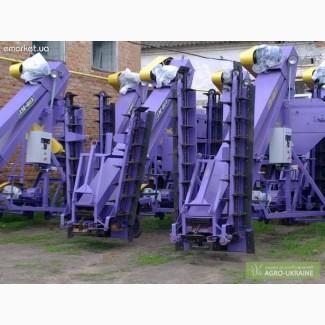

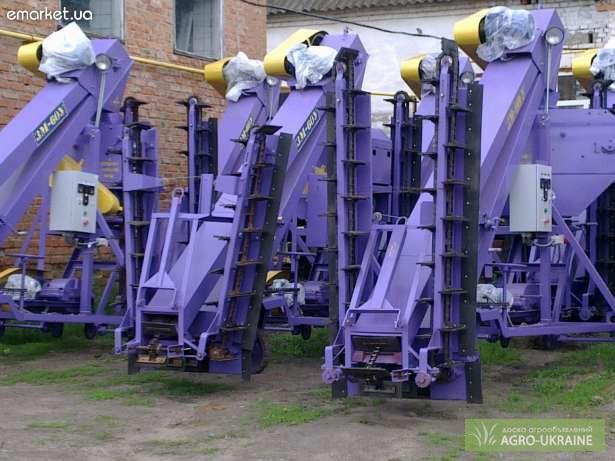

Grain throwers ZM-60, ZM-60A, ZM-60M, ZPS-100, Kherson region.

Grain throwers ZM-60, ZM-60A, ZM-60M, ZPS-100
The ZM-60, ZM-60A, ZPS-100 grain thrower performs the following technological operations: loading and unloading of grain fromgrain warehouses, loading of grain into vehicles, mechanical shoveling of grain on open platforms and formation of grain riots, unfolding of grain from the riot for drying on the platforms and forming it into a riot after drying.

The grain thrower can throw grain to a distance of up to 10 meters and ensure a storage height of up to 4 meters. A feature of the ZM-60A is the ability to turn the trimmer by 90 degrees to both sides from the longitudinal axis of the frame, forming bunts with one ridge. на 90 градусов в обе стороны от продольной оси рамы, формирование бунтов с одним гребнем.

TECHNICAL CHARACTERISTICS
Self-propelled type
Total power, no more, kW 9.5
Productivity for wheat at a humidity of no more than 20%, t/h 60
Overall dimensions in the working position without rotation of the unloading conveyor, mm :
length 6250
width 4700
height 3100(//tractor-service.com)
The weight of the machine in complete completeness, kg 1300

The ZM-60M self-propelled grain thrower (updated) is an analogue of the ZM-60A with refinements and changes that made it possible to make the most of the capabilities of the already proven unit.

Advantages of ZM-60M
Improvements and changes Characteristics
1. An auxiliary gear reducer is installed using the differential principle 1) It reduces the load on the main gear reducer and extends its service life;
2) improves the grain loader's maneuverability and driving qualities when moving and in working condition;
3) relieves the load on the front gear (steeringwheel)
2. Changes have been made to the design of the trimmer coil 1) The range of grain flight is increased.
2) Grain flight from 12m to 20m.
3. The front gear is modernized (a support bearing is installed) 1) The inclined camera is raised or lowered without much effort.
4. Increased clearance of the wheel arch 1 ) Increases the height of the vehicle loading.
5. Modernized control panel (electric box) 1) It allows to switch gears with the help of a push button, which extends the service life of the gear reducer;
