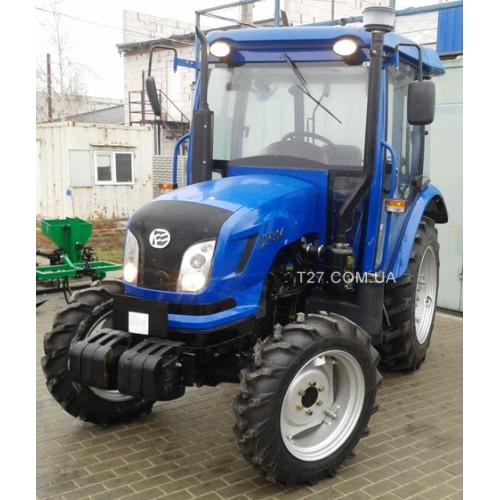

Tractor Dongfeng-504 (Dongfeng-504) with cab, Kyiv region.

Dongfeng-504 is a novelty in the Dongfeng brand line, a stylish model with powerful characteristics and performance. A durable and practical tractor allows you to perform agricultural tasks of various degrees of complexity. The equipment includes a reverse four-range gearbox and a three-range transmission (12 forward and 12 reverse), which significantly improves the convenience of driving the tractor, increases the maneuverability and technical capabilities of the machine.

The gearbox is controlled by two ergonomically positioned levers. Mechanically connected front drive provides maximum traction and power transmission. The swinging front axle contributes to smooth driving of the tractor on uneven surfaces. The steering (with a turning angle of 45 degrees) is smooth and comfortable thanks to a separatepump, which serves the operation of the double-sided cylinder.Dismountable discs front and rearwheels allow changing the track width of the front and rear axles in a wide range. The system of forced lowering of the rear hitch is present.

• Power steering;

• hydraulic distributor with two hydrocouples;

• two-disc clutch;

• rear differential lock;

• two-speed PTO;

• front and rear reinforced towing device with height adjustment;(//tractor-service.com)

• separate brake pedals;

• parking brake;

• trailer socket;

• a glow plug on the intake manifold.

The modern, spacious 6-post cabin provides maximum visibility (360 degrees). The design provides a non-removable floor from the frame, which increases the tightness and safety of work in the cabin. The cabin is installed on 4 rubber vibration isolators and is equipped with a heating system integrated into the roof. The ventilation system with 6 nozzles optimally distributes air flows and regulates the internal temperature. Natural ventilation of the cabin is carried out through the roof hatch, side and rear opening windows. The rear window in the open position is fixed by gas shock absorbers and is used, if necessary, as an emergency exit.

For convenient access to the driver's seat on both sides of the cabin, large self-cleaning steps, wide-opening doors, handrails on the cabin pillars and doors, a flat construction of the floor of the working area and a wide passage are designed. The arrangement of the combined instrument panel and control devices differs in ergonomics and convenience. There are front viewing windows. Suspension brake and clutch pedals (with stops) prevent the operator's feet from slipping during operation.

The seat is equipped with a safety belt, has armrests, a conical back, improved lateral support, multifunctional ventilation channels. It is adjustable in the longitudinal (transverse) direction, can be adjusted according to the weight and height of the operator, is characterized by the optimal angle of the pillow - it creates maximum comfort in control.

The powerful lighting system consists of: headlights with a separate function of high and low beam (lenses are installed on the low beam lamps to increase the brightness effect), huge three-section lanterns with red and orange diffusers and red reflectors, four oval-shaped working lights that provide high-quality visibility at night. Duplicating front turns and dimensions are located separately on the cabin. The stylish and modern design of the tractor's optics is emphasized by the chrome finish of the headlights. Two spherical rear-view mirrors support the necessary level of safety.
