Mini-tractor Xingtai-224 (Syntai-224) 3-cylinder with amplifier, Kiev region.

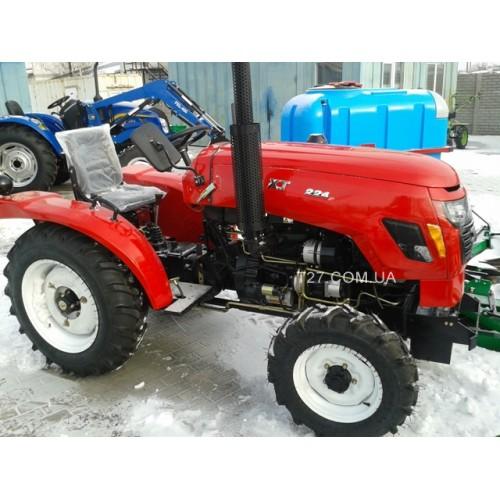

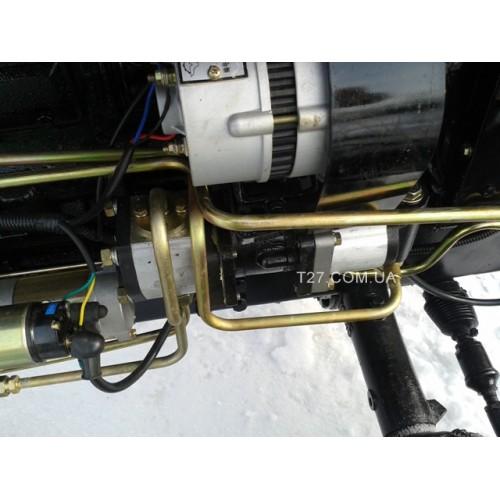

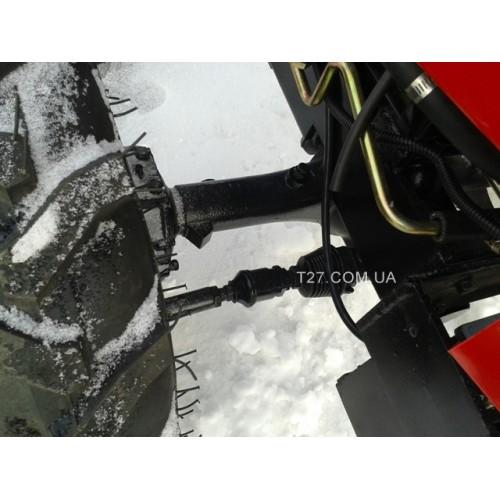

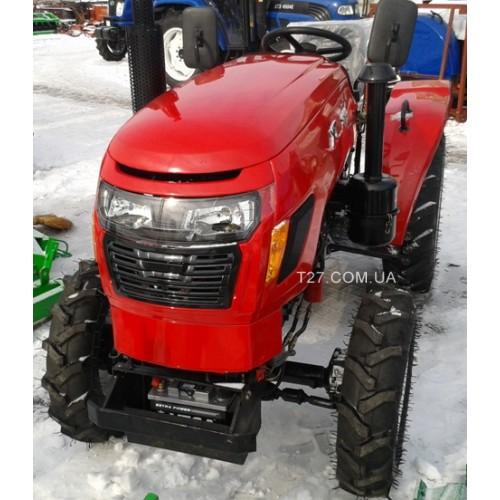

The defining characteristics of the Sintai-224 mini-tractor with a three-cylinder diesel engine are the presence of all-wheel drive, power steering (a fully hydraulic steering gear is installed) and two hydraulic pumps. The design of the model is represented by a modern appearance of the exterior cladding, which attracts with updated dynamic forms. A distinctive feature is long rear wingswheels, high-quality paintwork and updated modern optics. The hood (alligator type) easily rises forward, has an adjustable limiter.

One control lever for the gearbox and transmission (6 forward gears with a wide range of speeds and 2 reverse gears). Engine revolutions can be regulated and fixed with the help of a hand lever.

Drive from the engine
direct connection of the engine with the gearbox through the clutch.
Battery type, A/h
60
Piston stroke, mm
90
Cylinder diameter, mm
80
Engine lubricant
oilpump
Starting the engine
electric starter
Engine mass, kg
230
Protection from dust and various foreign objects entering the engine is provided - a metal mesh in front of the radiator. High-quality air cleaning is provided by a three-stage air filter, which combines inertial and filtering methods of cleaning.(//tractor-service.com)

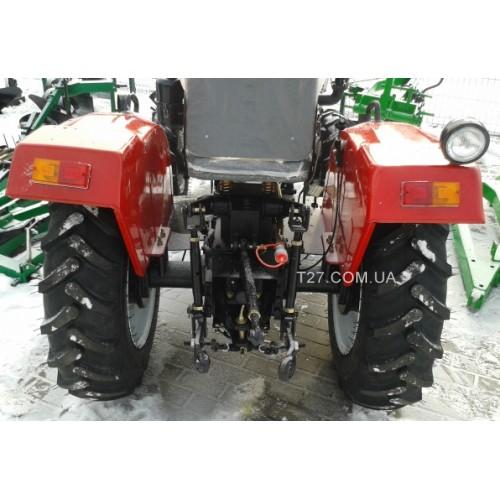

• Rear axle lock;

• mass switch;

• PTO 540 rpm.

• loads of rear wheels;

• coupling device for a trailer;

• hydraulic outlet with quick-release coupling;

• separate brake pedals with parking function;

• pre-chamber heater for heating the power supply system.

Ergonomics and comfort of the operator's workplace are provided by the instrument panel (oil pressure indicators, coolant temperature, ammeter), height-adjustable spring-loaded seat, extended footrest, handles on the rear fenders. There is a sound signal.

Headlights with low and high beams, turn signals, gauges, rear working light, two-section lights with red and orange diffusers and reflectors, two spherical rear-view mirrors make up the light system and create reliable conditions for convenience and safety in работе.
