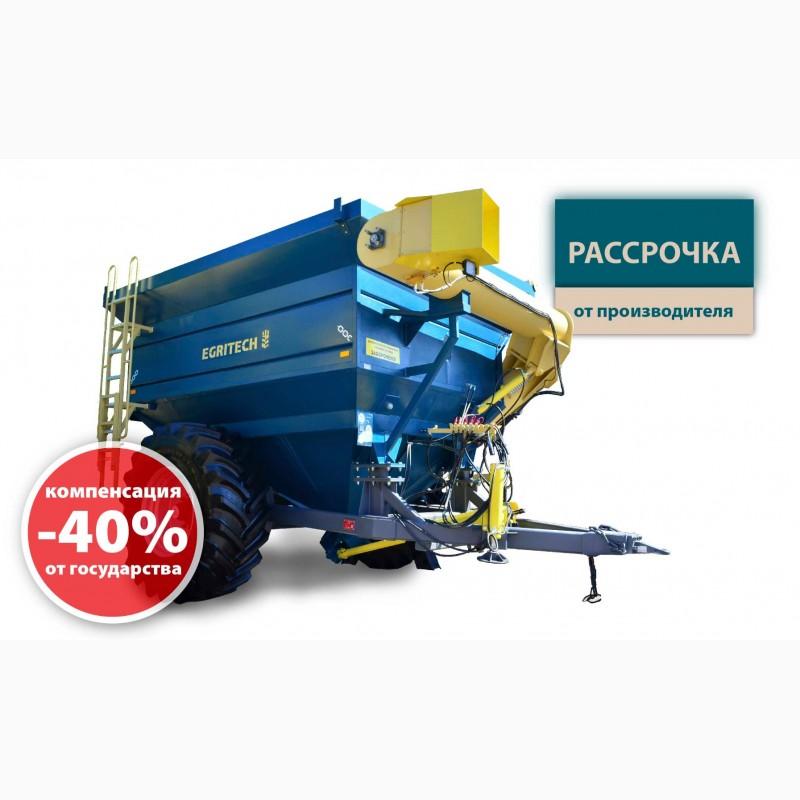

Bunker-accumulator transhipment bnp-20, Chernihiv region.

BNP-20 transshipment storage hopper is designed for transportation of bulk materials (grain, mineral fertilizers, etc.), their transshipment into other vehicles. The hopper is aggregated with tractors of the traction class from 4.0, which are equipped with a pneumatic or hydraulic system to drive the hopper braking system, and also have electrical and hydraulic connections.

Basic parameters, completeness and dimensions of the bunker in the basic configuration: BNP-20

1. Rigid suspension (axle "ADR", Italy) 1 (one) pc.;
2.Tyres size 24.5*32 (load 9 tons);
3.Wheels wild, steel, DW21B;
4. Wheel track 3246 mm.; ground clearance 375 mm;
5. The maximum speed of movement is 30 km/h;
6. Two anti-rollback supports;
7. The braking system is pneumatic;
8. Brake mechanisms - drum, with internal pads;
9. Body volume V-22m3; carrying capacity 17 tons;
10. Body unloading system - screw;
11. Number of screws - one, vertical;
12. Auger Ø 400 mm. (productivity 3t/min., unloading height 4.3m);
13. The electrical system is single-wire, 12 V, powered by the tractor;
14. The hydraulic system of the bunker works from the hydraulic system of the tractor-tractor;
15. Interchangeable towing ring Ø40,50,72,90 mm. ("Sharmuller", Austria);
16. Hydraulic drawbar support;
17. Drive reducer (manufactured by "Bondioliand Pavezzi", Italy);
18. The screw visor is hydraulically adjustable;
19. Solid-rolled screw spiral (thickness 10/5 mm. (producer "Technofer", Italy)
20. Service ladder;
21. Mechanism for cleaning the horizontal auger (three hatches);(//tractor-service.com)
22. Cardan shaft with a cut bolt ("Bondioliand Pavezzi", Italy);
23. Inspection window for visual inspection of grain level in the hopper;
24. Headlight for lighting the unloading auger;
25. Waterproof awning system with folding/unfolding system 26. Overall dimensions LxWxH – 5855x3980x3800mm.

Additional options:

• sleeve Ø 300 mm PVC (for loading planters);
• weighing system with data transfer to the printer
• replaceable towing ring Ø40 (Scharmuller Austria)
• application of the customer's logo (the "EPRITECH" TM sign remains)
• painting the bunker body in the customer's color

The price of the BNP-20 bunker in the basic configuration is 177
605 000 грн. з ПДВ

• The price is indicated with VAT of 20%, on the terms of delivery (self-delivery) EXW - town. Frankincense, according to the rules of "Incoterms-2010". Payment terms - 100% prepayment.
___________________
Our contacts:
050 312-25-14
097 669-31-73
Anton Igorevich
LLC "Egritek"
Ukrainian plant manufacturer of trailed agricultural machinery.
Please note that the provided BNP-20 hopper is subject to compensation from the state in the amount of up to FY-40% and LLC up to 25% of its value without VAT under the program to support the Ukrainian manufacturer of agricultural machinery.
