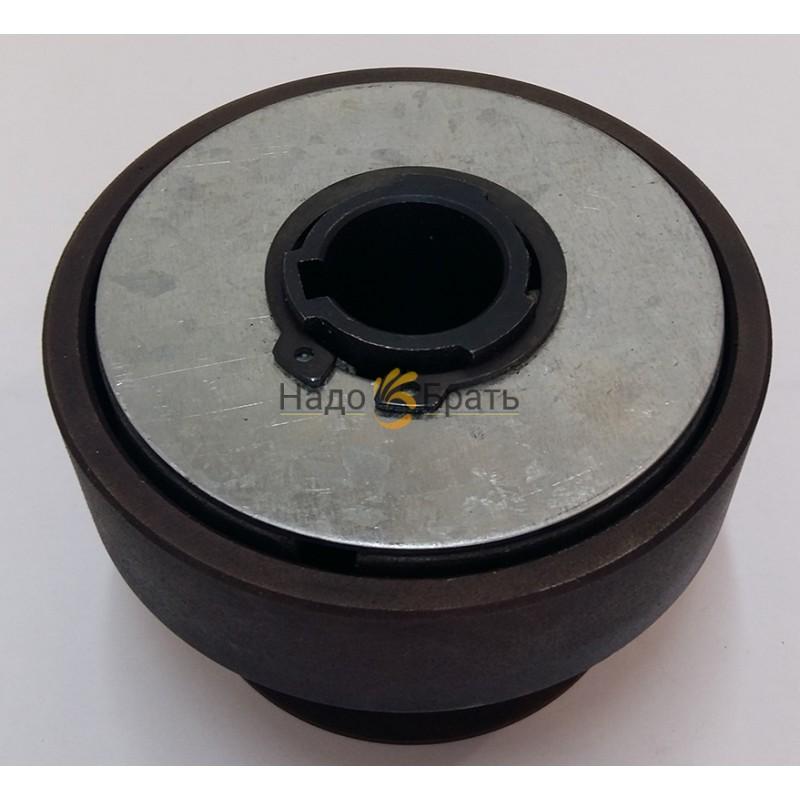

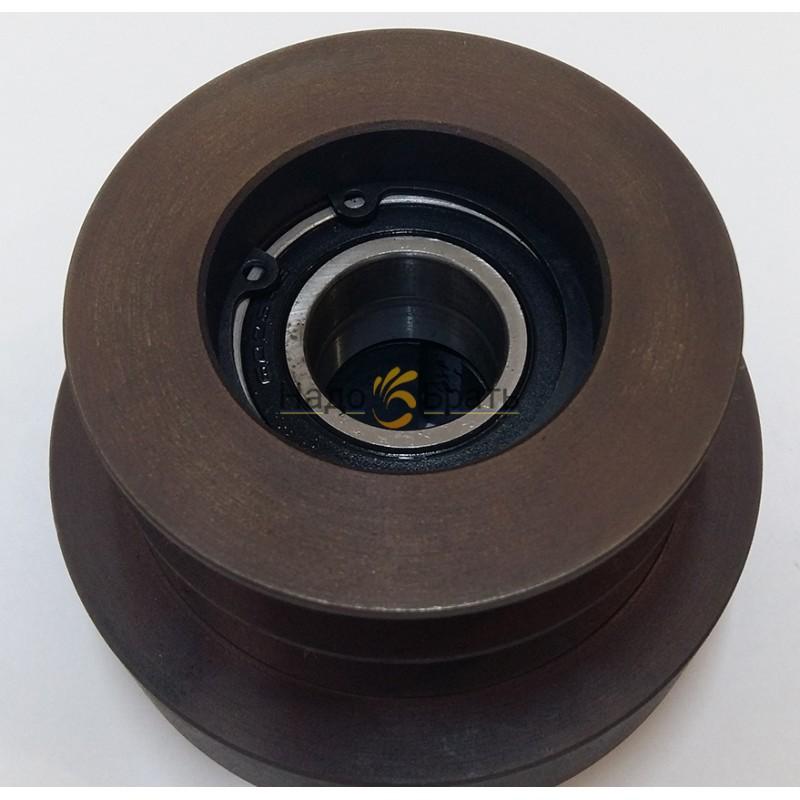

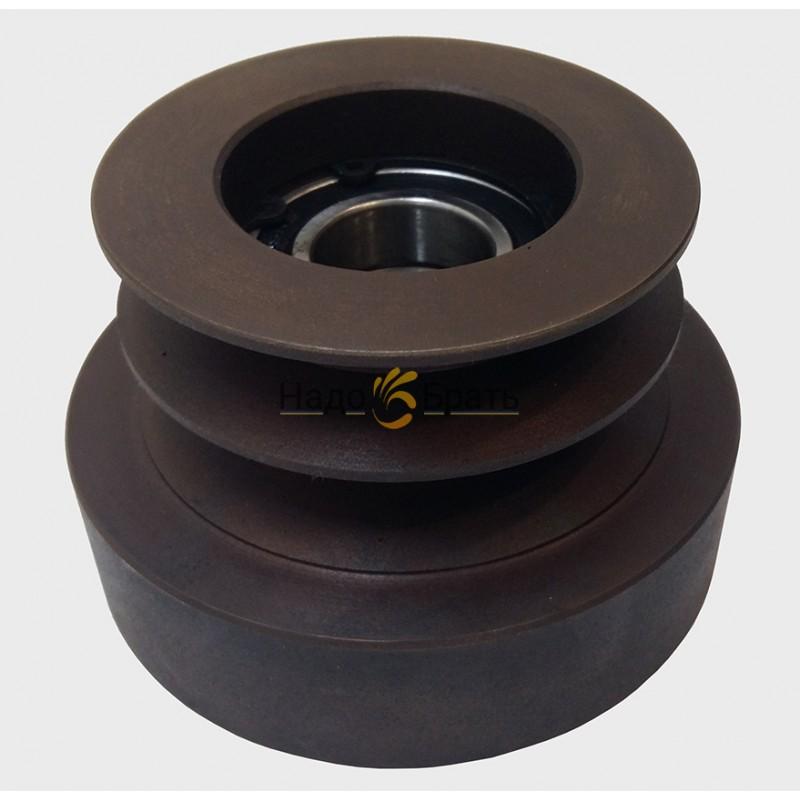

A centrifugal clutch on a shaft of 19.05 mm, Kharkov region.

A centrifugal clutch with a pulley. Suitable for any motor with a power of 5.5 hp or more.

This device is based on 2-bearings. 3- pads are held by two strong springs. Which diverge under the influence of centrifugal force. Thus, the pads come into close contact with the inner part of the pulley, bringing it into action.

It is attached to the engine shaft with the help of a key and fixed with a bolt. The optimal length of the output shaft is 52 mm.

The outer diameter of the pulley is 80 mm. The clutch itself has a diameter of 120 mm.

Centrifugal clutch(//tractor-service.com)
The outer diameter of the pulley is 80 mm.
Shaft diameter 19.05, 20, 25, 25.4 mm
Number of streams 2
Belt profile B
Recommended engine power 6.5 - 15 hp.
The width of the clutch is 120 mm.

Details: in our online store Nado-Brat https://nado-brat.com.ua/centrobezhnoe-sceplenie/
