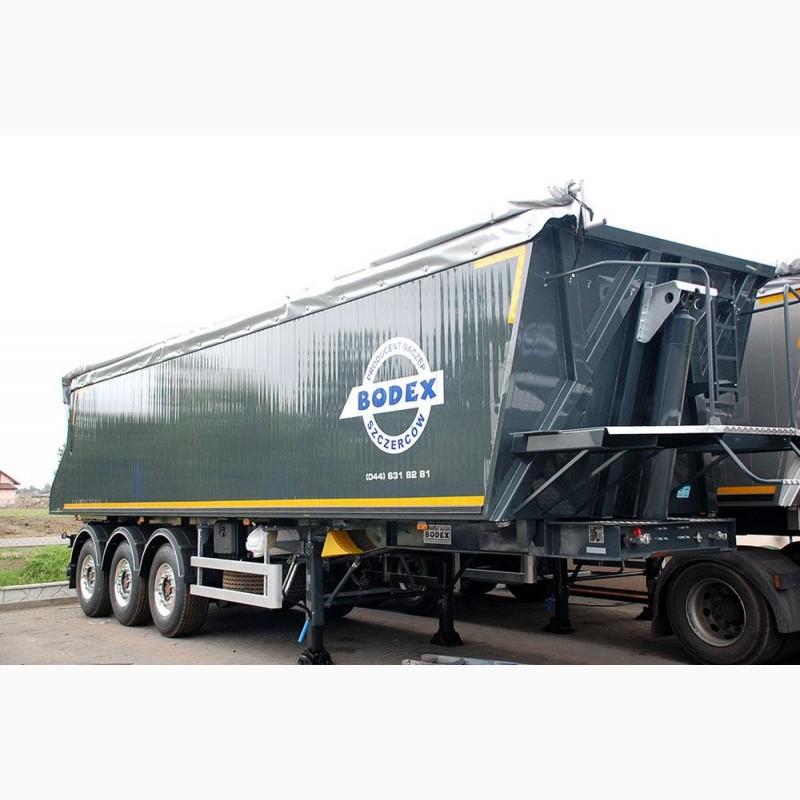

Aluminum semi-trailer BODEX KIS 3WА1 35 m³, Kyiv region.

SamosvalnyeBODEX semi-trailers have many indisputable advantages over ordinary single dump trucks mounted on car chassis, first of all, their colossal load capacity and large geometric volume.

Body:

With fixed front and side boards, a platform with steps on the outer side of the front board;
Body material – low-alloy Finnish steel RAEX 700MC;
The thickness of the bottom is 6 mm, the side is 4 mm;
The body is mounted on the frame and fixed in the transport position;

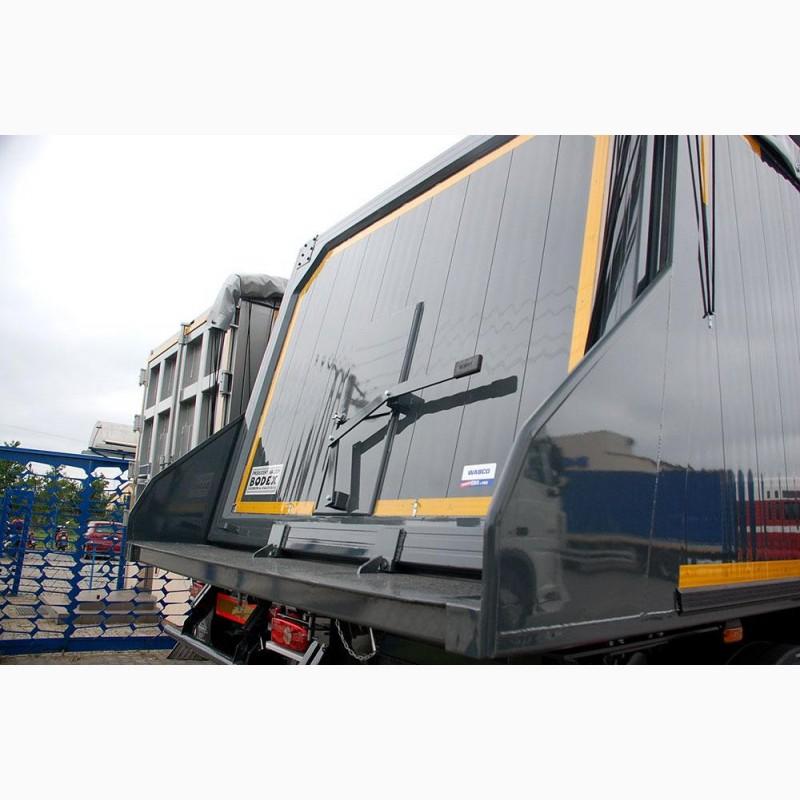

The rear aluminum adjacent board is straight, combined, folding and hinged in a ratio of 1 to 1, with the upper axis of rotation, on two hinges, with rubber seals with shutters (2 pcs.);
The rear side lock drive is mechanical;
The body is equipped with a slidingtent.
Coloring:

Before painting, all steel elements were twice subjected to shot blasting, varnish application in the varnishing chamber, PPG (Italy) enamels with a layer thickness of 150-200 microns are used, the color of the customer's choice from the RAL catalog, in the color range of more than 100 colors, without additional payment for the color, excluding metallic colors.
Second equipment:
(//tractor-service.com)
The rear protective device (anti-recoil beam, folding) and the side protective device comply with GOST R 41.58-2001 (UNECE Regulations No. 58);
2 wedges with fastening (anti-recoil shoes);
The lock for the transport position of the body is the Hi-Fix lock.
Additional equipment:

Water tank,
Box for tools,
Manometer;
All metal fittings are manufactured by Tosi and Sirit (Italy).

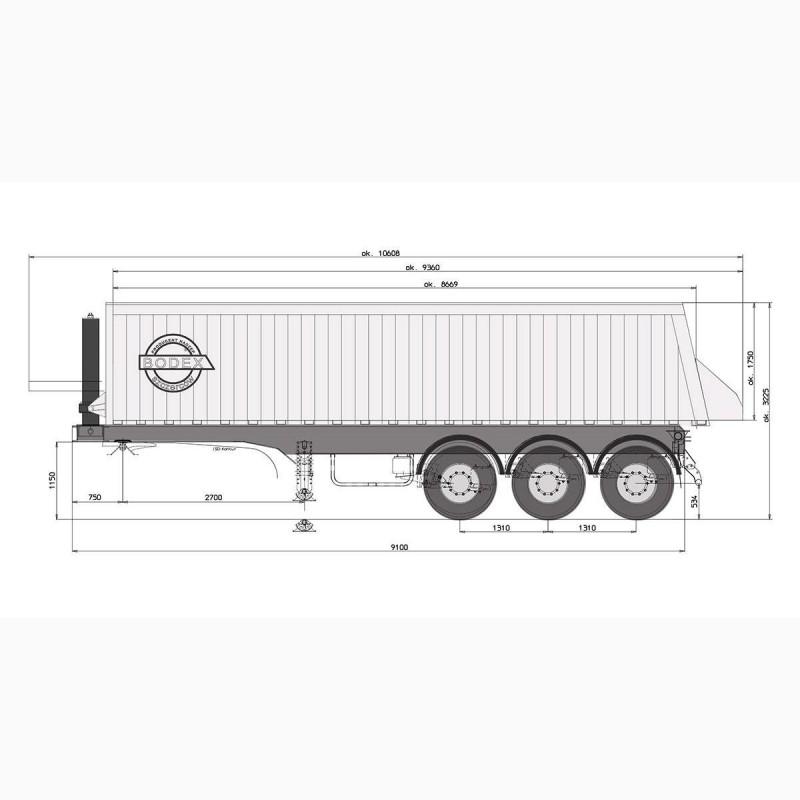

Characteristics

Nagruzka na SSU ot 11500 kg
The height of the SSU is 1150/1300 mm.
Gross weight 35,500/44,000 kg
Curb weight 8,700 kg
Грузоподемность 26 800/35 300 kg
