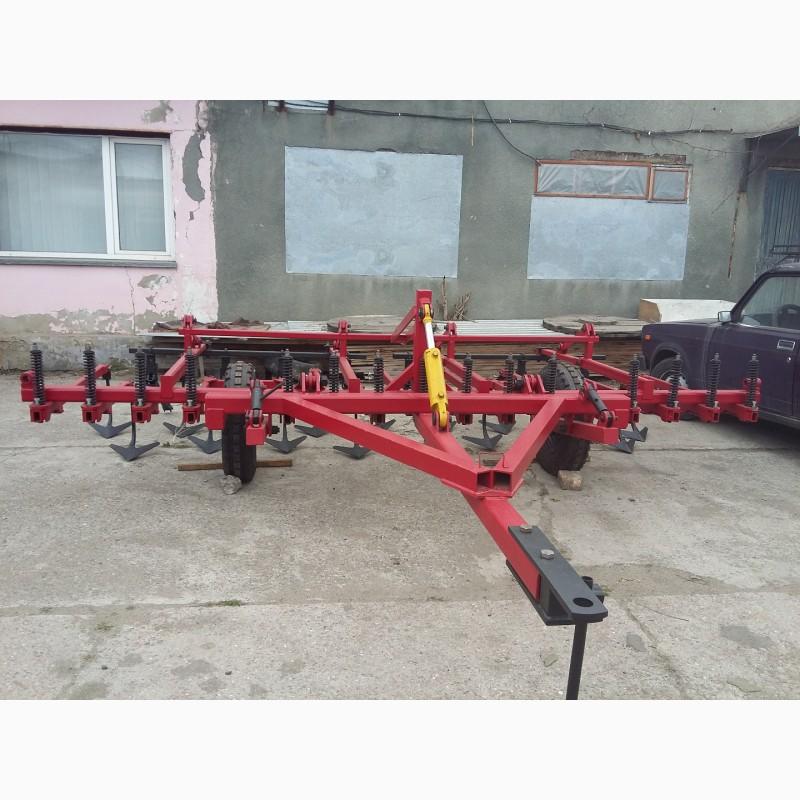

KPS-4 cultivator for sale, Odesa region.

Pre-sowing cultivator KPS-4 soil tillage cultivator is intended for continuous pre-sowing cultivation of grain and industrial crops, care for steam, with simultaneous harrowing, leveling and crushing.
The cultivator is used in all soil and climatic zones, excluding stubble backgrounds and soils clogged with stones, slate and other obstacles, with a specific soil resistance of up to 0.09 MPa, a hardness of up to 1.0 MPa, and a humidity of up to 25%.
The cultivator is aggregated with tractors of class 1.4-2.0 (MTZ-80/82, YMZ-80/82, MTZ-100/102, etc.).
Gripping width - 4.0 m
Productivity in 1 hour of the main time - 5 ha/h
The working speed of movement in the main operations is up to 12 km/h.
The depth of plowing is 5 - 12 cm.
The distance from the supporting plane of the housing to the lower plane of the frame is at least 620 mm.
The distance between the working bodies in the course of movement is 600 mm(//tractor-service.com)

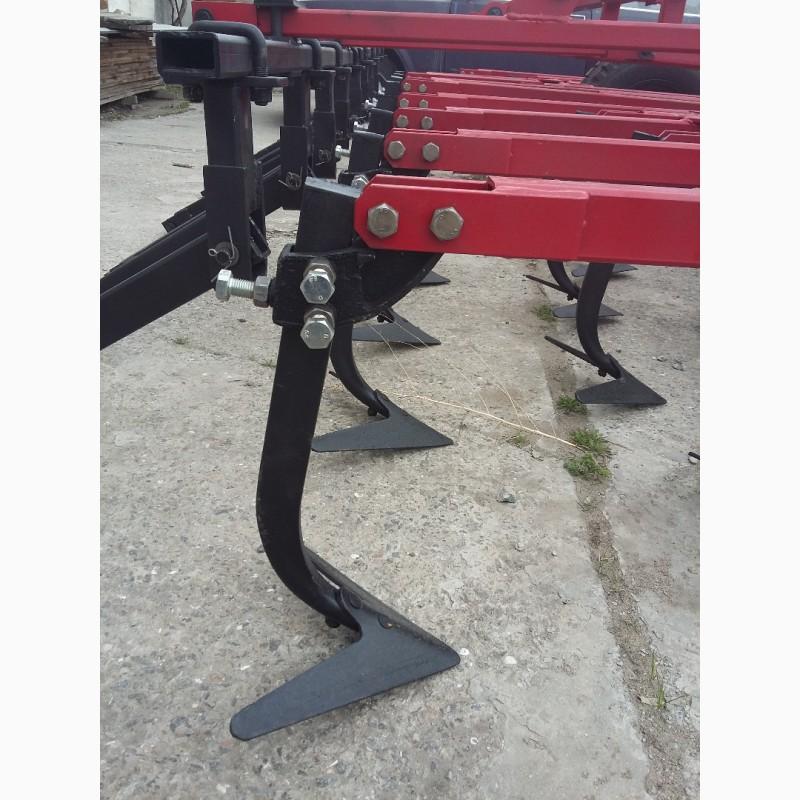

The grip width of the paw is 330 mm.

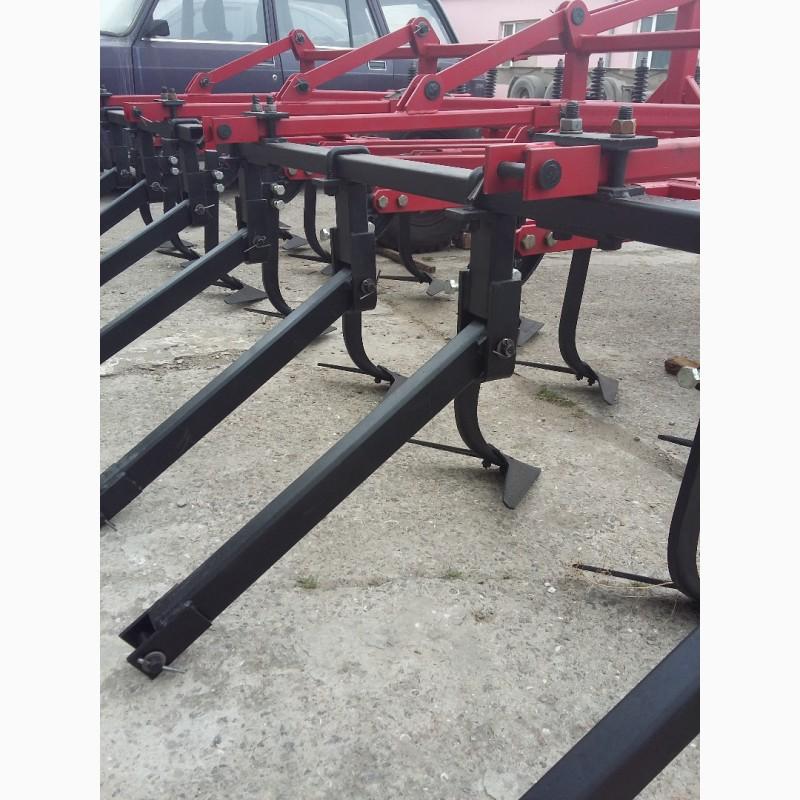

The number of working bodies is 16 pcs.
The mass of the plow is 1140 kg.
Overall dimensions in transport position: length – 4800 mm, width – 4350 mm, height – 1200 mm
Transport speed, no more than 25 km/h
Advantages of the KPS-4 cultivator

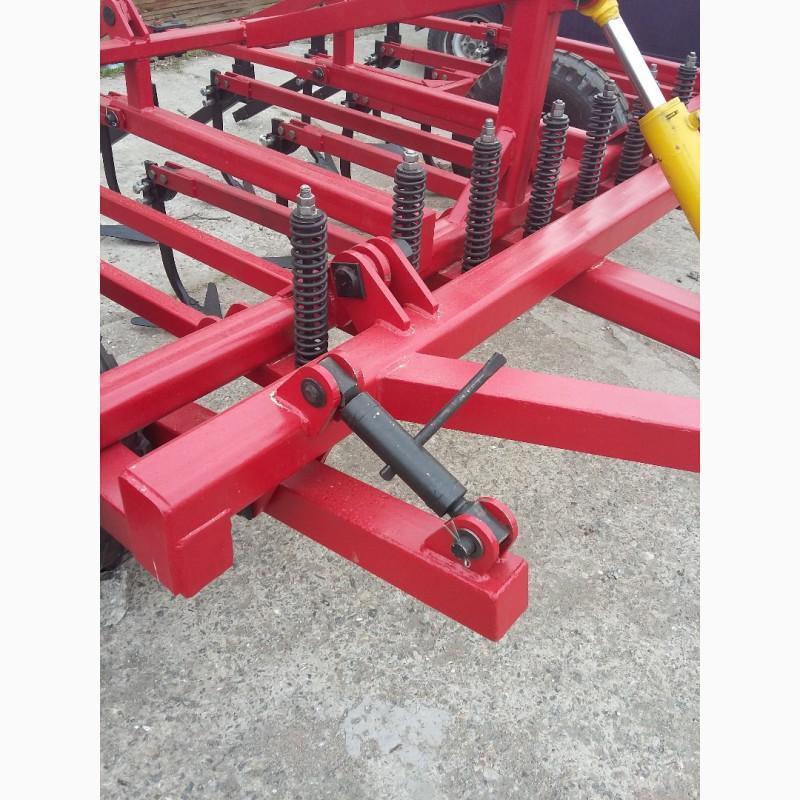

A new design solution for the attachment (joint) of the trailer and the frame excludes the excavation of the entire cultivator for adjusting the depth of processing and the infusion at the height of the rear row of the racks of the working bodies;

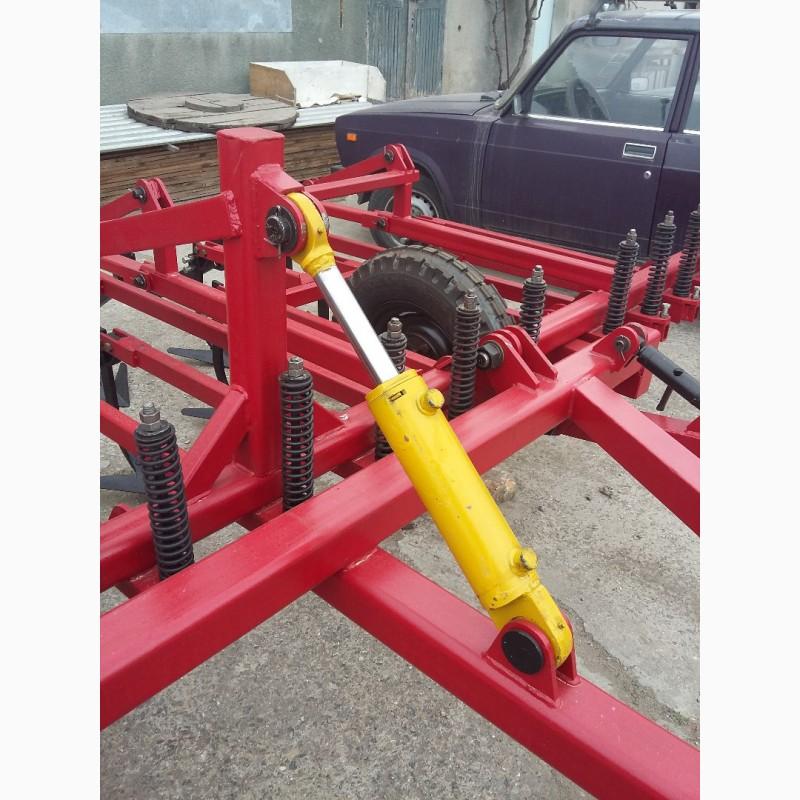

• Processing depth adjustment is carried out by simply raising or lowering the support wheelswheels;

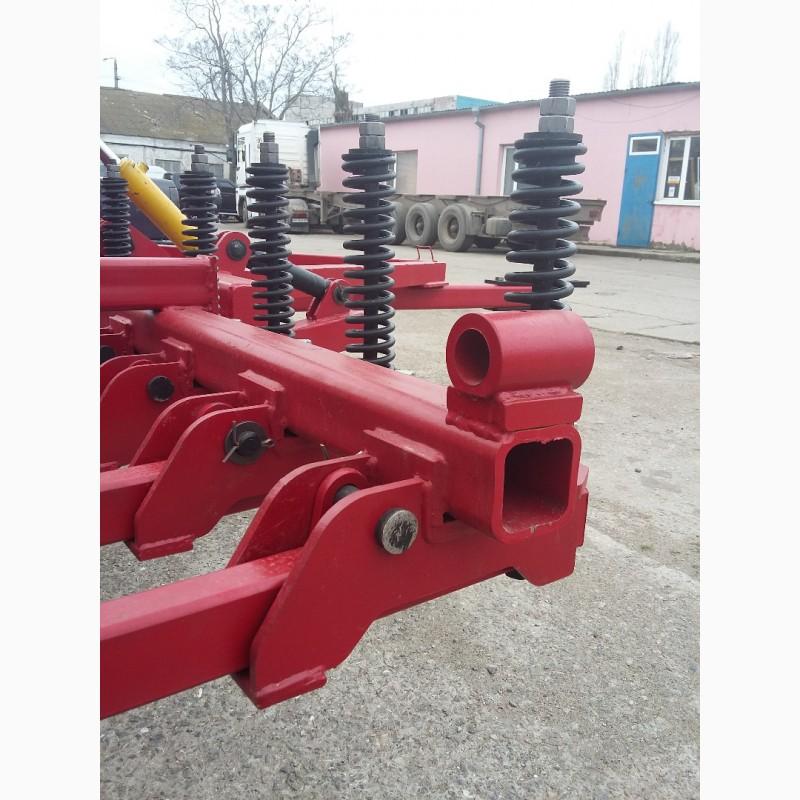

• The modified design of the spring system of the attachment of the shafts allows creating optimal pressure on the paw, capable of maintaining the processing depth when cutting coarse rhizomes.
