Solid fuel boiler EGURRA, Lviv region.

Eggura solid fuel boilers are reliable, highly efficient and long-burning boilers tested over the years, which are ahead of many foreign analogues in terms of their characteristics.

We offer long-burning solid fuel boilers EGURRA 18,25,33,40, 50 kW. The warranty is four years. The set includes a regulator, a turbine, and a temperature sensor. Delivery is stipulated.

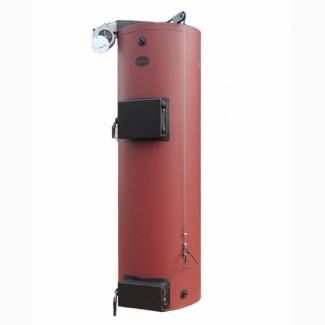

Eggura long-burning boiler is a steel cylinder surrounded by another steel cylinder of a larger diameter, the structure is insulated. The coolant is heated between both cylinders. In the frontpart of the boiler there is a fan with a thermostat. The structure has a hole for loading firewood, a hole for removing ash and a hole for exhaust gases. There is also a coolant supply pipe and a thermometer installation hole. To improve the quality of combustion and heat transfer, an air heating chamber is installed in the upper part of the combustion chamber. A telescopic air supply pipe is lowered into the combustion chamber, at the end of which an air distributor is attached, which is designed for the correct distribution of air in the generation zones (below, next to the air distributor) and in the combustion zones (next to the distributor and above it). The air distributor rests on the sidefirewood, which does not heat up to a high temperature, and descends as the fuel burns under its own gravity. In the upper part of the combustion chamber there is an opening for air intake and an air damper. On the right (or other) side of the boiler, opposite the door, there is a cable for lifting the air supply mechanism with a ring and a locking hook.

Complete set(//tractor-service.com)

1. Air supply manifold.

2. Thermometer.

3. Air distributor.

4. Automation for regulating air supply and temperature.
