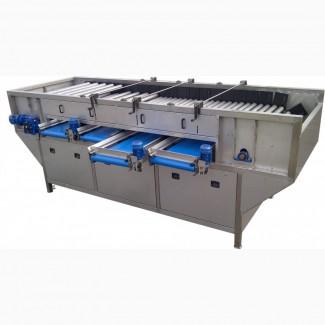

Royal vegetable scaler RS/RS-H, PRO-VEGA, Kyiv

Description
The device is intended for careful calibration of round and oblong roots depending on the diameter. It is produced in the version of 3, 4, 5 grades and with a working width of 800 / 1000 / 1200 / 1500 / 1800mm.

The working element is rotating stainless steel shafts with the possibility of adjusting the distance between the shafts. The distance between the shafts is regulated manually by a system of handles (adjustment on both sides of the machine) or by an electric system.

Sorted vegetables fall on special and picking conveyors, and further, through shock absorbers for the fall of raw materials (hinged hatches on drives), they are loaded into vegetable containers. The machine can beequipped with an elevator or a loading conveyor.

The working speed is regulated by a frequency converter.

Detailed information:

- Frame construction with the maximum number of openable shutters, providing easy maintenance and cleaning of the machine

- Free access to adjustment elements - the possibility of two-way adjustment.

- The device is manufactured in the "Standard" or "H" version with an additional function. For the option with an additional function, there is a possibility of calibratingbeetroot andcelery - the maximum caliber is 142mm.

Option STANDARD "S":

Manufacture: stainless shafts(//tractor-service.com)

Construction: ordinary/ or stainless steel

Casing: galvanized/ or stainless steel

Possible sorting limits: 17-90 mm.

Driving rollers with variable position: flat track, linear lift.

Variant "H":

Manufacture: stainless shafts

Construction: ordinary/or stainless steel

Housing: galvanized/ or stainless steel. steel

Possible sorting limits: 17-142 | 20-120 | 30-130mm

Designed for intensive use
