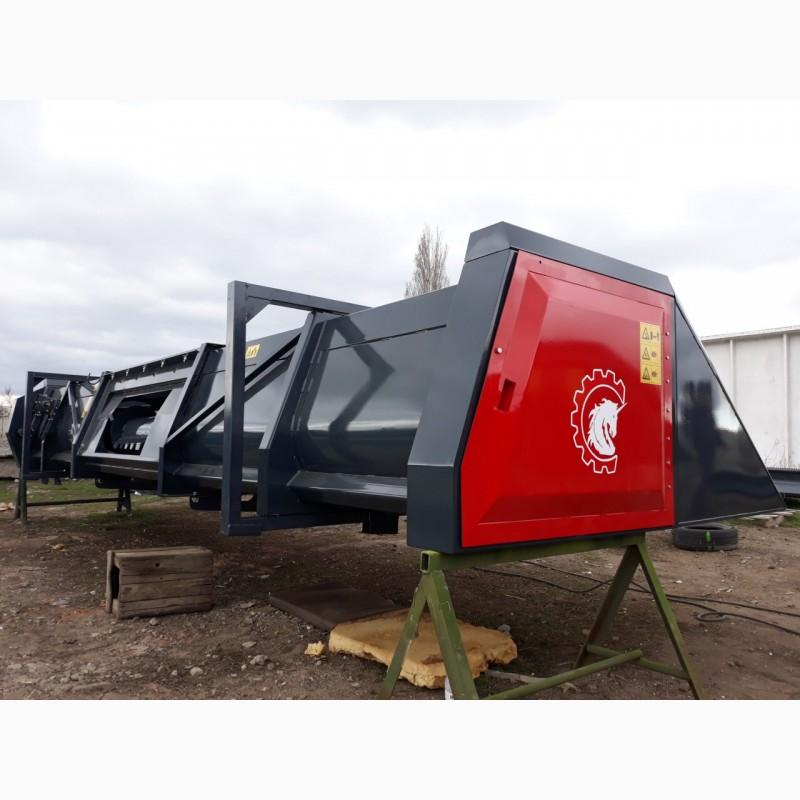

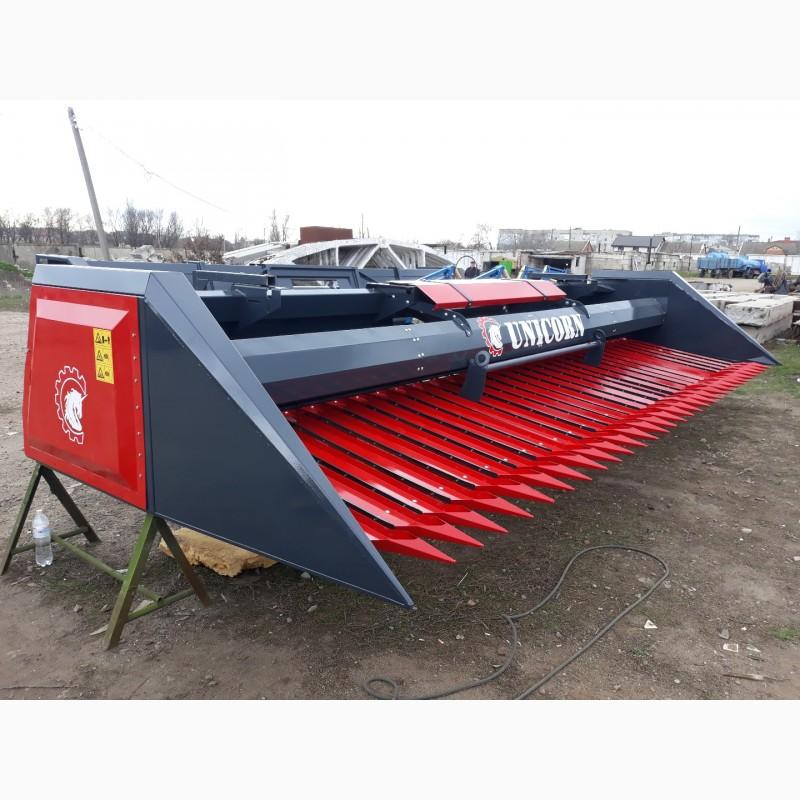

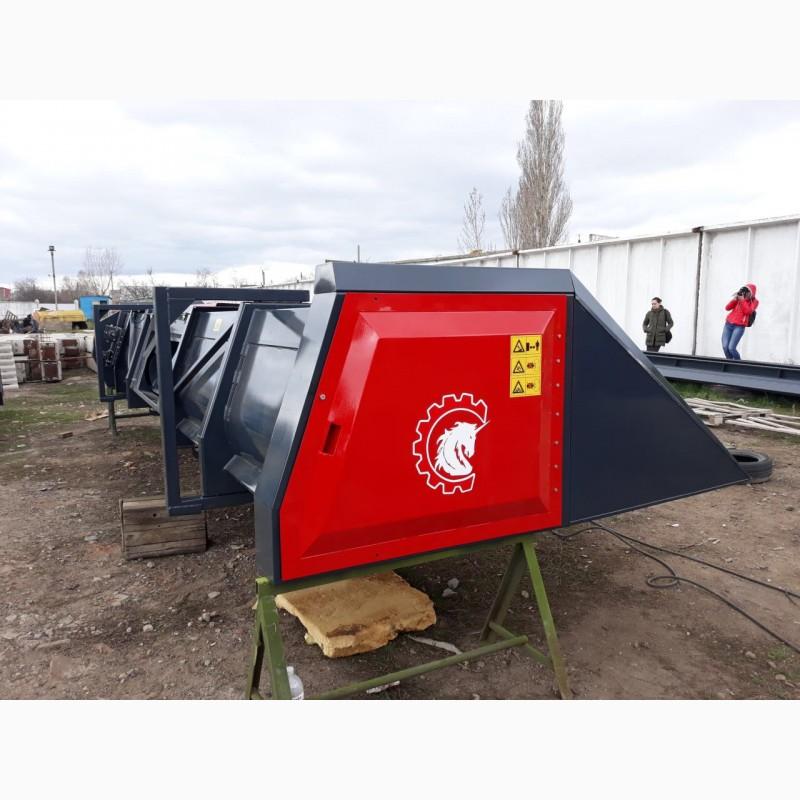

HAWER for sunflower ZHC UNICORN 6m-12m, Odesa region.

High-performance,speed sunflower harvesterZhsk brand.
The rowless method of harvesting allows you to work on crops of different types. Without fuel loss
to maneuver on seeded fields. Conducts the cleaning process better and with less.
losses.
Frame: the improvement of the frame design allowed to add strength to it and reduce it.
weight Thanks to the new design of the sidewalls, one-piece (seamless) intermediate pillars,
lightweight construction of the stem lifter (lifter), reel, front shield,
platforms under the planetary drive, which are made only by the flexible method,
it was possible to reduce the number of welded seams.
Auger: the feed auger is protected by a friction protective clutch, which stands on
with a splined shaft and limits the torque on the auger in the event of stones hitting or
of other objects into the working area of the auger, thus protecting all its rotating parts.
from overloads. The winding of the auger has a large diameter and provides an efficient operation.
supplying a homogeneous flow of product into the inclined chamber of the harvester.
Reel: the weight of the reel is reduced by two times due to the use of a pipe with a larger section.
Long shafts were replaced by trunnions, which added strength to the structure and increased it.
the period of ego exploitation. From above, the reel is covered with a mesh shield, что
prevents weight loss. Turning almost close to the dividers and working
synchronously with the movement of the knives, the reel carefully directs the cut baskets to
auger without breaking them.
Adjustable front shield: new lightweight design and shape geometry.
upper shield with the use of a round pipe, ensures a smooth descent of the basket to 160
ножам, защищет мотовило от механических повреждений и способствует
reduction of crop loss. Adjustment of the front shield is made mechanically.
by way This function is necessary for effective cleaning of both hybrid and i
non-hybrid sunflower, depending on the size of the baskets. Productivity
the harvester does not fall at the same time.
Stem lifters (lifter): the updated design of the lifter contributes(//tractor-service.com)
maximally uniform and accurate penetration into the sunflower rows, no
depending on the width of the row, smoothly directing its stems and baskets to the knives,
preventing seeds from falling to the ground. The new design of the lifter made it possible to facilitate
ego by 30%. Capture of the sunflower cap is possible in any position of the plant and
sowing direction. Even if the harvester does not fall into the sowing row, the neighboring row does not.
will break or stick. The inter-axle distance of stem lifters is 173
всего 22,5 см.
Extension shaft: the universal design of the harvester allows additionally
install the extension shaft, which is necessary for harvesting a certain variety.
sunflower.
Units and details: use of shafts with a diameter of 40 mm, bearing group
import production (Poland), zvezdochek izzydztnykh on the principle of knurling a tooth,
high-strength hardware (class 8,8), new generation splined couplings
connection, chain tension rollers, stamped crate with a hole diameter
3 mm., made it possible to adjust the quality of the manufactured harvester to European standards and
to increase the operational characteristics and wear resistance of all applied nodes,
at least five times.
Kinematics: the node responsible for the kinematics of the harvester has been moved to the side for
simplified maintenance. The cutting device is placed on a bolt fastener,
that simplifies maintenance during cleaning. It can be installed at the client's request.
the drive of the SHUMACHER cutting device, which provides high speed
cutting - up to 800 single strokes of the knife per minute and increases the working speed
combine harvester, thanks to which high productivity is achieved (up to 100 ha per
light day)
Versatility: The harvester is simple in design, unpretentious in operation,
economical in maintenance, aggregates with anydomestic combine harvesters either
of import production by means of a transitional frame with an additional mechanical one
tilt angle adjustment (four holes of 7.5 degrees).
