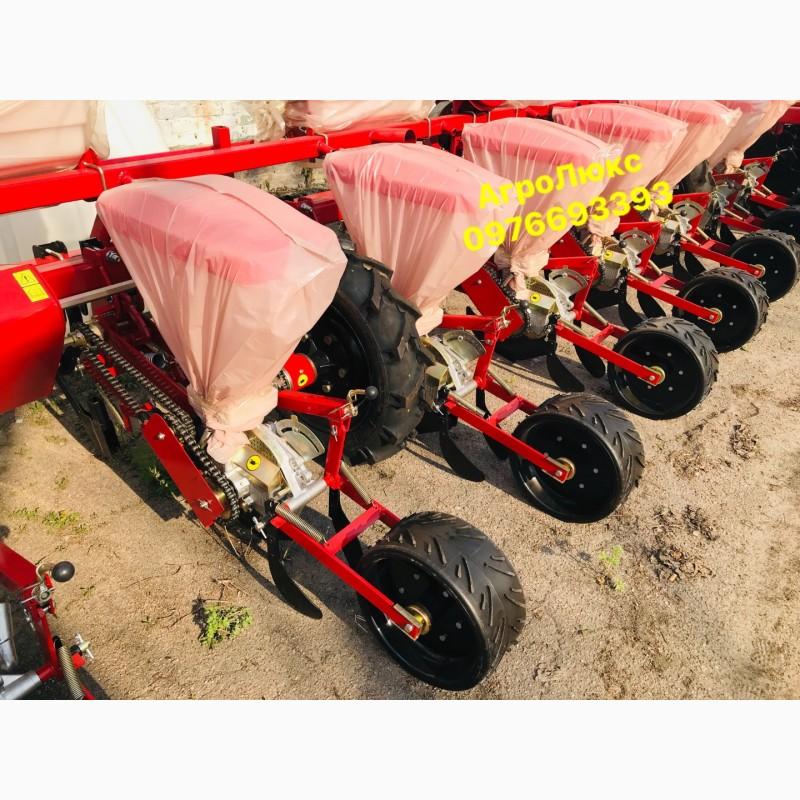

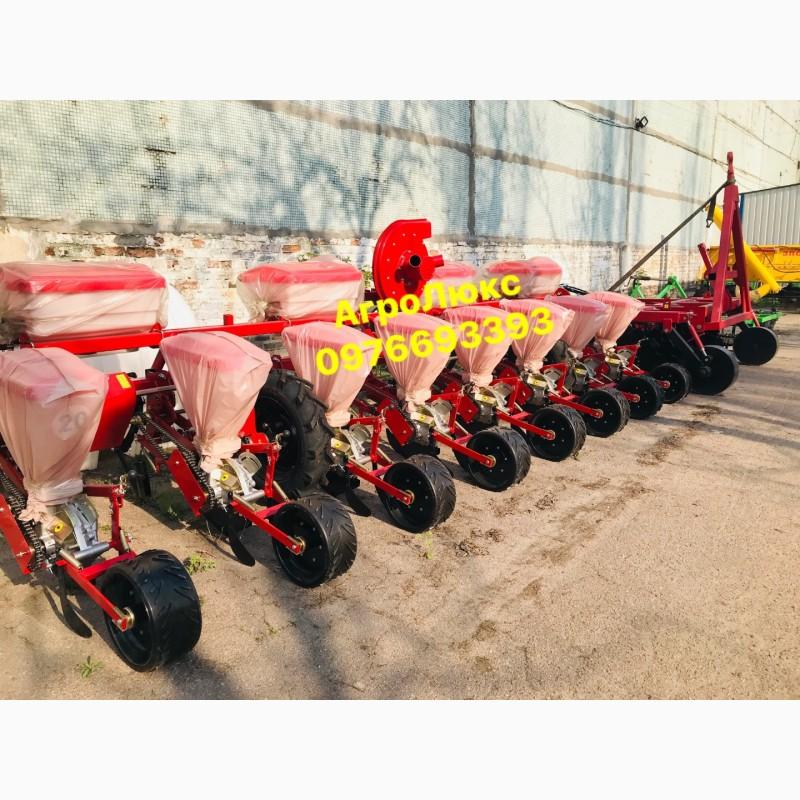

Seeder SPU-8M (analog "Vesta") with intersectional placement of wheels, Kirovohrad region.

Seederpropashnaya precision seeding machine UPS 8-02 (SPU-8) - a universal pneumatic seeder is designed for precise sowing of calibrated seeds of corn, sunflower, sorghum, soybeans, as well as seeds of fodder beans, beans, lupins with simultaneous, separate application of granular mineral fertilizers and rolling of the soil in rows. Intersectional arrangement of support-drivenseeder wheels precise sowing The UPS-8 (SPU-8) allows you to more accurately adhere to the required depth of planting seeds and avoid sifting. It is also possible to sow uncalibrated seeds, but in this case the accuracy will depend on the difference in size and the degree of damage of the seed material.Precise seed drills The UPS-8 (SPU-8) provides sowing to the final density, excluding the use of manual labor during the formation of the required the interval between plants. Pneumatic seeding devices of precision seed drills reduce seed crushing by 10 times compared to mechanical ones. UPS-8 (SPU-8) seed drills are equipped with a durable hydroficated marker with an enlarged disk, which has the ability to change the angle of attack to obtain a clearly visible trail. It is also possible to buy a field drill of precision seeding UPS-8 (SPU-8) with a transport device that allows you to move on general purpose roads without the use of additional means of transport. The seeder is equipped with a centrifugal fan driven by the tractor PTO (540 rpm). flow. The seeding section of the UPS-8 precision seeder (SPU-8) is equipped with discs for sowing corn and sunflower seeds, which you can also buy from our factory. The parallelogram section provides better copying of the relief of the field. As a result of the modernization, the sowing section was equipped with a double-circuit drive of a new design. Reliable protection of the drive ensures work in fields that are clogged with plant residues. The amount of seeds that falls from the hopper into the seeding chamber is regulated by a shutter. The presence of an inspection window allows you to visually monitor the quality of the seeding device during the adjustment process. An unloading hatch is provided for quick removal of seeds from the chamber of the seeding device. raising moisture and creating favorable conditions for earlier and friendly seed germination. Gas exchange occurs thanks to open zones.

Indicators of SPU-6M SPU-8M
Spring unit type
Gripping width m 4.2 5.6
The number of lines pcs. 6 8
Width between rows cm 45, 70
Working speed km/h 2.5-9
Productivity ha/h 1.1-3.8 1.4-5.1
Capacity of bunkers (total)(//tractor-service.com)
- for seeds l 150 200
- for fertilized l 192
Sowing rate
- for seeds pc/p.m. 2-42
- for fertilized kg/ha 50-250
The depth of seed sealing mm 40-120
Overall dimensions
- in working position mm 1700x4900x1600 1700x6250x1430
- in transport position mm 5450x2300x2360 6800x2300x3010
Mass 1074 1278
It is aggregated with tractors hp. >65 80
