ISM-10 seed cleaning and calibration machine, buy grain separator, buy ISM, separator, Kharkov region.
Region:all Ukraine,
Kharkovskaya region.
(Kharkiv)
Great quality of seed material!
The warranty period is 24 months.
Full service in Ukraine!
These are the best machines for high-quality cleaning and calibration of various seeds of grain, legumes and technical crops of Ukraine.

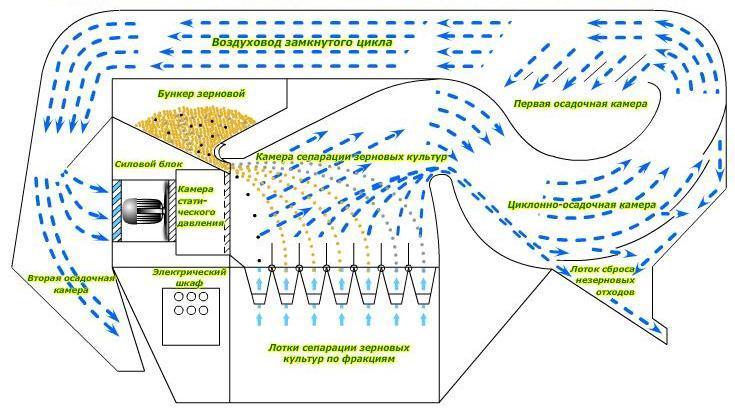

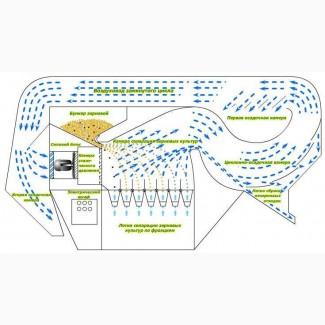

The operation of the machine is reduced to changing the trajectory of the free fall of the "grain" by the air flow created by the block-impeller, and the further distribution and division of the initial material into fractions depending on mass, size and shape.
The aerodynamic separator can work in 4 modes:
- pre-cleaning mode;
- primary cleaning mode;
- grain calibration mode;
- mixed mode (simultaneous cleaning and calibration).
ISM - impeller-separating machine;
TsOK - cyclone-sediment complex (a unit with one cyclone and two or three sedimentation chambers, designed to clean the air circulating in the separator from dust);
APO – pre-cleaning unit (recommended for heavily “clogged” seed material, works in tandem with ISM and SOC machines);
SOC - self-moving cleaning complex, five in one (replaces ZAV).
Prices for March 2023, from now on - check by phone!
- ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000.;
- ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg, dimensions d.3200/w.1000/h.2000mm., 220V/380V - c. 132500 hryvnias.;
- ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm., 220V - c. UAH 72,000, 380V - UAH 75,000;
- ISM-10 TsOK, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions d.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. UAH 139,400;
- ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm, c. 125,000 UAH.;
- ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg., dimensions d.4800/w.1150/h.2800mm.), c. 193500 UAH.;
- ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg., dimensions d.2300/w.650/h.2400mm.), price: UAH 138500;
- ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm., c. UAH 206,800;(//tractor-service.com)
- ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg., dimensions d.2310/w.650/h.2400mm., c. UAH 149,700.;
- ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 225,400; 190
- СОК-25 ц. 520000 грн.;
- SOK-30 c. UAH 530,000.;
- APO-5 (productivity 5 t/h) c. UAH 80,800.;
- APO-50 (productivity from 10 to 50 t/h) c. UAH 162,000.
Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. 600 UAH.;
-set of wheels for ISM-5, ISM-10, c. 700 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. 750 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. 850 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. 960 UAH.;
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260;
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. 7080 UAH.;
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. UAH 13,500.;
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. 2000 UAH.;
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video APO grain preliminary cleaning unit:
https://youtu.be/vdA2w1B1PcY
*
Video ISM-5Grain separator:
https://youtu.be/MuiW7pcM5vI
The warranty period is 24 months.
Full service in Ukraine!
These are the best machines for high-quality cleaning and calibration of various seeds of grain, legumes and technical crops of Ukraine.
The operation of the machine is reduced to changing the trajectory of the free fall of the "grain" by the air flow created by the block-impeller, and the further distribution and division of the initial material into fractions depending on mass, size and shape.
The aerodynamic separator can work in 4 modes:
- pre-cleaning mode;
- primary cleaning mode;
- grain calibration mode;
- mixed mode (simultaneous cleaning and calibration).
ISM - impeller-separating machine;
TsOK - cyclone-sediment complex (a unit with one cyclone and two or three sedimentation chambers, designed to clean the air circulating in the separator from dust);
APO – pre-cleaning unit (recommended for heavily “clogged” seed material, works in tandem with ISM and SOC machines);
SOC - self-moving cleaning complex, five in one (replaces ZAV).
Prices for March 2023, from now on - check by phone!
- ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000.;
- ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg, dimensions d.3200/w.1000/h.2000mm., 220V/380V - c. 132500 hryvnias.;
- ISM-10, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 165kg, dimensions d.2420/w.460/h.1880mm., 220V - c. UAH 72,000, 380V - UAH 75,000;
- ISM-10 TsOK, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions d.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. UAH 139,400;
- ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm, c. 125,000 UAH.;
- ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg., dimensions d.4800/w.1150/h.2800mm.), c. 193500 UAH.;
- ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg., dimensions d.2300/w.650/h.2400mm.), price: UAH 138500;
- ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm., c. UAH 206,800;(//tractor-service.com)
- ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg., dimensions d.2310/w.650/h.2400mm., c. UAH 149,700.;
- ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 225,400; 190
- СОК-25 ц. 520000 грн.;
- SOK-30 c. UAH 530,000.;
- APO-5 (productivity 5 t/h) c. UAH 80,800.;
- APO-50 (productivity from 10 to 50 t/h) c. UAH 162,000.
Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. 600 UAH.;
-set of wheels for ISM-5, ISM-10, c. 700 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. 750 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. 850 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. 960 UAH.;
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260;
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. 7080 UAH.;
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm and more) c. UAH 13,500.;
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. 2000 UAH.;
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video APO grain preliminary cleaning unit:
https://youtu.be/vdA2w1B1PcY
*
Video ISM-5Grain separator:
https://youtu.be/MuiW7pcM5vI
