Machine for cleaning and calibrating grain ISM (15-20t/h), grain separator, buy ISM, Kharkiv region.
Region:all of Ukraine,
Kharkiv region.
(Kharkiv)
Machines process and calibrategrain by grade with high quality accuracy The constructions of nodes represent the latest technological achievements in grain processing. Accuracy of calibration of seed material guarantees 98% germination of grain after sowing.
The price is conditional and depends on the date of your request, configuration and form of payment.
We will be happy to answer all your questions by phone.
24 month warranty!

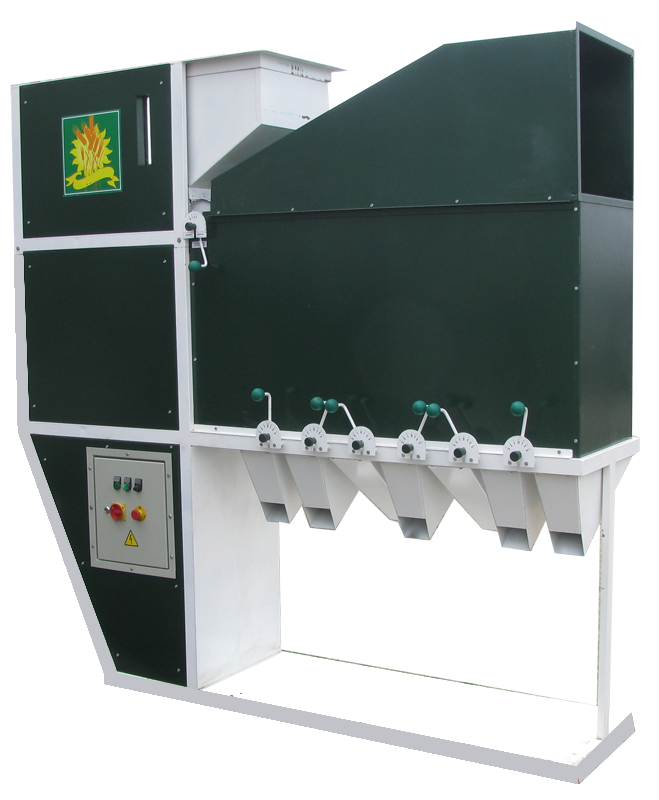

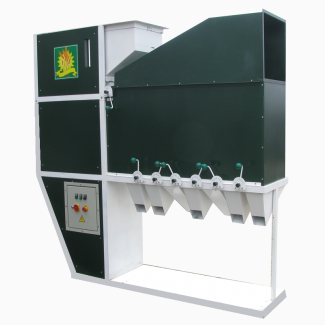

ISM — Impeller Separating Machine, sieveless impeller separator for cleaning and calibrating grain and seeds.
TsOK — Cyclone-Sediment Complex of a closed cycle.
_______________________________________________________
ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm., c. 125,000 UAH.;
ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg, dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;
ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg, dimensions d.4800/w.1150/h.2800mm.), c. UAH 193,500; 175
ІСМ-20 ЦОК, очистка 20т/год, калібрування до 10т/год, 1,5-3кВт, 380В, 50Гц, вага 690кг., габарити д.4800/ш.1150/в.2800мм., ц. 206800 грн.;
_______________________________________________________
The operation of the machine is reduced to changing the trajectory of the free fall of the "grain" by the air flow created by the block-impeller, and the further distribution and division of the initial material into fractions depending on the mass, size and shape.(//tractor-service.com)
The aerodynamic separator can work in 4 modes:
- preliminary cleaning mode;
- primary cleaning mode;
- grain calibration mode;
- mixed mode (simultaneous cleaning and calibration).
A frequency converter is installed in the grain separator - a mini-computer that allows you to regulate the power of the engine and start it in different modes. This function increases the service life of parts and mechanisms, and also significantly saves the consumed electricity. The use of a frequency convector makes it possible to start the engine smoothly, adjust the impeller speed, reverse the impeller for cleaning the unit (in case of dust on the engine) and connect to a 380 V network.
Link to the company's official website: https://ton.biz.ua/ism-impelerna-separuyucha-mashina/
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video Unit of the previousgrain cleaning APO:
https://youtu.be/vdA2w1B1PcY
The price is conditional and depends on the date of your request, configuration and form of payment.
We will be happy to answer all your questions by phone.
24 month warranty!
ISM — Impeller Separating Machine, sieveless impeller separator for cleaning and calibrating grain and seeds.
TsOK — Cyclone-Sediment Complex of a closed cycle.
_______________________________________________________
ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm., c. 125,000 UAH.;
ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg, dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;
ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg, dimensions d.4800/w.1150/h.2800mm.), c. UAH 193,500; 175
ІСМ-20 ЦОК, очистка 20т/год, калібрування до 10т/год, 1,5-3кВт, 380В, 50Гц, вага 690кг., габарити д.4800/ш.1150/в.2800мм., ц. 206800 грн.;
_______________________________________________________
The operation of the machine is reduced to changing the trajectory of the free fall of the "grain" by the air flow created by the block-impeller, and the further distribution and division of the initial material into fractions depending on the mass, size and shape.(//tractor-service.com)
The aerodynamic separator can work in 4 modes:
- preliminary cleaning mode;
- primary cleaning mode;
- grain calibration mode;
- mixed mode (simultaneous cleaning and calibration).
A frequency converter is installed in the grain separator - a mini-computer that allows you to regulate the power of the engine and start it in different modes. This function increases the service life of parts and mechanisms, and also significantly saves the consumed electricity. The use of a frequency convector makes it possible to start the engine smoothly, adjust the impeller speed, reverse the impeller for cleaning the unit (in case of dust on the engine) and connect to a 380 V network.
Link to the company's official website: https://ton.biz.ua/ism-impelerna-separuyucha-mashina/
Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video Unit of the previousgrain cleaning APO:
https://youtu.be/vdA2w1B1PcY
