Trailed cultivator KPS-9PM + Kit for application of liquid fertilizers, Cherkasy region.

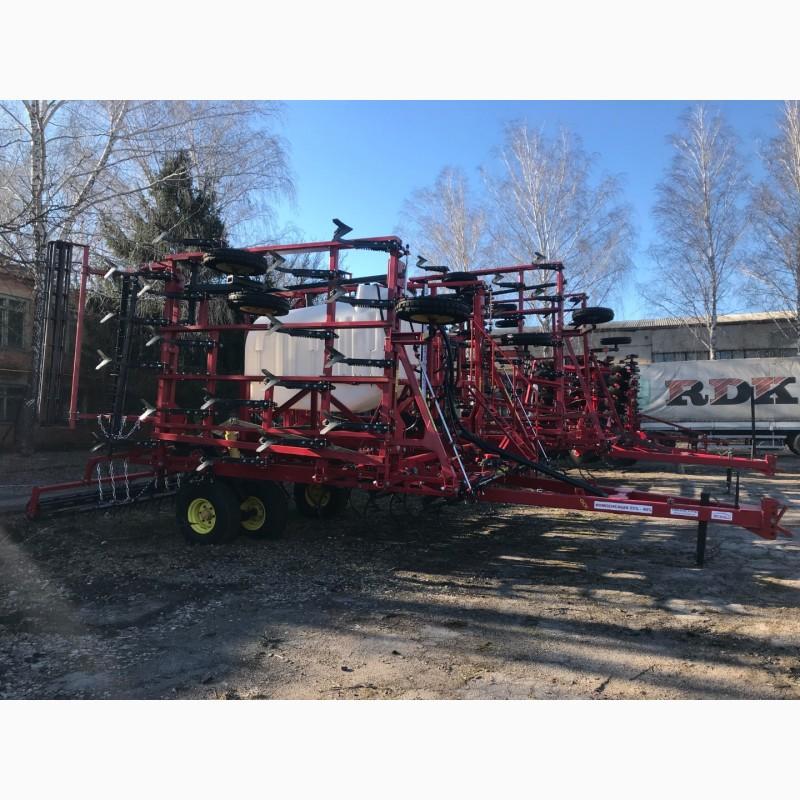

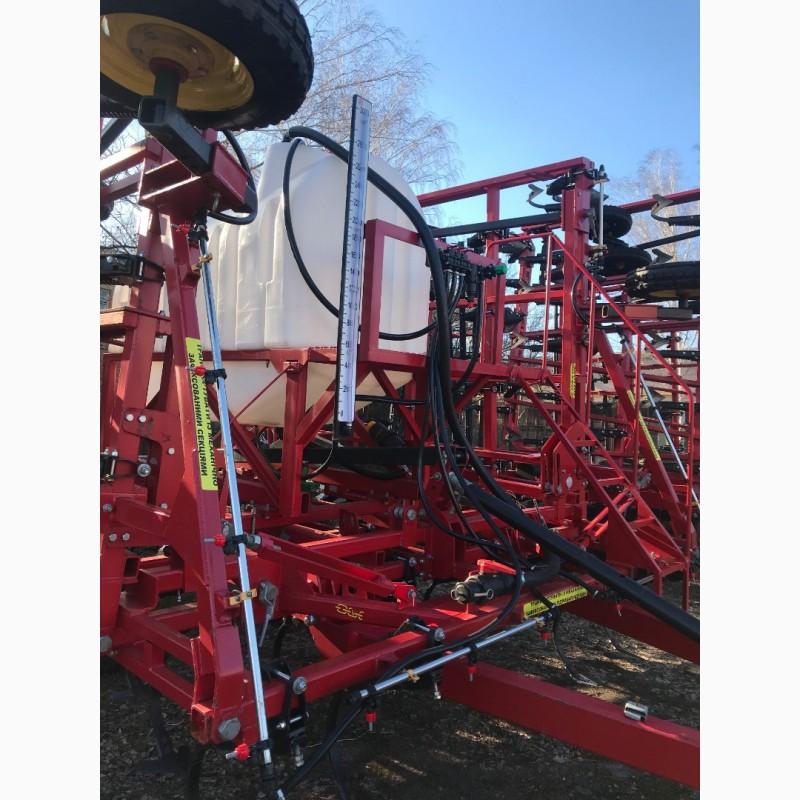

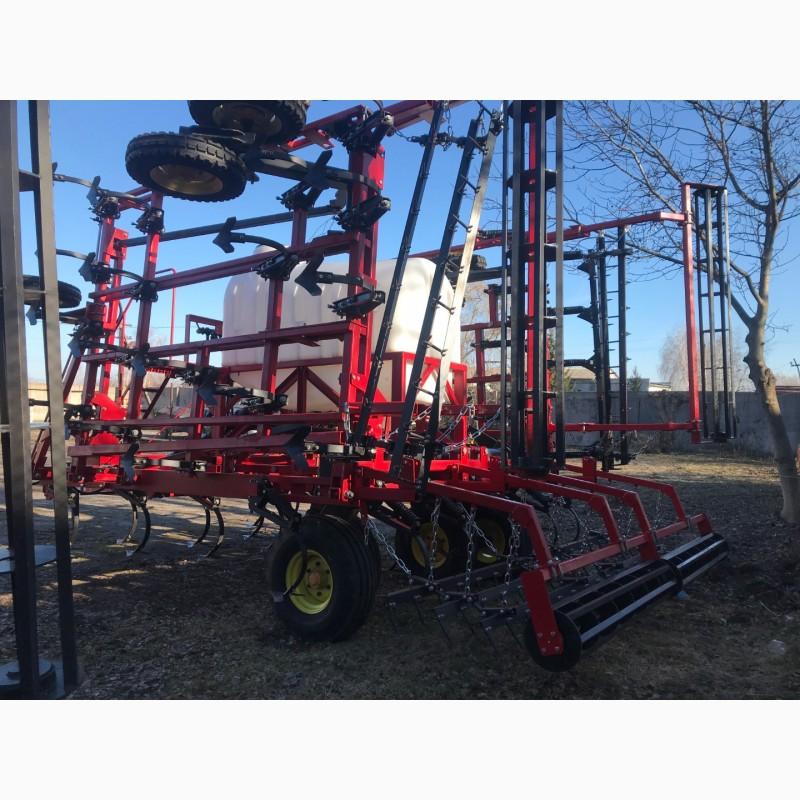

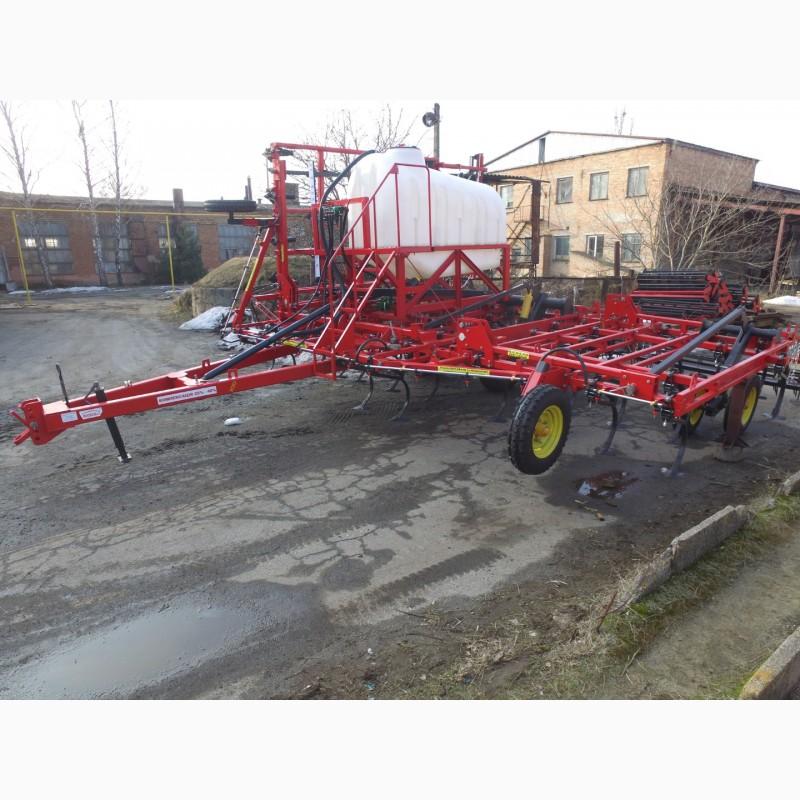

Trailed cultivator KPS-9PM + Kit for application of liquid fertilizers.
Production — TM "Voskhod" price with a set 774,000 UAH.

Cultivator KPS-9PM is intended for soil preparation for sowing agricultural crops and care for crops and can be used in all climatic zones of Ukraine on soils of different mechanical composition with a hardness of up to 1.6 MPa and humidity of 8-30%. The work of cultivators is allowed on slopes of 8°.

powerful reinforced frame (base KPS-12PM);
Possibility to equip with wings and get KPS-12 PM 5-section)
Technical characteristics
Trailer type
Working width of capture, m 9.0
Working width of capture, m 9.0
Productivity, ha/time 9.0
Depth of soil treatment, cm 5-12
Mass, kg 6500
Number of sections, pcs. 3
Number of rows, pieces 5
Number of working bodies, units 59(//tractor-service.com)
Required power of the tractor, hp 220-280
Advantages of PM series cultivators

• uniformity of processing depth over the entire width and length of the grip;

• even sole of the treated area;

• leveling and partial compaction of the soil;

• low probability of clogging elements with plant residues;

• high processing productivity;

• rigid and durable frame construction;

• simplicity and reliability in use.

The frame of the bridge construction of the KPS-9PM cultivator provides high strength and reliability, while maintaining a low weight. Having a rigid hitch, the design of the cultivator ensures parallel raising and lowering of the unit relative to the surface being processed during turns and moves. Uniform lifting of the cultivator relative to the hitch with the tractor is ensured by the mechanism connecting the drawbar of the unit with its internalwheels. The uniformity of the lifting of the central part of the cultivator and its wings is ensured by the design of the hydraulic cylinders of the wheels and the sequential scheme of connecting the hydraulic cylinders. The pitch of the working bodies of the KPS-9 PM wide-grip cultivator is 152 mm, the width of the paw of the working body is 230 mm, which ensures full overlapping of the working bodies of each other during processing and increases the service life of the paw. Working bodies are placed on five main parallel beams and an additional sixth. This number of rows makes it possible to ensure a sufficient gap between the working bodies for the passage of plant residues during processing. The distance between the rows is 765 mm, which also increases the capacity of the cultivator and prevents it from clogging.
