SM-4 (MS-4, 5) spare parts and accessories, Zhytomyr region.

Full list of spare parts for self-propelled pile cleaner SM-4 (MS-4,5).

Always available:

1             Conveyor loading SMM02.000

2 Shaft assembly MSU02.602-01

3. Shaft MSU02.602

4 Head MSU02.102

5 Head MSU02.102-01

6             Bearing       SMM02.104

7 Bush NEN43.030А

8 Zvezdochka Z=8 Fst= 25 НЕН023.206-01

9 Tension roller H206.23.000

10 Video (OVY05.009) OVB1257

11 Drum with a ratchet (OVY05.109) OSD1158

12 Dog. OSD1185А

13 Chain conveyor H124.01.000-02

14 Connecting link SPRD38.4000

15          Rubber scraper

16          Scraper bracket

17          Scraper bracket plate

18 Rope SMM02.687

19          Upper head           SMM02.020

20 Pulley 1-no handle F=315 SMM02.108

21          Val        SMM02.609

22 Friction washer H038.01.004

23 Flange H038.01.005

24 Washer H038.00.006

25 Spring H038.00.007

26 Bearing housing OVI04.101

27 Bearing cover open.       OVB1154

28 Bearing cover close.       OVB1264

29 Zvezdochka Z=8 Fst=25 H023.206-01

30 Tension bolt OVI04.601

31 Upper head MSU02.000

32 Pulley MSU02.101

33 Val MSU02.601

34 Bearing half housing H027.203

35         Disk     MSU02.424

36 Sprocket Z=8 Fst=30 H023.206-02

37          Questioner of rights. SMM02.290

38          The questioner is a lion.   SMM02.290(-01)

39 Casing SMM02.070

40 Casing SMM02.071-01

41 Bracket SMM02.100

42          Auger rights         SMM02.320

43 Lion auger.          SMM02.320-01

44 Thrust ring OS1077

45          Washer SHEZ-25

46 Air system SMM03.000

47 Aspiration system SMM03.010

48 2-hand pulley. F=265 SMM03.101

49 Pulley 2-hand. F=250 SMM03.109

50 Bearing housing H026.085

51 Bearing cover open.       H026.163

52 Bearing cover close.       H026.266

53          Cover              SMM03.024

54 Screw SMM03.040

55 Screw SMM03.330

56 Pulley 1-no handle Ф=325; Fst.=30 SMM03.107

57 Pulley 1-no ch. F=190; Fst.=30              SMM03.108

58 Zvezdochka Z=12 Fst=30 SMM00.601

59         Bush SMM03.806

60 Clip SMM08.002-01

61          Waste auger SMM03.080

62          Auger    SMM03.280

63 Bearing housing SMM03.111

64 Clip SMM08.002

65 Bearing housing SMM08.403

66 Zvezdochka Z=68 SMM03.750

67          Augerpure grain     SMM03.210

68          Auger    SMM03.230

69 Pulley F=135, Fst=25 H209.067

70          Val glavnyj     SMM04.000

71 Connecting rod head ZAV10.55.104

72          Eccentric       OVB1256-01

73          Connecting rod OVI09.901

74         Counterweight       SMM04.106

75 2-hand pulley SMM04.107

76 Pulley 1-no handle SMM04.109

77 Eccentric shaft SMM04.601

78 Zvezdochka Z=12 step 19.05 Fst=35 SMM00.601-01(//tractor-service.com)

79          Trier

80 Clip SMM08.002-02

81 Rubber sleeve SMM05.001

82          Here        SMM06.603

83 Supporting roller BM09.001P

84          Gear shaft pain.        MSU06.240

85 Gear shaft fig. Metal.        SMM06.270

86 Gear shaft fig.        SMM06.270

87         Cog wheel           SMM06.006

88          Flywheel (helm)        1P-200

89 Sector SMM06.008

90         Elevator            SMM08.000

91 Pulley 1-no handle F=475 SMM08.102

92 Pulley 1-no handle F=170 Fst=.25 H209.002А

93         Video SMM02.101

94          Here        SMM08.003

95 Belt with buckets SMM 08.001

96 MSU tape 08.001 MSU08.001

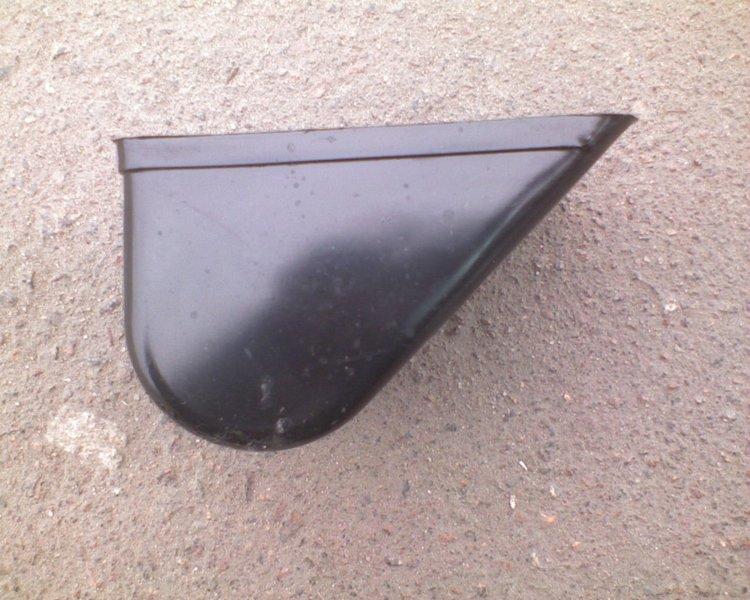

97          Ladle    SMM08.012

98 Self-propulsion mechanism SMM12.000

99          Semi-coupling mobile             VL 1020

100        Plug SMM12.020

101 SMM connecting rod 12.104

102        Eccentric       SMM 12.105

103 Asterisk SMM12.419

104        Bearing       ZAV10.33.102

105 Mobile semi-coupling OVI06.104

106 Fixed semi-coupling OVI06.105

107 Semi-axis SMM12.615

108 Semi-axis SMM12.616

109 Thrust ring OS1073

110 Lattice part SMM09.000

111        The body of the camp    SMM09.010

112        Side of OVI09.020

113        Side of OVI09.020-01

114        Side of res. Stana OVI 09.030

115        Side res. State of OVI 09.030-01

116 Bracket for resolution SM-4 OVI 09.437

117 Bracket for res.stand SM-4 OVI 09.437-01

118 Slider on CM-4 OVI 09.003

119        Spring            OVI09.611

120        Spring            OVB9034

121 Connecting rod OVI09.901

122 Cassette OVI09.160

123 Brush drive mechanism SMM20.110

124 Frame SMM20.040

125 Bearing SMM20.101

126 Connecting rod SMM20.120

127 Connecting rod SMM20.120-01

128        Val SMM20.190

129 Lever SMM20.200

130        Plank OVI09.503

131        Finger on the cassette           SMM20.613

132        Driver head             OVB38-8А

133        Vehicle SMM20.616

134 Bush SMM20.801

135 grain strip (brush) 2Г-0.40Х30Х25-950

136 Tension sprocket Z=14 SMM28.000

137 Asterisk Z=14 SMM28.100

138        Here        SMM28.601

139 Electric motor 2.2 kW x 1500 rpm.

140 Electric motor 3.0 kW x 1000 rpm.

141 Pulley for electric drive SM-4 Ф=132/112 ф=24 SMM 00.101

142 Pulley/el.dv.3-h handle.F=160-224/90Fst.=32         SMM 00.109

143        Electric shield

144 sieve 790*990

145        belt set

146        Bearing       180204

147        Bearing       180205

148        Bearing       180206

149        Bearing       180207

150        Bearing       180212

151        Bearing       11205

152        Bearing       11206

153        Bearing       11207

154        Bearing       7507

155        Cuff            25x42

156        Cuff            30x52

157 Retaining rings in assortment

158     Catalog CM-4, MC-4,5
