APPLICATION: For driving wheels of tractors T-40, T-40A, T-28х4 MS-1, T-28х4 МАС-1, intended for work in agricultural production.

Tires for agricultural machinery

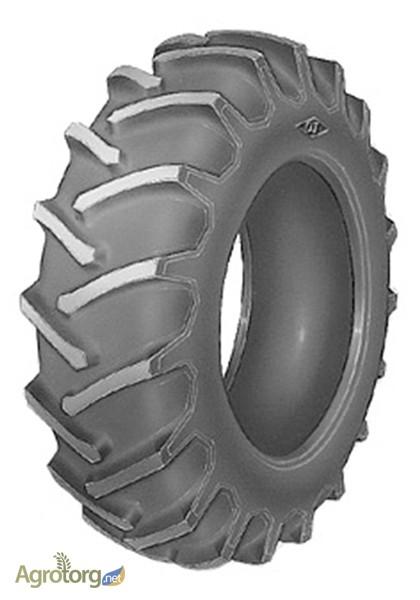

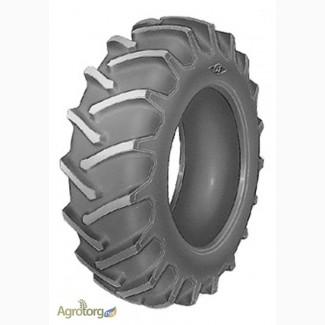

Photo I-166 n.s.6
Model I-166 n.s.6
Tire size 13.6-38
Name of the standard TU 38.104 336
The type of pattern is higher than .
Bearing surface index 129(125)(//tractor-service.com)
Recommended rim, tolerance DW12, W12; (DW 11,W11)
Outer diameter, mm +-1 1575±1.5%
Profile width, mm, b/w 350
Static radius, mm, +-1 738±2.5%
Qmax, kgf 1850(1660)
P0 at Qmax, kgf/cm2 1.6
Vmax, km/h 30(35)
Tire mass, no more, kg 79.3
Type and brandcar Tractor T-40, T-40А, T-40AM, T-28х4МС-1
Tire framefor tractors, presented in the catalog of this site, is produced using the most modern technologies in accordance with the latest requirements of reliability and safety in the field of agricultural tires. The tires are characterized by a high level of grip and traction, good self-cleaning, while maintaining a high shock-absorbing capacity, which allows protecting the transmission and suspension units of a tractor orharvester from shocks and vibrations when working on soils and on hard road surfaces.
