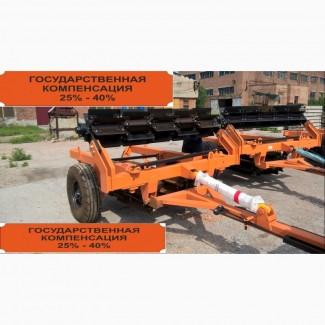

Katok Izmelchitelnyi vodonalivnoy pryamoi KPP-6, Zaporizhia region.

Characteristics

It is aggregated with tractors of traction class 1.4 MTZ-80/82, YUMZ-6
Semi-trailer method of aggregation
Productivity in 1 hour of the main time is 4.8...7.2 hectares.
Working width of capture 6+0.1 m
Working speed 12 km/h
Transport speed 20 km/h
Length (in working position) 3580 mm
Width (in working position) 6240 mm
Height (in working position) 1025 mm
Length (in transport position) 4930 mm
Width (in transport position) 2290 mm(//tractor-service.com)
Height (in transport position) 1670 mm
The total weight is 1690 kg.
Number of service personnel 1 person.
Tires 12-16 TU U 38.604-17-40-94
Pressure intires (during operation) 0.25 &plusm; 0.01
Tire pressure (with short-term and long-term storage) 0.1 &plusm; 0.01
Type of hydraulic cylinder 105.072.14.000-05, OST 105-208-88 80x40x630 mm

A hydraulic cylinder is used to overturn the roller when it is moved to the working or transport position. The hydraulic cylinder is connected to the hydraulic system of the tractor with the help of two hydraulic hoses and quick-disconnect couplings. The hydraulic hose is connected to the hydraulic cylinder with fittings. Each of their fittings has a throttle - a calibrated hole with a diameter of 1.6 mm for the passage of oil. The throttle provides a reduction in the speed of movement of the hydraulic cylinder rod.

The rink is attached to the tractor with the help of a drawbar. A support is placed in the front part of the drawbar. The support in the vertical and transport positions is fixed with a finger with a latch.

Twowheels are used for transporting the rink. The wheels rotate on conical roller bearings.
