ZhS-6 soybean harvester with a shoemaker Compensation from 25% to 40%, Zaporozhye region.

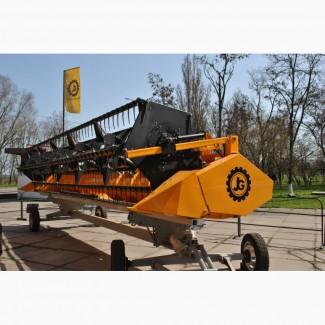

Reaper with Schumacher cutting device. (Knife for cutting crops).

Universality is one of the many advantages of the mechanism, and the ability to fix the beamharvester allows you to harvest various types of crops.

The working frame with a floating beam weighs only 2,495 kg.

The position of the reel is adjusted from the cabin of the combine, the hydraulic removal of the reel is carried out, a hydraulic motor or variator is installed to adjust the revolutions of the reel (depending on the model of the combine).

A feature of soybean harvesting is the need to mow it at a low cut and on moist, soft soil, shoes with plastic linings facilitate this, while avoiding soil sticking, and also copy the soil, which makes it possible to reach a cutting height of crops of 3 cm and reduce losses by up to 10%.

It allows working with various crops in the "hard" and "floating" knife modes.

The flexible cutting plate can be adjusted depending on the complexity of the field relief(//tractor-service.com)

Polyethylene pads on skis prevent the soil from sticking.

The planetary drive reduces the load on the knife head and extends its service life.

The hinged connection of the side dividers also allows you to copy the relief of the field.

The six-blade reel allows you to work with low-growing crops.

Adjustable rakes allow you to set the required angle of attack of the springs

The feed auger is protected by a safety clutch

The possibility of attachment to imported and domestic harvestersharvesters
