Cultivator KSHS- 12, Zaporizhia region.

KSHS-12 cultivator
It serves forpre-sowing preparation, loosening with access to moisture and air, breaking up clods and cutting the roots of weed plants.

Technical features
• Uniform immersion in the soil
to create an even sowing
layers
• Processing depth up to 12 cm.
• Overlap of the paw 75 mm.
• Rigid mechanical control
for uniform deepening.
• Even sole of the treated area
• Leveling and partial soil compaction
• Protection of soil from erosion and weathering.

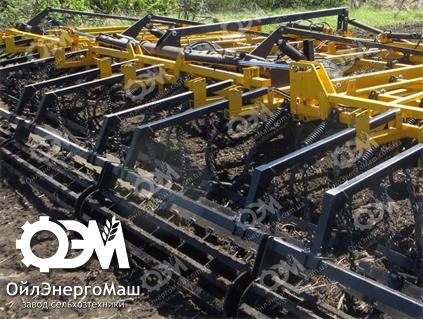

The rolling block provides:
• Reducing the size of lumps
• Elimination of irregularities
seed layer
• Decrease in quantity
air pockets, что
prevents the evaporation of moisture,
and also improves the chemical application process.

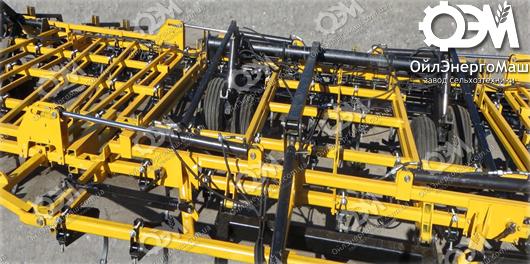

Rigid and durable frame construction is provided by:
• Bridge construction
frames
• Cross bars
with a section of 80x80x8 mm.
• Longitudinal bars with a section of 50x50x5 mm.
• Hydraulic adjustment
lifting of working bodies over
by the ground and the translation of the wings in
transport and work
position(//tractor-service.com)
• Processing depth
it is regulated by a screw
traction and support wheels
• A ground clearance of 360 mm allows you to overcome practically
any obstacles
• Doublewheels on the axles of the supporting frame and each section of the wing
• Processing speed up to 12 km/h
C-shaped racks
(Pr-va Case IH) and shooting
paws (Bellota avenue)
provide:
• Penetration into the solid
soil on higher ground
speed
• Uniform deepening и
distribution of harvest residues
• Increased resource
• Compression springs are more durable
and contribute to more uniform soil processing

Technical characteristics

Productivity
(during prime time), ha/h 7.5-12.0
Working speed, km/h up to 12
Width of capture, m. 12
Processing depth, see 5-12
Transport speed, km/h 20
Mass, kg. 8000
Pitch of working bodies mm. 152
Paw width mm. 230
Rack type C-shaped
The number of working bodies pcs. 77
Force on the spring kg. 82
Tractor power l/s от 240
