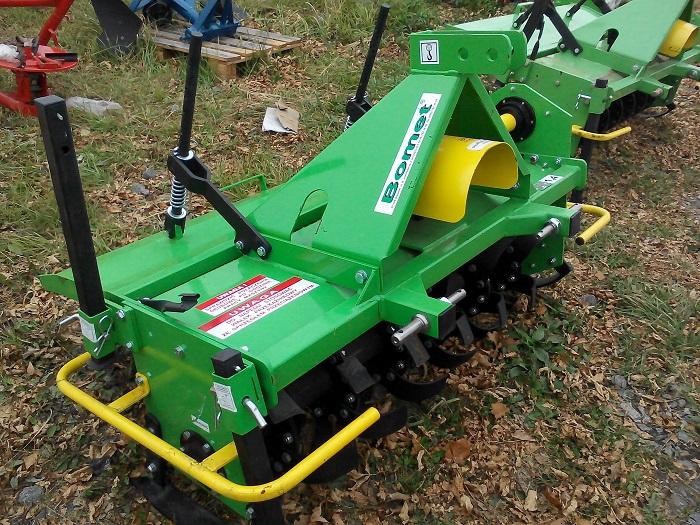

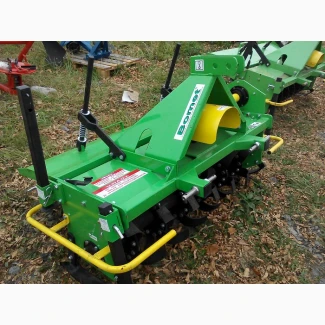

Hinged milling cutter 1.4 m by Bomet company

The mounted tiller is designed for loosening and mixing soil layers without rotation. In addition, the cutter breaks the blocks, cuts the stems of the rhizomes of weeds, allows to quickly carry out the final preparation of the fields after perennial crops. The ideal machine for final soil preparation after plowing meadows and pastures. A tiller can be used for mixing mineral fertilizers with the soil in cultivated fields and vegetable gardens. The advantage of tillers is the possibility of preparing the soil for sowing during one move to a depth of 12 cm. Ground milling cutters with a working width from 1.4 m to 2.0 m are available in the sentence.
On the rotating working shaft at a distance of 225 mmfixed disks with plate corner knives. The intensity of breaking the blocks is regulated by the movable rear casing. Raising the casing increases the size of the crushed soil particles, and lowering it causes a decrease in the crushed soil particles as a result of the pressure of the soil against the casing. The rotation frequency of the milling cutter is 265 rpm. To drive the tiller, it is necessary to use an articulated-telescopic shaft with a safety clutch to ensure the strength and reliability of the transmission.

Technical characteristics:
Name - U540/3
Working width - 1.4 m(//tractor-service.com)
The maximum processing depth is 120 mm.
Number of knivesdisks-6 pcs.
The distance between the knivesdisks-225 mm
Number of knives on the disk - 6 pcs.
Weight - 320 kg
The required power is 30/41 kW / hp.
