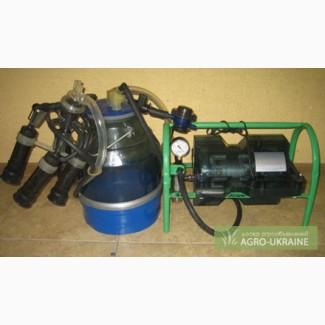

Milking machine Impuls PBK-4, Kyiv

Economy series milking machine for servicing from 1 to 3 cows.

The Impulse milking machine can milk cows in various modes. Starting from gentle, with a pressure of -0.03 mPa for cows with a very soft udder, up to -0.06 mPa for cows with a hard udder (allows the cow to be milked well). The pulse prevents the overflow of the milking bucket, it is protected against voltage drop in the electric network within the limits of 220 ± 22 Volts. The package includes a transparent polycarbonate container with a volume of 14 or 22 liters, with a lid and a cuff-type silicone gasket, four milking cups withrubber and a silicone cross that ensures hygienic connection. The nozzles of the milking rubber are equipped with roller locks, which prevent dry milking of the cow and make it easier to put the device on the udder. You can adjust the pulsation frequency. The kit includes an easy-to-remove silicone corner and a tee, which allow you to quickly disassemble and wash the milking device.

Main characteristics
Number of cows served at the same time 1
The maximum number of cows served by one device 3
Power supply 220(±22)V, 50Hz
Maximum power consumption, W 360
Maximum vacuum pressure, kg/cm2 -70 kPa

Type of vacuumpump dry membrane
Overall dimensions of the pump, cm 32x23x47
The capacity of the milking bucket, liters 14-22
Weight, kg 16.8(//tractor-service.com)
Delivery set

Vacuumpump, milking system with bucket, passport (instructions).
Additional equipment

Transparent silicone teat rubber, stainless steel pail, collector of increased capacity, double pulsation system, set of brushes for cleaning, lid of milking pail made of transparent plastic, cups made of stainless steel or polycarbonate.

Spare parts for milking machine IMPULS PBK-4

valve (8 pieces)
eccentric (1pc)
pump thrust (2pcs)
valve cover (4 pcs)
membrane (4 pcs)
plate-membrane (4 pcs. internal and 4 pcs. external)
Bearings (1 pc. big and 2 pc. small)
