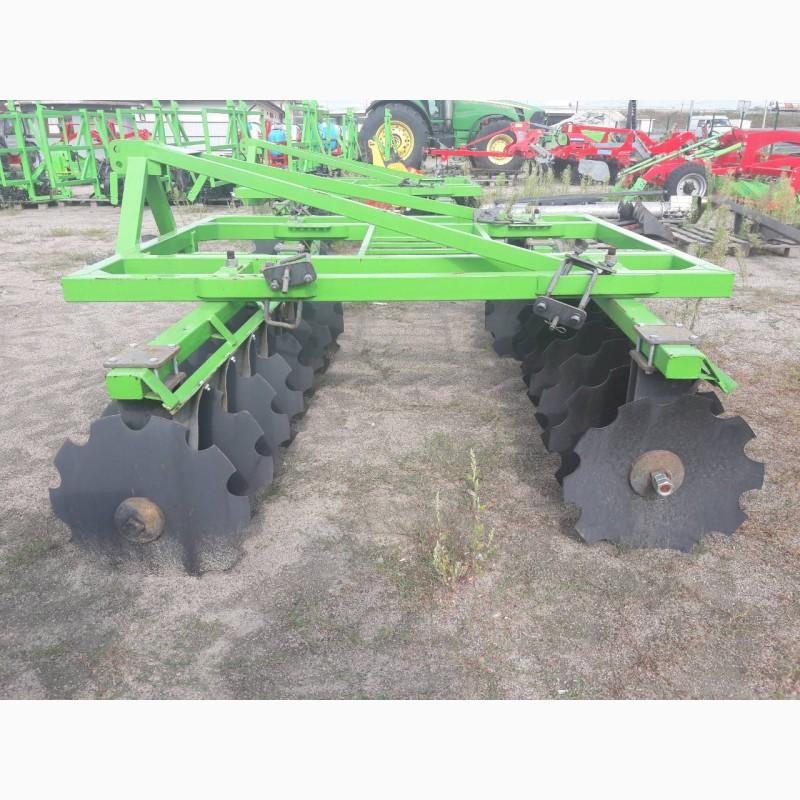

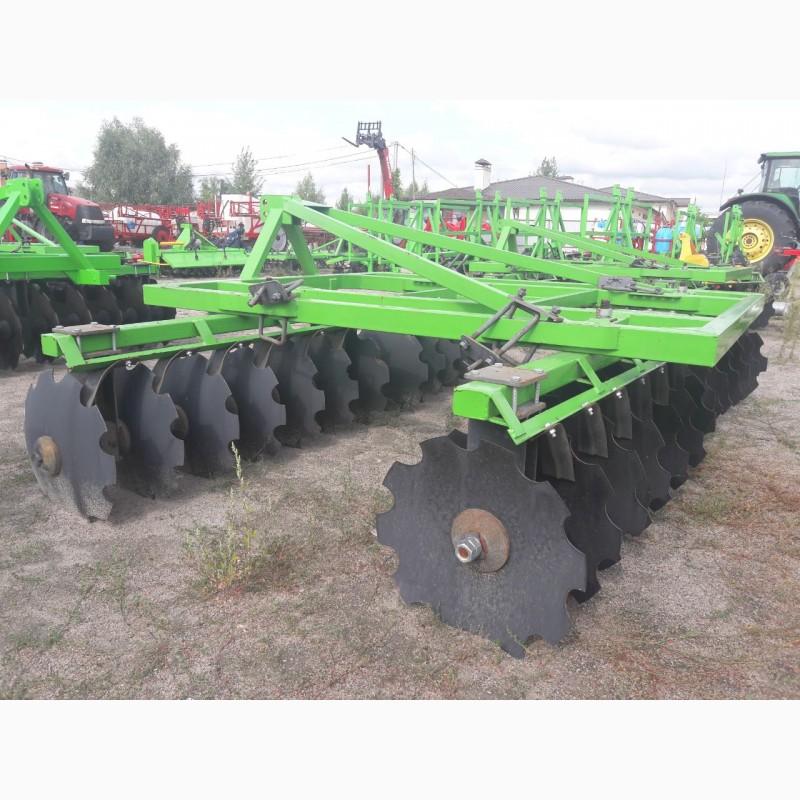

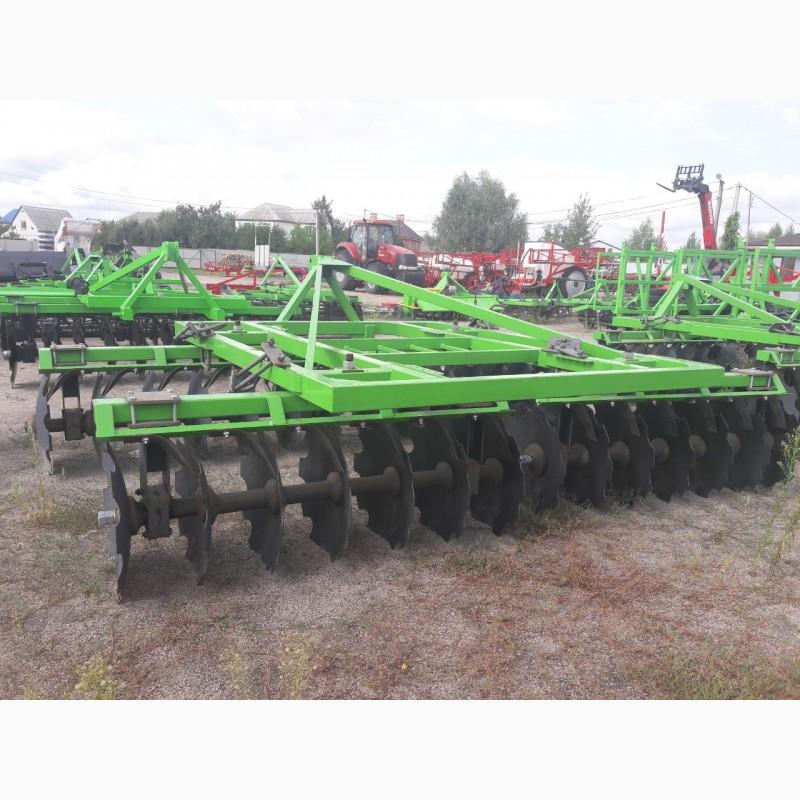

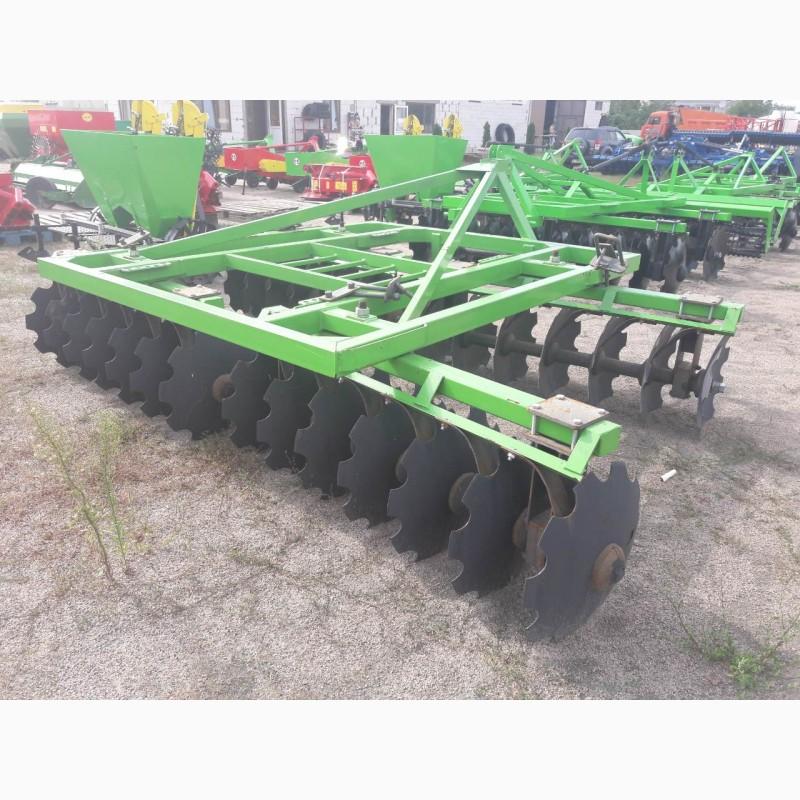

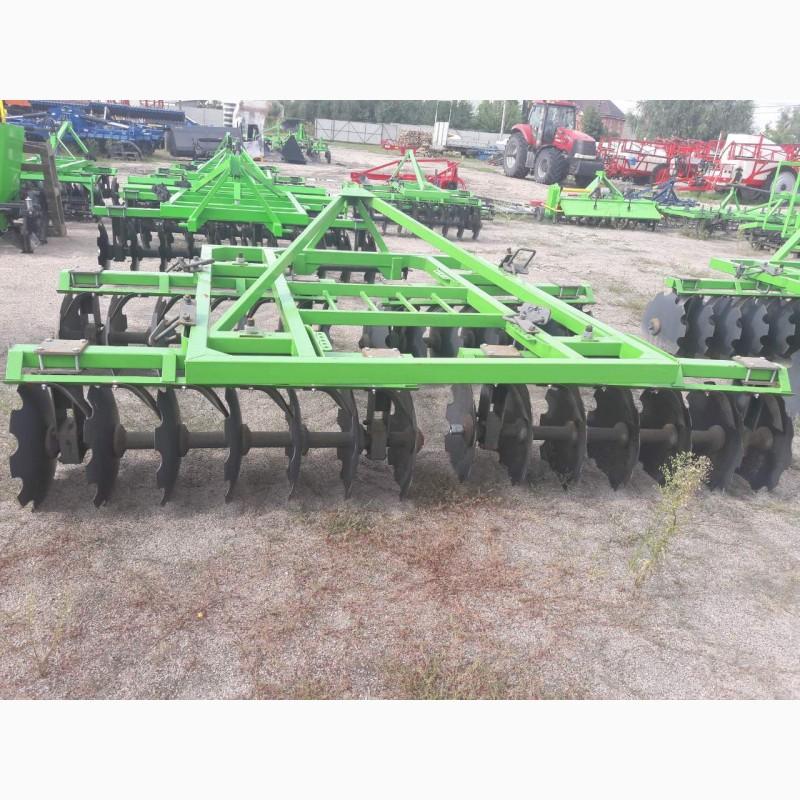

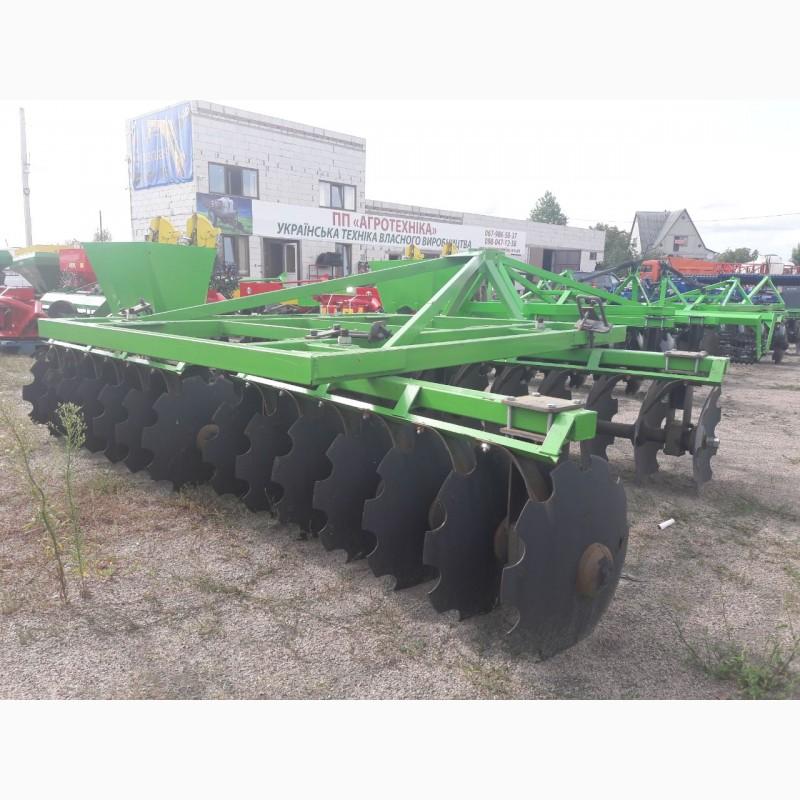

Disk mounted harrow 3.15 m from Bomet (Poland), Kyiv region.

Disk mounted harrow harrow 3.15 mfirms Bomet (Poland)

The 4-section mounted disc harrow U363/6 is designed for pre-sowing processing of dense soils plowed in autumn (except stony soils), guarantees normal operation when wet. The disk harrow can also be used for breaking up and breaking the sod layers after plowing on meadows and other pasture lands, as well as for performing harvesting husks immediately after cutting plants. Disc harrows can be used to cut and cover green manures and manure after spreading. The machine can also be used for mixing sown mineral fertilizers and lime with soil.
The series of 4-section harrows in the V system includes harrows with a grip width from 2.7 to 3.15 m. Each machine is equipped with a mount that allows it to be aggregated with a light string or heavy tubularroller. Setting the angle of attack (rotation) of the discs in the range from 7° to 22° allows you to get the desired quality of work depending on the changing conditions and type of soil. Harrow disk with a diameter of 510 mm To increase the safety of harrow maintenance during aggregation with a tractor, a hitch beam is used.

Technical characteristics:
The working width of the grip is 3.15 m.
The working depth of processing is 80-150 mm.
Overall dimensions in the working position (section installation angle 0 - max.):
- length – 2840-3060 mm
- width – 3190-3050 mm
- height – 1210 mm
Overall dimensions in the position for transportation
- length – 3060 mm
- width – 3030 mm
- height – 1210 mm(//tractor-service.com)
The weight of the harrow is 675 kg (with roller - 775 kg)
Working elements :
- type of discs – toothed.
- number of sections - 4 pcs.
- number of disks in the section - 7 pcs.
- the diameter of the disks is 510
- disc pitch – 230
Power consumption:
- tractor class - 1.4
- nom. Traction force – 14 kN
The power of the tractor is 65/88 kW/l. p.
Working speed - 5-10 km/h
The speed during transportation is 15 km/h.

They are located on the Great Market Square on the Kyiv-Odesa highway in the village of Glevakha
in stock
sending by the carrier NOVA POSHTA, self-pickup, delivery by our transport - 35 hryvnias. per km (one-way calculation)
