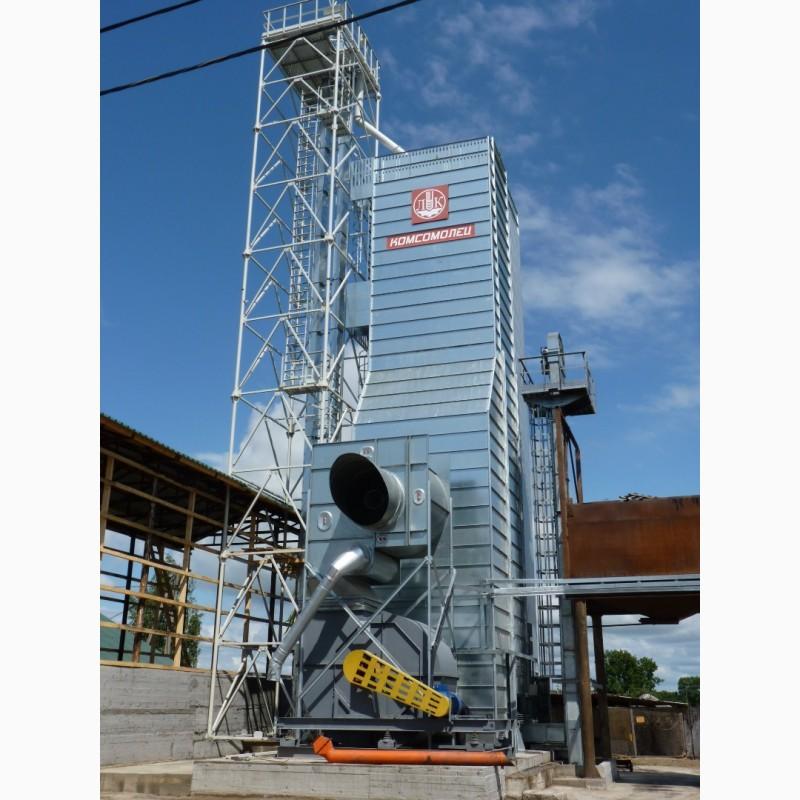

Mineral grain dryer U13-СШ-30, Chernihivskaya region.

We offer you to buy a mine dryer U13 СШ-30 of Ukrainian production!
This is a stationary flow-through grain dryer of the mine type. U13-СШ-30 is intended for drying seeds of wheat, sunflower, corn and other grain crops, ensuring high moisture extraction (6%) and purification of the spent drying agent (air) from light impurities. The grain dryer allows you to remove moisture from seeds, carefully controlling its temperature and humidity at all stages of drying, preventing overheating and overdrying. They provide a continuous and gentle drying process due to the low heat load on the grain. In the process of work, the required humidity of the grain at the output is automatically maintained, the speed of movement of the grain is regulated. This ensures the preservation of the sowing qualities of seeds (especially oilseed crops) during storage and transportation. The construction elements of the mine are made of galvanized steel and provide strength and durability in outdoor conditions. Cyclone dust separator cleans the air released into the atmosphere. Since significant dustiness occurs mainly during the unloading of the drying column, special dust shutters interrupt the drying air flow during the operation of the unloading mechanism to prevent the emission of dust into the atmosphere.
High performance:
• Wheat (drying at +120C): from 20% to 14% = 30 t/h, from 25% to 14% = 20 t/h, from 28% to 14% = 17 t/h;
• Corn (drying at +130C): from 20% to 14% = 28 t/h, from 25% to 14% = 19 t/h, from 28% to 14% = 15 t/h;
•Sunflower (drying at +110С): from 12% to 7% = 15 t/h, from 15% to 7% = 13 t/h, from 20% to 7% = 10 t/h;
A profitable offer: the У13СШ-30 grain dryer is included in the list of Ukrainian machinery for agriculture, the cost of which is partially compensated (up to 25%) by the state budget.
With the help of this grain dryer, you:
• stop spending money on transporting grain to the elevator and back;
• you will not waste time in queues at the receiver;
• you can set the initial and final humidity of production yourself and control contamination;
• do not pay for grain storage at the elevator and do not wait for permission when it can be taken away and you will not be charged for "natural losses", which is generally accepted atelevators;
• You will not be weighed, you yourself control the quality, cleaning and necessary humidity of the product;
• you will be able to sell grain at the time when the price for it is maximum, without the risk that it will spoil during storage.
Advantages:
• "Teplokomfort-Chernygov" LLC offers only complex solutions from the moment of your first call to installation and commissioning works;
• high reliability - all metal structures of dryers are made of galvanized steel S350GD+Z275-М-А with a coating class of at least 275 g/sq.m.;
• the design of the U 13-СШ-30 grain dryer allows you to use an external heat generator without much effort (including on pellets or straw);
• ensures a continuous and gentle drying process due to the low heat load on the grain. In the process of work, the required humidity of the grain at the output is automatically maintained, the speed of grain movement is regulated;
• mine design elements are made of galvanized steel and provide strength and durability in open air conditions;
• control ofgrain dryer automated. Automation is carried out on the basis of an industrial computer and an operator's work panel with touch control. All necessary information is constantly displayed on the screen of the operator's work panel;(//tractor-service.com)
• the operator is given the opportunity to create and, in the future, use his own drying recipes based on real drying parameters;
• heat generators with high efficiency, an electronic control system and coolant recirculation are used (due to the reuse of warm air from the cooling sections), maximum fuel economy is achieved;
• constantly changing direction of grain layer blowing;
• heat recovery from spent cooling air allows to reduce fuel consumption;
• hatches for emergency unloading of grain in case of fire are located in the lower part of the drying column;
• service and technical support is provided 24 hours a day, 365 days a year;
• the warranty is 12 months;

Technical characteristics:
Electric power: 57 kW
Burner power (gas): 3 MW
Maximum gas consumption at an ambient temperature of +10°С
(with gas combustion heat of 9.3 kWh/m³), m3/h., no more than = 230;
Drying agent consumption, thousand m3/h, not less than: 87
Gas pressure at the inlet, mbar: 600
Air pressure in the pneumatic system, kgf/cm² not less than: 6
Total capacity, m³: 58
Dimensions (no more) mm: length 11500, width 4455, height 19900
Weight of the structure, kg, no more: 24500
