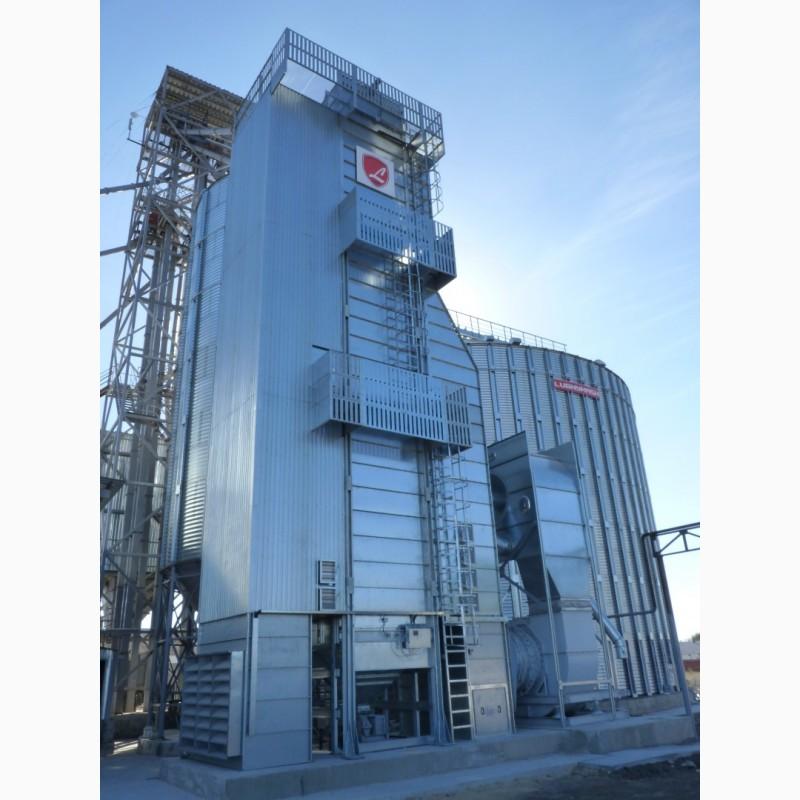

Mineral grain dryer U13-СШ-20, Chernihivskaya region.

We offer you to buy a mine dryer U13 СШ-20 and forget about it foreverelevators!
This is a stationary flow-through grain dryer. The drying process takes place in automatic mode. Wet grain in the drying zones is exposed to the drying agent (dry hot air). To protect the material from condensation and make it suitable for storage, before unloading from thegrain dryer it is cooled and immediately unloaded.
Excellent performance:
• Wheat (drying at +120C): from 20% to 14% = 20 t/h, from 25% to 14% = 14 t/h, from 28% to 14% = 12 t/h;
• Corn (drying at +130C): from 20% to 14% = 18 t/h, from 25% to 14% = 12 t/h, from 28% to 14% = 9.5 t/h;
•Sunflower (drying at +110С): from 12% to 7% = 10 t/h, from 15% to 7% = 8.5 t/h, from 20% to 7% = 6.5 t/h;
A profitable offer: the U13СШ-20 grain dryer is included in the list of Ukrainian equipment for the agricultural sector, the cost of which is partially compensated (up to 25%) from the state budget.
With the help of this grain dryer, you:
• stop spending money on transporting grain to the elevator and back;
• you will not waste time in queues for the receiver;
• you can set the initial and final humidity of production yourself and control contamination;
• do not pay for grain storage at the elevator and do not wait for permission when it can be taken away and you will not be charged for "natural losses", which is generally accepted at elevators;
• You will not be weighed, you yourself control the quality, cleaning and necessary humidity of the product;
• you will be able to sell grain at the time when the price for it is maximum, without the risk that it will spoil during storage.
Advantages:
• "Teplokomfort-Chernigov" LLC offers only complex solutions from the moment of your first call to installation and commissioning works;
• there is a possibility of conversion to other types of fuel, including straw;
• the warranty is 12 months;
• ensures a continuous and gentle drying process due to the low heat load on the grain. In the process of work, the required humidity of the grain at the output is automatically maintained, the speed of movement of the grain is regulated;(//tractor-service.com)
• mine design elements are made of galvanized steel and provide strength and durability in open air conditions;
• in order to protect the material from condensation and make it suitable for storage after drying, it is cooled in the corresponding grain cooling zones before unloading from the dryer;
• heat generators with high efficiency, an electronic control system and recirculation of the coolant are used (due to the reuse of warm air from the cooling sections), maximum fuel economy is achieved;
• high-performance SOC Intel processors are used. Entering commands and outputting information about grain drying processes is provided by a touch panel with a diagonal of 10.4´´
• service and technical support is provided 24 hours a day, 365 days a year.

Technical characteristics:
Electric power: 32 kW
Burner power (gas): 2 MW
Maximum gas consumption at an ambient temperature of +10°С
(with gas combustion heat of 9.3 kWh/m³), m3/h., no more than = 150;
Drying agent consumption, thousand m3/h, not less than: 65
Gas pressure at the inlet, mbar: 600
Air pressure in the pneumatic system, kgf/cm² not less than: 6
Total capacity, m³: 43
Dimensions (no more) mm: length 11000, width 3800, height 15560
Weight of the structure, kg, no more than: 20500
