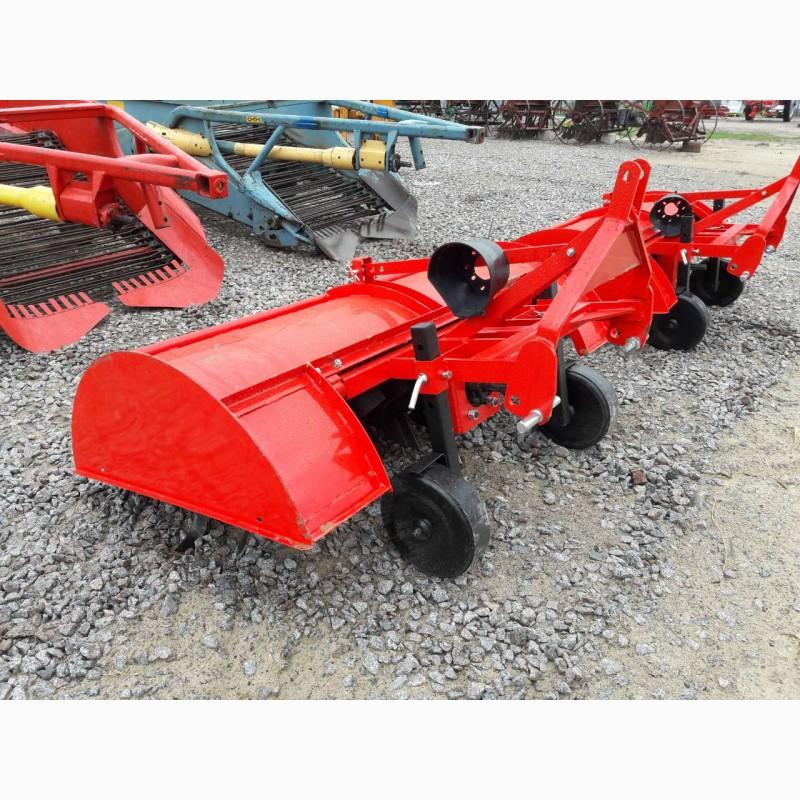

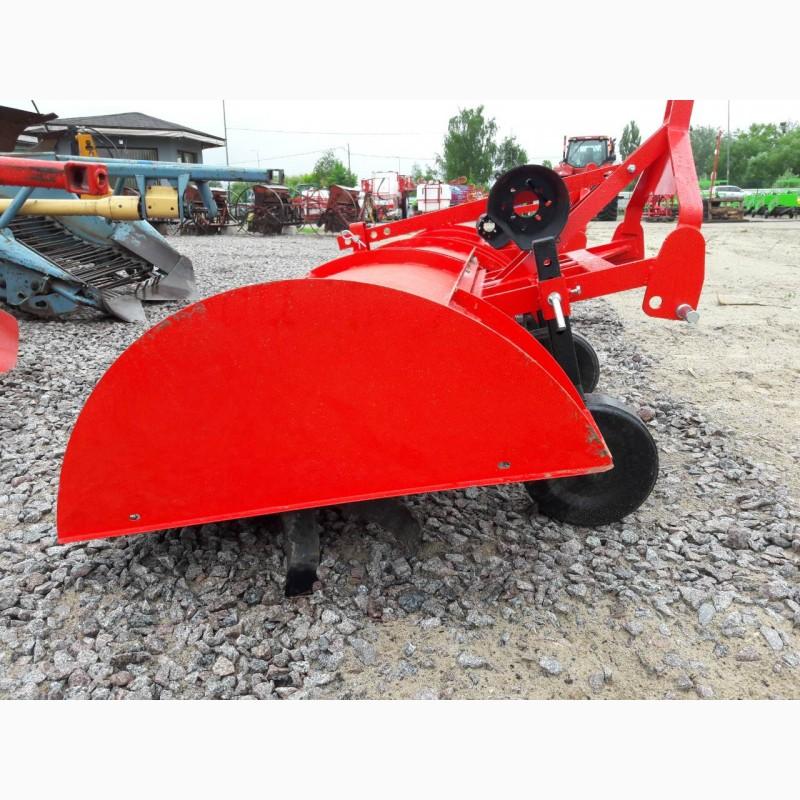

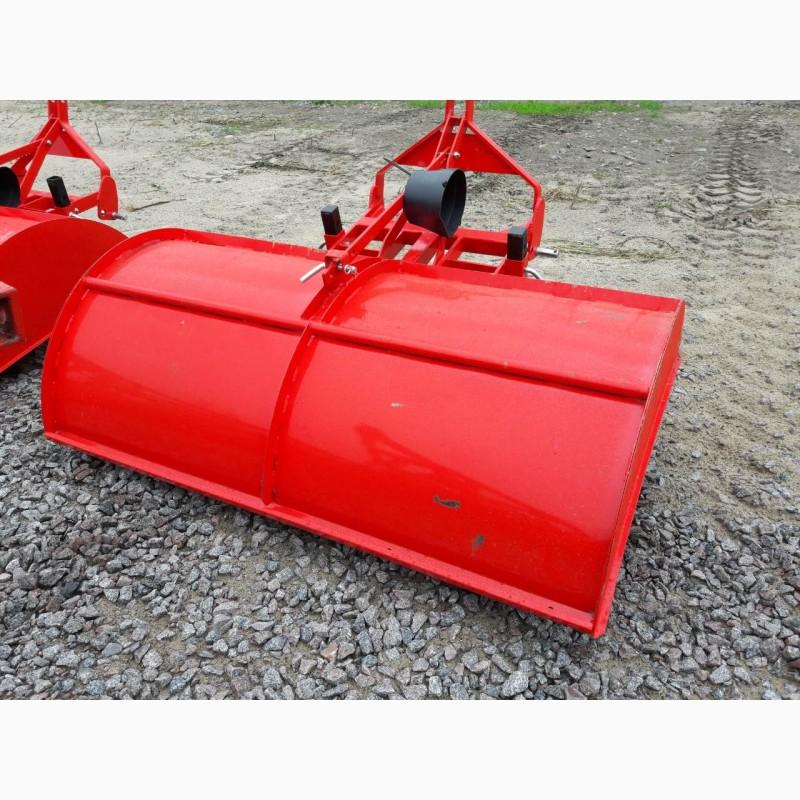

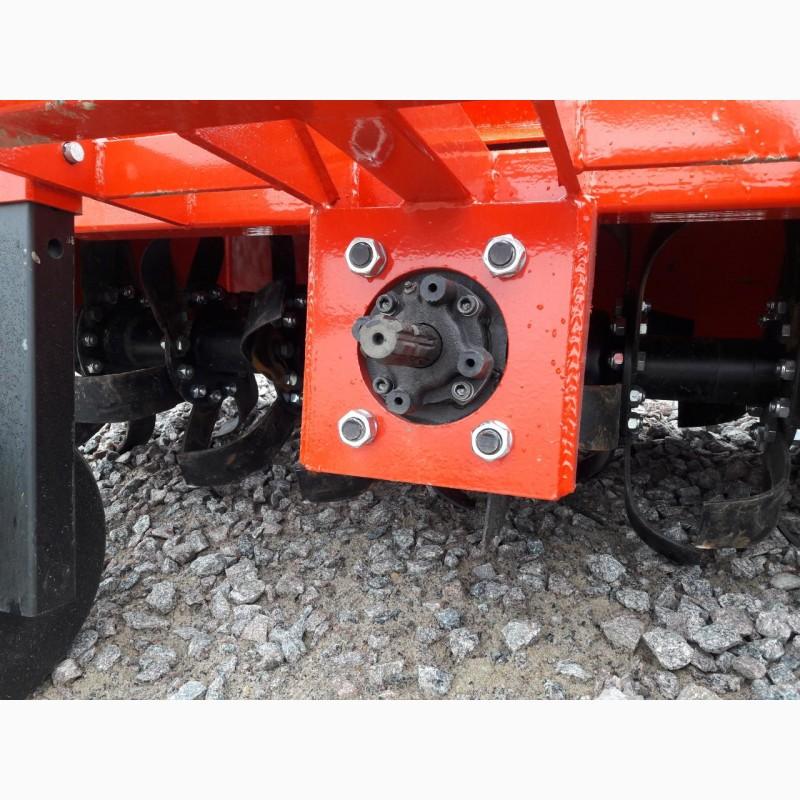

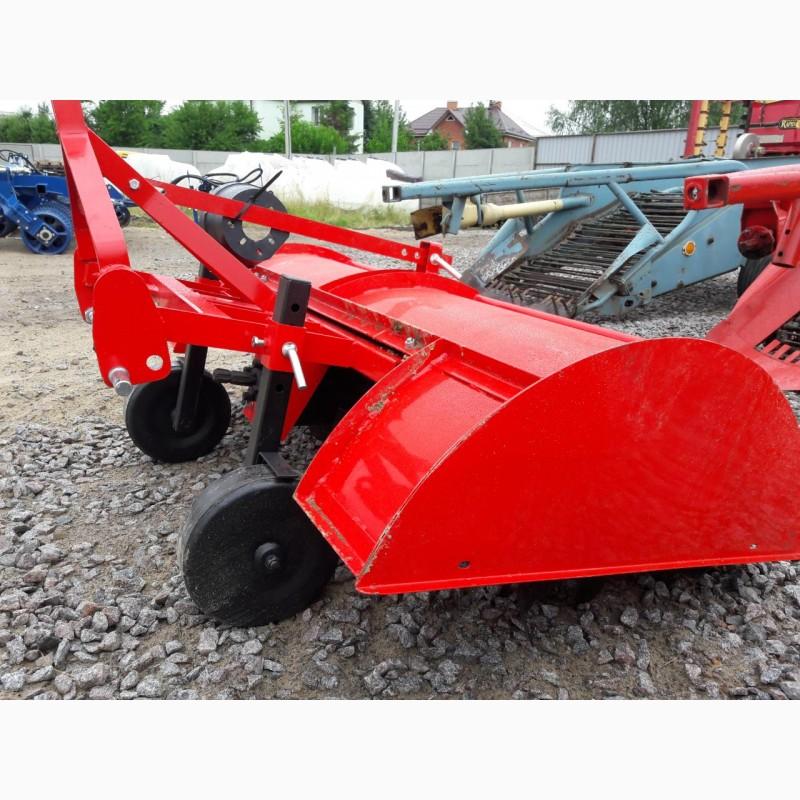

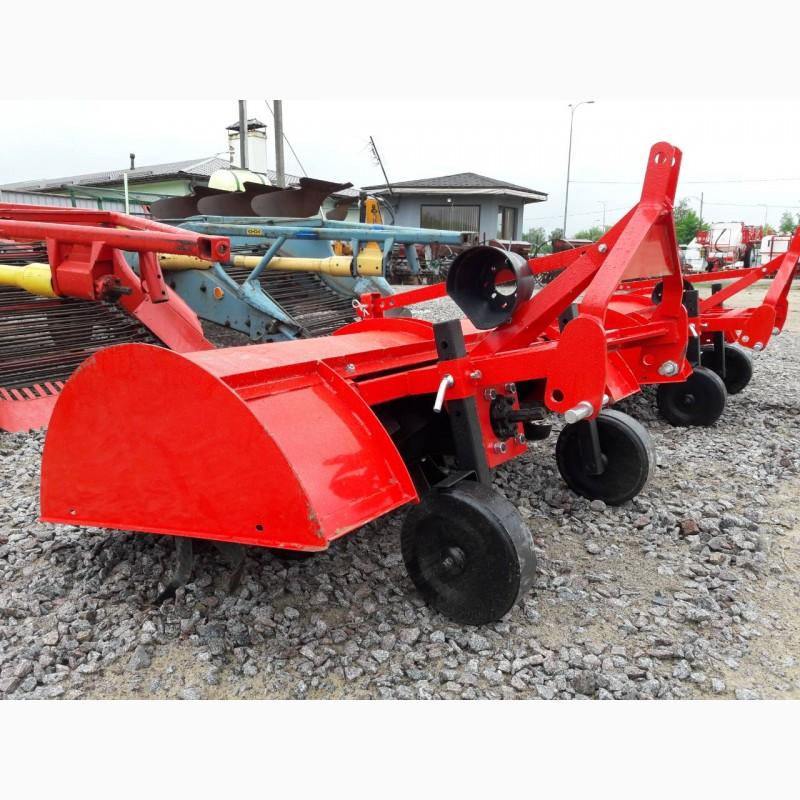

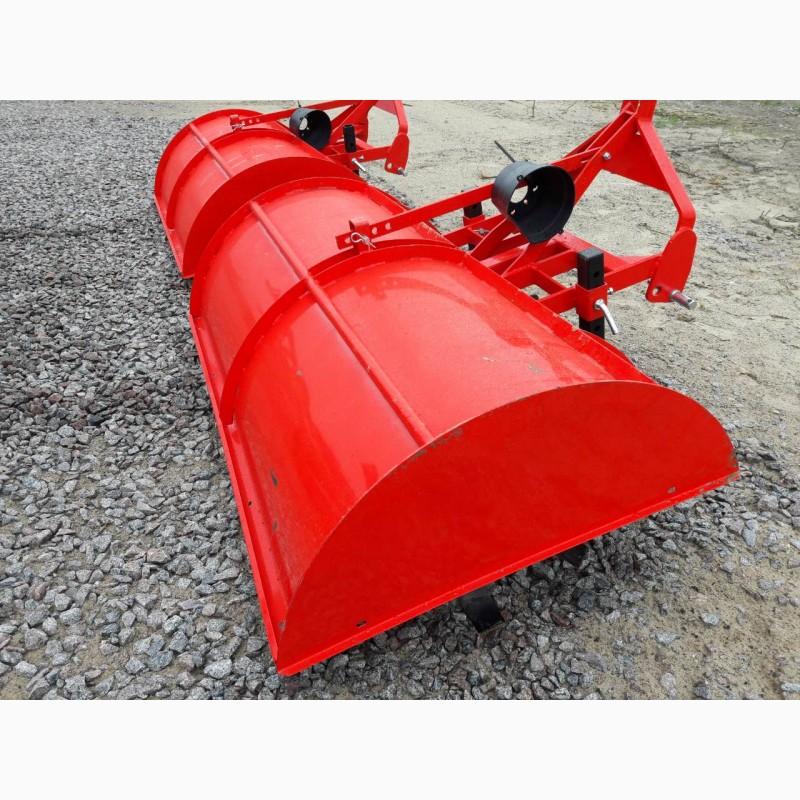

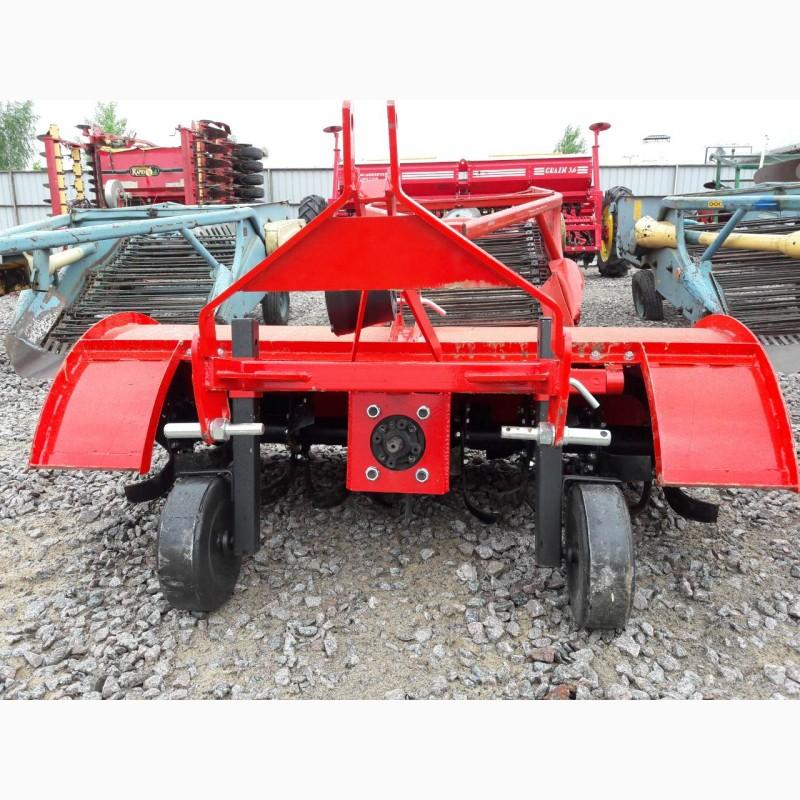

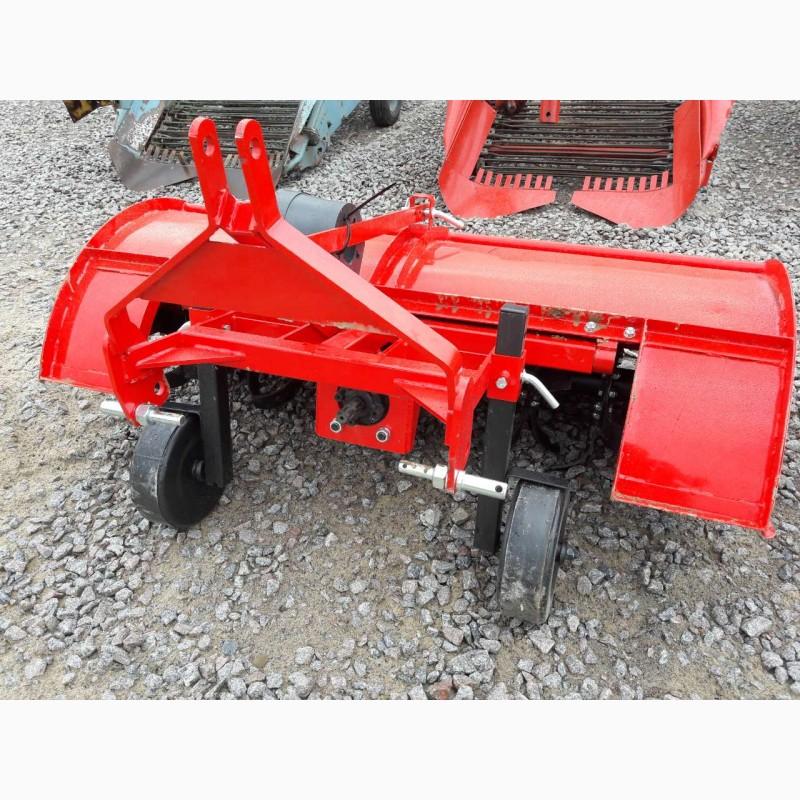

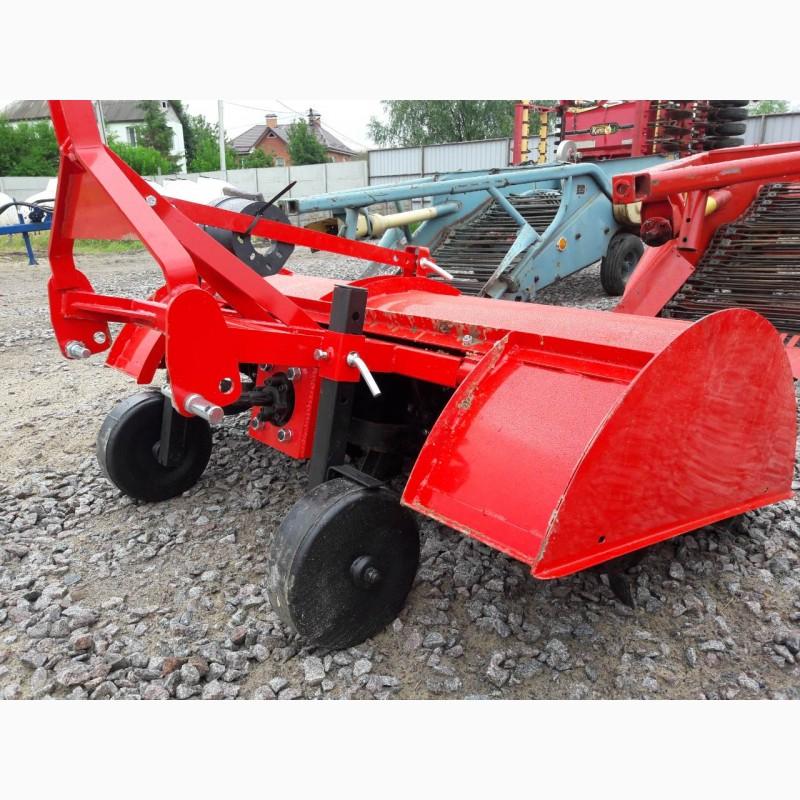

Freza 1, 6 m for a mini-tractor of the Wirax company (Poland), Kiev region.

Freza 1.6 m on a mini-tractor Wirax (Poland) company
The 1.6 m milling cutter of the Polish manufacturer Wirax is designed for continuous pre-sowing and pre-planting processing of medium and heavy soils, weed destruction, mixing fertilizers and plant residues with the soil, and for inter-row tillage in gardens and vineyards to a depth of up to 15 cm. The milling machine can be used both in agricultural enterprises and in farms and individual households.
It is aggregated with tractors that have a three-point hitch system and a rotation frequency of the power take-off shaft of 540 rpm..

Technical characteristics:

Destination indicators:
productivity, ha/h
- according to the main time - up to 0.96
- by variable time - up to 0.81
- according to operating time - up to 0.76
aggregation, classtractor:
- traction class - 0.6
- power, kW – 22
- GDP rotation frequency, rpm. – 540
Working speed of movement, km/h - up to 5
Working width of capture, m - 1.6
Number of service personnel, people – 1

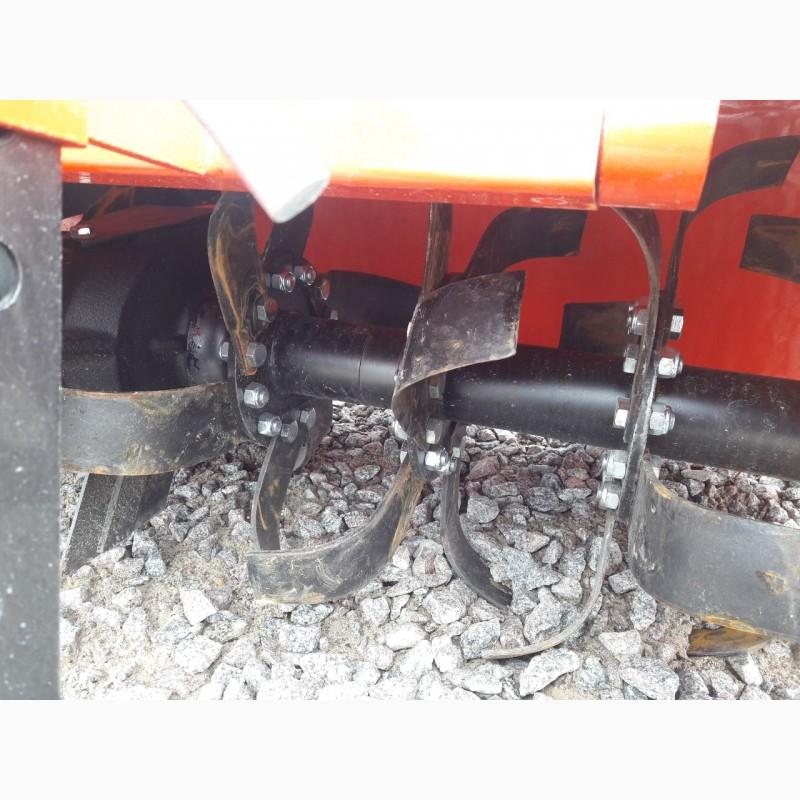

Number of knives, pcs.. – 48
The overall dimensions of the milling cutter in the working position are not more than, mm:
- length – 1400
- width – 2000
- height - 930
Operational and technological coefficients:
- technological service, not less than - 0.98
- reliability of the technological process, not less than - 0.99
- use of variable time, not less than - 0.68
- use of operating time, not less than - 0.65(//tractor-service.com)
Mass of the cutter, kg :
- structural - 300
- total – 310
Quality indicators:
- depth of tillage, cm - up to 15
- trimming of bkryans, %, not less than - 95
- ridgedness of the field surface, cm, no more than – 3
- soil crumbling (fractions up to 10 mm in size inclusive), %, not less than – 80
- root mean square deviation of soil tillage depth, cm – 2
Reliability indicators:
- average earnings per failure of the second group of complexity (failure criteria: - damage to gear gears, jamming of bearings, damage to seals), hours, not less than - 60
- variable operational maintenance time, hours, no more than - 0.2
- specific total operative labor intensity of failure elimination, man-hours/hour, no more than – 0.02
- readiness factor, not less than :
- according to operational time - 0.98
- taking into account organizational time -0.97
- service life, years, not less than – 7
Transportation indicators:
- overall dimensions of the cutter in the transport position, mm, not more than:
- length – 1400
- width – 2000
- height – 1230
- ground clearance, not less than, mm – 300
- transport speed, not more than, km/h - 15
Indicators of manufacturability
- specific material density, kg/m, no more than – 190

It is located on a large shopping area on the Kyiv-Odesa highway in the village of Hlevakha str. District 55-D
in stock, shipping by carriers, actual removal, delivery by our transport - 45 hryvnias. per km (one-way calculation)
