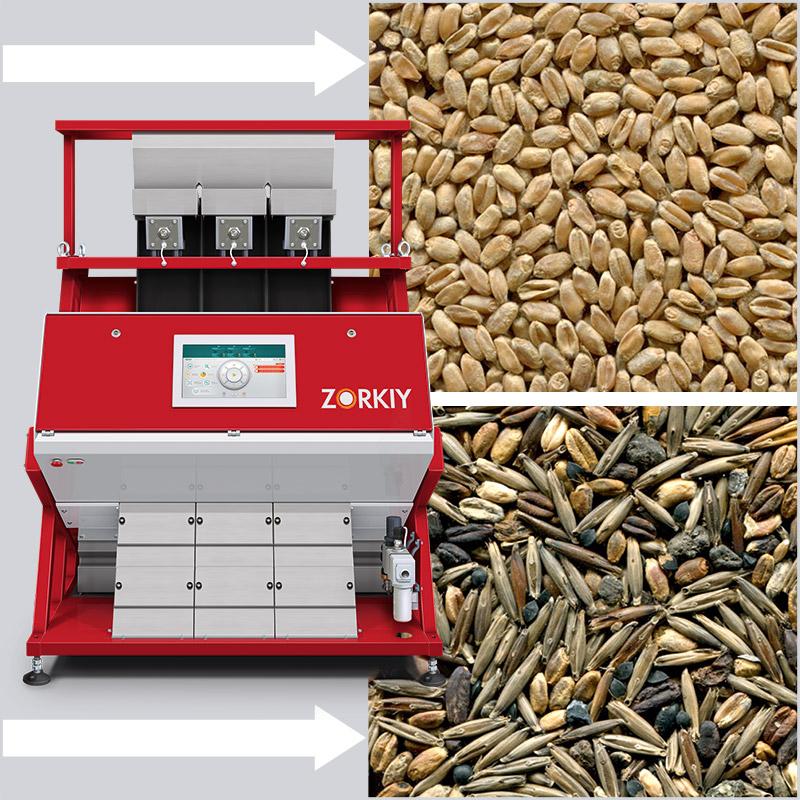

Zorky series photo separator (ZORKIY), Dnepropetrovsk region.

Model seriesphotoseparators series ZORKIY from 1 to 3 sections, which allows you to choose the device depending on the volume of production, from 50 kg to 15 tons/hour! The universal modular design of the device is designed in such a way that when the volume of production (sorted product) is increased, there is no need to purchase a more powerful device, it is enough to install an additional section.

1. Ability to sort a wide range of bulk products;

2. Latest developments in the field of optics and mechanics;

3. Exclusive LED lighting (RGB LEDs);

4. Unique software;

5. High detail of the image of the sorted product, the minimum size of the defect is 0.13 mm;

6. Increased sorting accuracy;

7. Intelligent quality control system of the sorted product;

8. The possibility of individual configuration of cameras according to the client's needs: monochrome configuration, bichrome, NIR, InGaAs, RGB configuration;

9. High-sensitivity CCD cameras with a resolution of 2048 pixels

10. Image processing without delay and distortion, optimal reading speed;

11. The ability to set the sizes of defective spots on the grain surface;

12. The possibility of sorting the product by two specified parameters of the spot defect at the same time, it is also possible to sort by two spots with different parameters at the same time;

13. Absence of "dead" product inspection zones;

14. Touch screen for controlling the operation of the device with a diagonal of 15.6 inches;

15. Possibility of photo/video analysis of the sorted product image;

16. Visualization of device settings and functioning;(//tractor-service.com)

17. Universal block — modular construction;

18. Automatic self-cleaning system of the viewing area;

19. High reliability and ergonomic design of the device;

20. Device configuration for the client's tasks;

21. High-speed system of blowing out unsuitable product;

22. Low air consumption;

23. Reduced response time to the release of an unsuitable product;

24. Setting up the device via the Internet;

25. 100% quality control at all stages of the device's operation.

2048 - Japanese-made pixel CCD camera with a resolution of 0.13 mm provides improved quality and high detail of the image of the sorted product, which guarantees high-quality analysis and increases sorting accuracy. A flexible system of adjusting and controlling the size of the defect ensures the constant quality of a suitable product.

Photo gallery of photo separator "Zorky" >

The intelligent self-adjusting sorting quality control system processes the video signal of the product flow in real time, which serves as a guarantee of stable cleaning during the entire time of operation of the device.

The ideal ratio of the width of the tray and the viewing angle of the cameras prevents distortion of the image at the edges of the tray, and as a result ensures the accuracy and quality of the sorting of the overall product flow.

The width of the ejectors of 5 mm ensures accurate blowing out of unsuitable product, both large and small fractions, minimizing losses of suitable product during sorting.

The design of the nozzles ensures low air consumption. The ejectors are installed directly in the nozzle block, which reduces the reaction time to the emission of an unsuitable product to a minimum, and contributes to the concentration of waste.

The touch screen of the computer system with a diagonal of 15.6 inches visualizes all functional parameters and analyzes the signal. Special functions allow you to display and analyze a video/photo image of sorted product particles on the screen.

A variety of camera configurationsphotoseparator allows to ideally choose the necessary set of inspection cameras depending on the sorting task, which guarantees the purity of the product. The maximum configuration is 4 cameras per section, any of which can be RGB, NIR, InGaAs.
