Spray injector IDK firm Lechler (Germany), Kiev region.

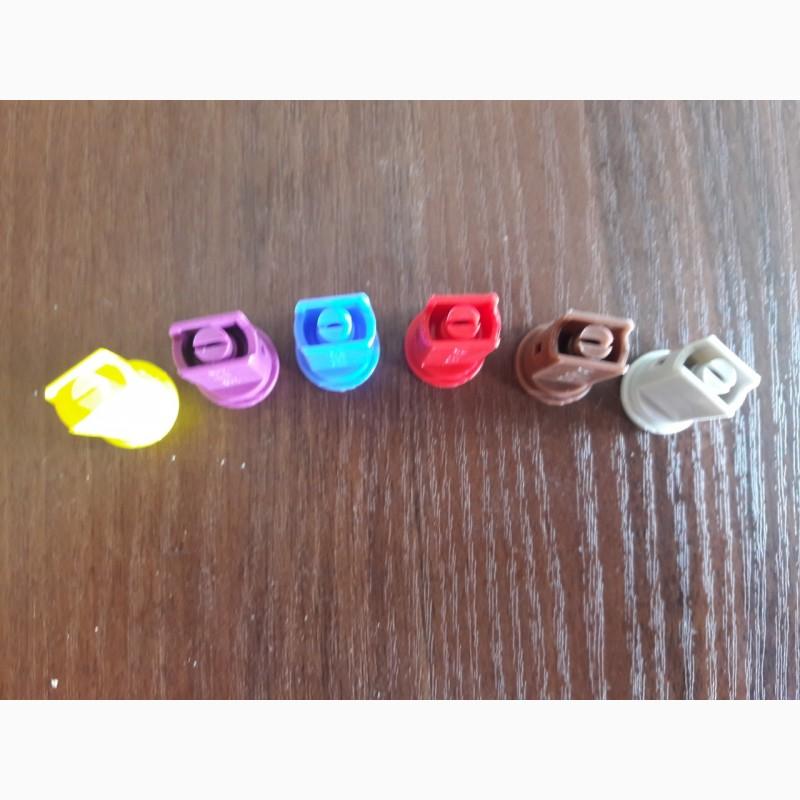

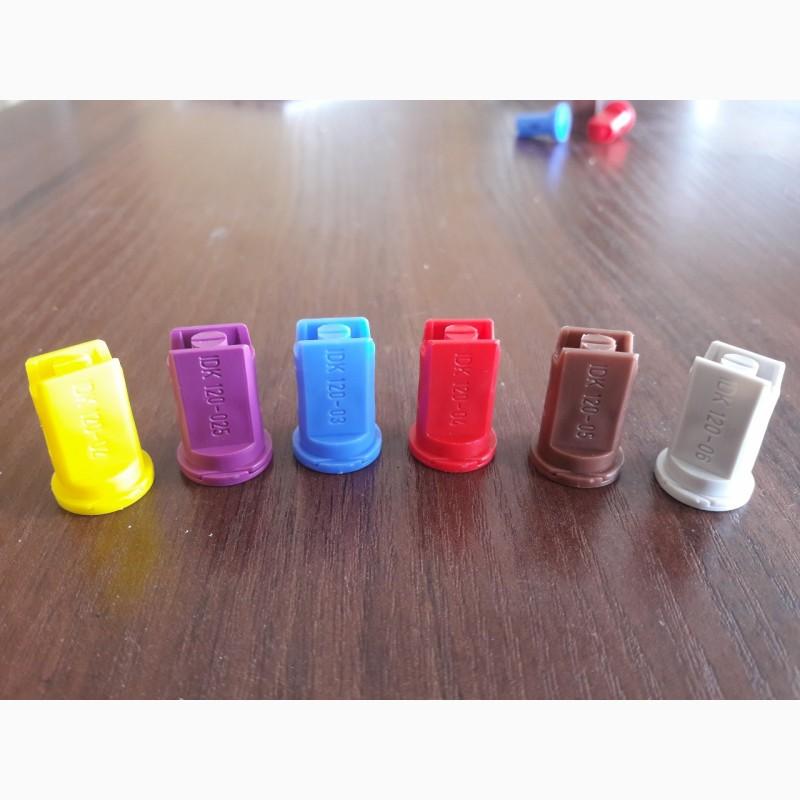

Spray injector IDK of Lechler (Germany)

Torch opening angle: 120°/90°
Material: POM, PP, ceramics
Characteristics
Air-suction flat torch sprayer
Ranges of optimal working pressure:
IDK-01 to -03: 1.5 to 3 bar
IDK-04/-06: 1.0 to 3 bar
IDKN-03/-04: 1.0 to 3 bar
Good anti-wear characteristics at pressure up to 3.0 bar.
At a pressure higher than 3 bar, they are inferior to the well-known anti-snow sprayers ID and IDN due to a smaller spectrum of droplets.
Very compact design (length 22 mm, seat 8 mm)
Suitable for all bayonet caps with a seat of 8 mm and for union nuts.
The following certifying organizations are included in the list for drift reduction: LERAP, JKI (formerly BBA), Staatscourant, SPF, Hjälpreda, ÖAIP and Equipement de limitation de la dérive de pulverization(//tractor-service.com)

Spectrum of application
Introduction of SSR and growth regulators
Partially suitable for applying liquid-crystalline fertilizers (KAS);
working pressure range for pure KAS:
IDK-01 to -03: 1.5 to 2.5 bar,
IDK-04 to -06; IDKN-03/-04: 1.0 to 2.5 bar

Advantages of atomizers IDK
Inexpensive alternative to standard slot atomizers
Simple installation without additional adapters
One-component design with an easy-to-remove injector
Wear-resistant and not prone to clogging casing
Very good thickness of the coating and penetration of the hardwood massif
Designed to work at a wind speed of up to 5 m/s
