Productivity of
bulk grain mass 0.75 t/m3 or 0.5-50 t/h
Productivity for flour with a volumetric weight of 0.50 t/m3 from 0.5 to 200 t/h
The height of the noria is 5-30 m.
The width of the tape is 150-450 mm.
The speed of the tape is 1-3 m/s.
Electric drive power 2-18 kW

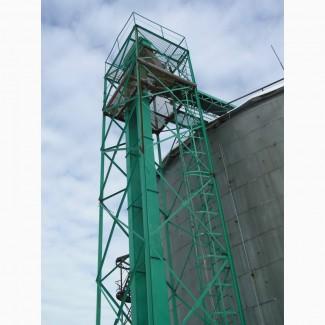

Belt tunnels are used for transporting grain cargo and building materials to a certain height. Thanks to the simple design and high performance, vertical type hoists have found wide application in the agricultural and construction industries.
(//tractor-service.com)
The main
purpose of elevators found in the transportation of bulk materials, such as:
grains crops
bulk building materials
The advantages are small dimensions, reliable and simple construction, lifting to a great height.
The design of the device consists of a tape that serves as the main traction body. The working parts of the device are buckets fixed to the tape with bolts. Each elevator is equipped with two drums, the lower one is placed in the shoe, the upper one is in the head of the noria. The tape is placed in a special box connecting the head and shoe.
At the client's request, an additional installation of a technological system for controlling the speed of the tape, a support, and an alarm is provided for the noria.
GUARANTEE! Start-up and adjustment, training, delivery, as well as post-warranty service.
