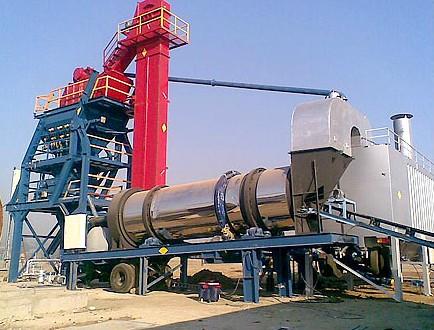

Mobile Asfaltobetonny Zavod Sinosun MAP 1000 (80 t/h), Kyiv

Plant specification:

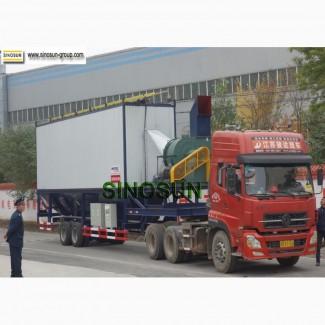

1. Mobile Aggregate Supply System

◆ The hopper for storing the unit and the collective tape feeder are mounted on one mobile chassis.
◆ The tape feeder, which has a frequency converter, with adjustment of a large range of speeds, so it can work smoothly and efficiently. There is a vibrator on the wall of the bunker, which prevents blocking.

Bunkers for unit storage Quantity - four
Capacity bunkers 6.5 m3/each,
Frequency control (Germany) Siemens.

2. Mobile drying drum with a burner and a lifter

The mobile drum drum has 4 friction wheels, which are driven by four synchronous motors. It works smoothly, with a low noise level.
◆The liquid fuel burner has multifunctional devices for the use of fuel oil and diesel.

Drying Drum - Diameter Φ 1500 mm× 6600 mm

The thickness of the boiler room steel is 12 mm.
Insulation thickness 50 mm mineral wool insulating layer, stainless steel coating
Max. capacity 104 t/h (unit humidity: 3%)

HotElevator
Capacity 104 t/h

Liquid fuel burner (Diesel, fuel oil)
Type and brand FRD China or Ebico (Italy)
Spraying fuel Sprayer - high-pressure fuel pump
Fuel consumption 550 kg/h

3. Mobile dust removal system

This dust collection system is equipped with a primary cyclone dust collector
◆. The secondary dust collection system is a bag filter. Bags use material with high heat resistance - Nomex (USA).

Secondary - sleeve filter
The area of the filter is 385 m2
Bags USA, Nomex

Air flow capacity 34,000 m3/h
Ringelmann smoky blackness Ⅰ
Air emissions ≤ 20 mg/Nm³

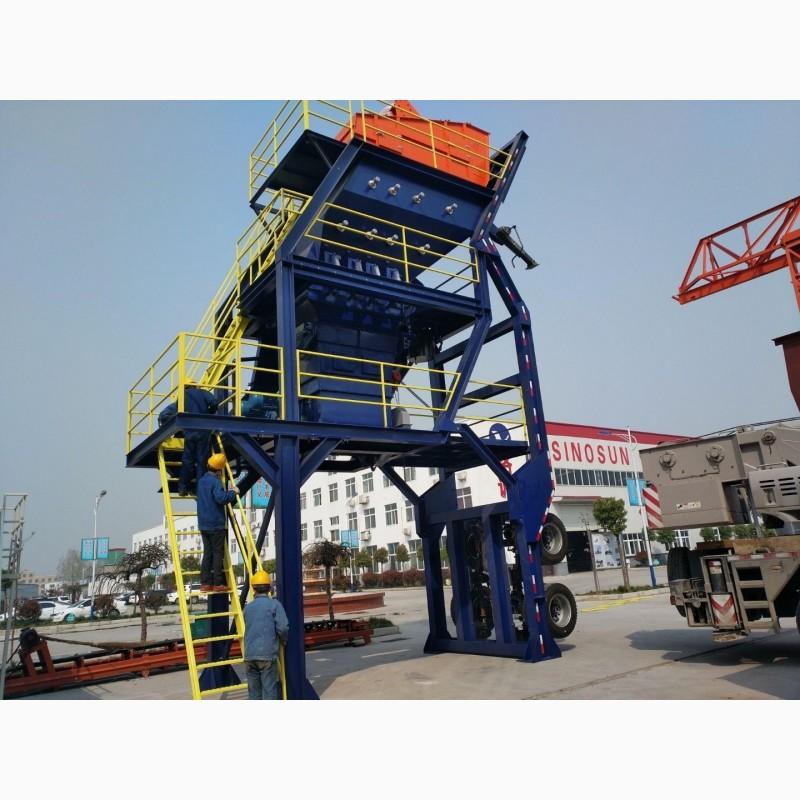

4. Mobile mixing tower
◆ Vibroscreen produced by the Italian company OLI, stable amplitude.
◆ Weighing sensor – USA Mettler Toledo.(//tractor-service.com)
Screening area 19.8 m2

Bunker for storing hot aggregate

Bunker for storing hot unit 4 pcs.
Overflow hopper 1 pc.
Level indicator 8 pcs. (4 High Level, 4 Low Level)
AGG weighing sensor (Mettler Toledo, USA)

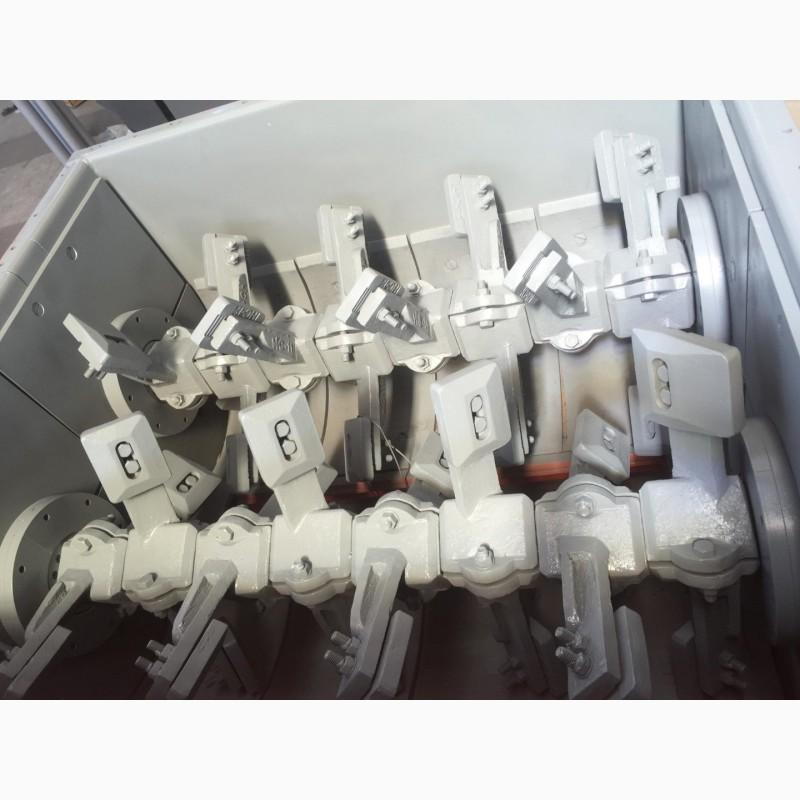

Mixer
Mixer type Asphalt mixer with two shafts
Capacity 1000 kg/lot.
Bituminous spray pump
Power 7.5 kW

Pneumatic System
Air compressor 3.0 m³/min,
Air cylinder 1000 L

5. Electroheating bitumen system & Heating system
◆ The capacity is: 30 tons, mobile
◆ The bitumen tank can be mobile or stationary (option)

Insulation - 50 mm mineral wool insulating layer, stainless steel coating.

Bitumen recycling pump, pipes, valves.

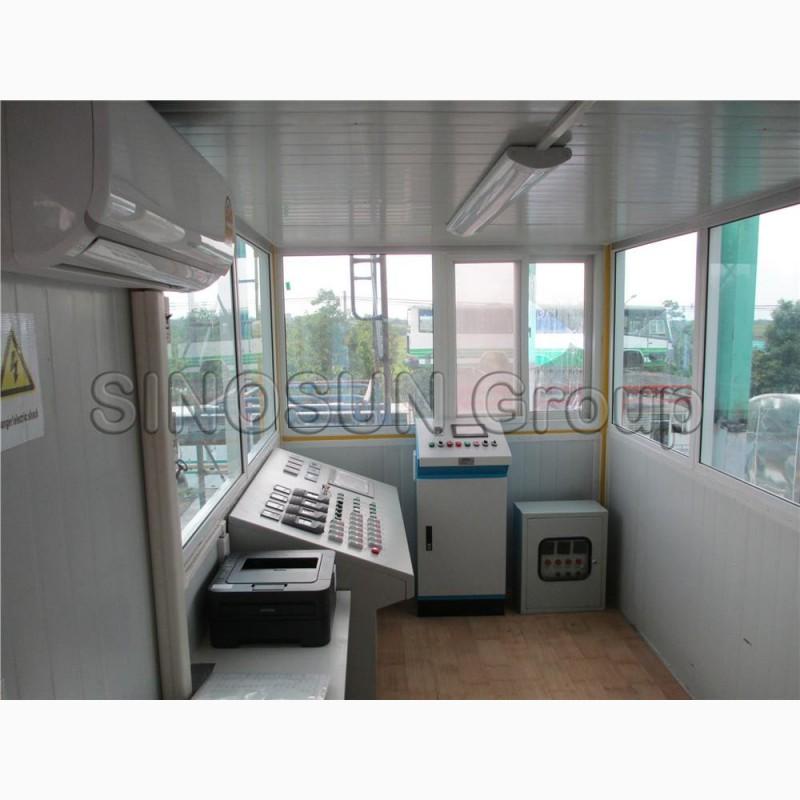

6. Mobile Control System - Russified

The computer control system uses advanced electronic components from Germany Siemens, which ensure reliability and durability.

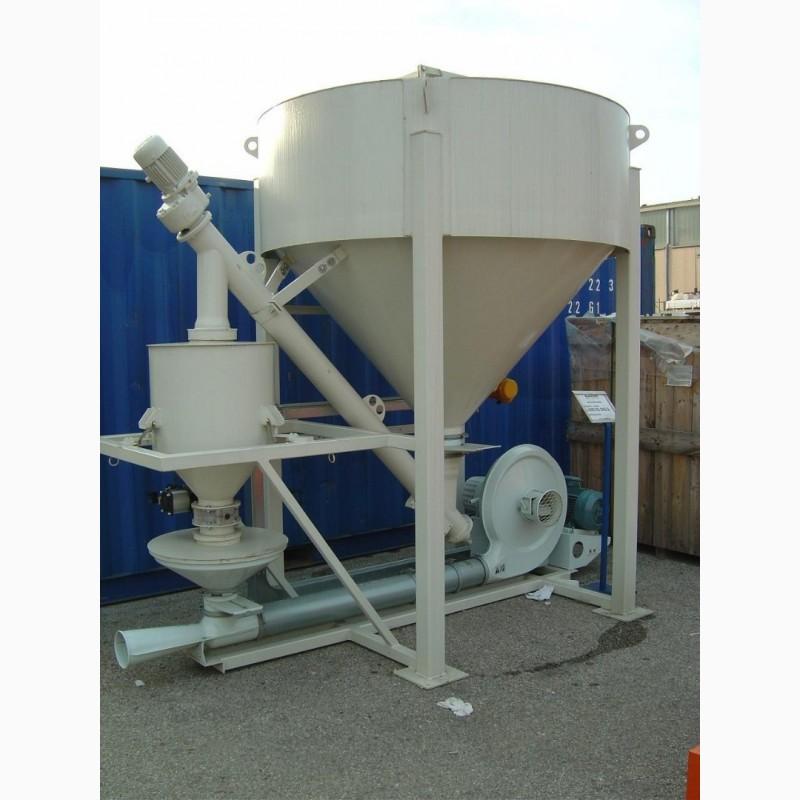

7. Mobile System of supply and storage of mineral filler
Filler silo: 30m³
Level indicator (Upper-Lower, level indicator)
Screw filler conveyor, Φ219, power: 2x4kW

Warranty 15 months.

Options:

Ebico brand burner (Italy): EB8NQ

Bitumen tank: 40 T stationary

Mobile bitumen tank: 30 T

Systemadditions for ShMA.
