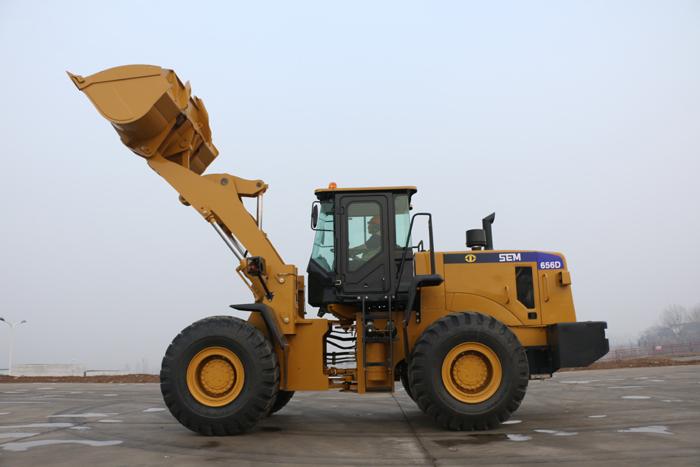

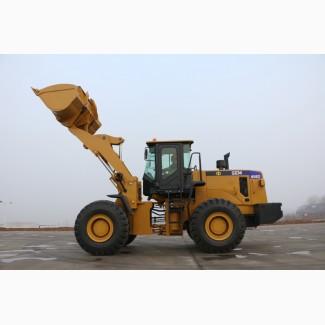

Front loader SEM 656D, Kharkiv region.

BASIC CHARACTERISTICS
The nominal load capacity is 5,000 kg.
Operating mass — 16,900 kg.
Bucket capacity — 2.6 - 4.5 m?
Overall dimensions LxWxH (mm) — 8396x2885x3456
ENGINE
Nominal useful power — 162 kW @2000rpm
The model is WD10G210E
The cylinder diameter is 126 mm
Piston stroke — 130 mm
The working volume of the engine is 9,726 L
Max. torque — 975 Nm
Operating characteristics
Traction force on the wheel is 172 kN
Break-off force — 173 kN
Load when overturning — 10398 kg
Hydraulic system / Pilot control
Flow pump — 112 ml/rev
Hydraulic cycle time:
Ascent — 5.13 s.
Downloading — 1.1 s.
Lowering (empty, loading) — 3.07 s.
Total — 9.3 p.
Steering system
Turning angle (Left/Right) — 38°
Min. turning radius of the rearwheel — 5,917 mm
Min. turning radius along the edge of the bucket — 6,894 mm.
Bridge
The brand is SEM SO32
Front — Fixed with calipers
Rear — Fixed with undercarriage. frame with calipers
Maximum rolling angles — oscillation ± 11°(//tractor-service.com)
Braking system
Service brake: — Dry, disc with pneumohydraulic calipers
Parking brake — drum, pneumomechanical

Transmission
Brand — SEM
Type — Intermediate shaft, switching under load
Gear speeds
Forward/backward 1 — 8.6 km/h
Forward/backward 2 — 16 km/h
Forward/backward 3 — 25 km/h
Forward/backward 4 — 43 km/h
The capacity of gas tanks
Fuel tank — 252 l
Engine cooling system — 45 l
Engine lubrication system — 23 l
Hydrotransformer and gearbox system — 55 l
Lubrication system of differentials and main gears:
Front - 26 l
Rear - 26 l
Hydraulic tank — 140 l.
Tires
Size — 23.5 - 25
The number of layers is 16
Type of tire by load — L3/E3
Working pressure — Front 400 kPa/ Rear 350 kPa
Additional equipment / Options
ROPS/FOPS (rollover protection system/protective structure against falling objects)
Elongated arrow
Cabin heater
Device for quick change of equipment
Forks for hay and other loose materials
Сменное навесное оборудование
