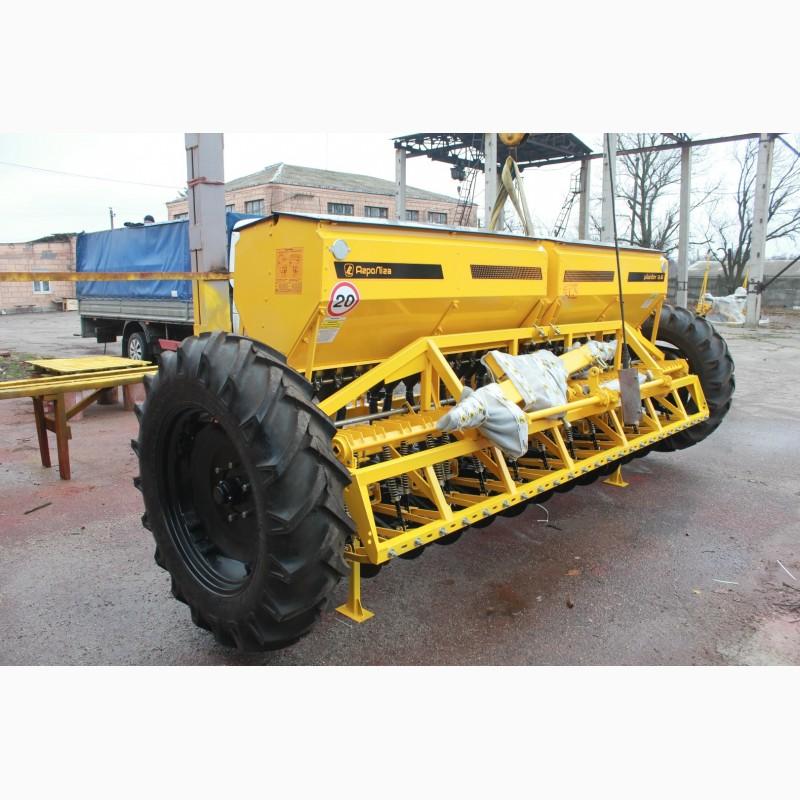

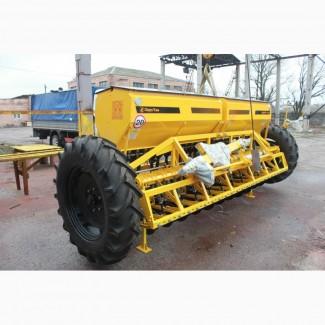

Seal seeder SZ-3.6, Kirovohrad region.

Sealka seeder SZ-3.6Planter developed for regular sowing of grain seeds (wheat, rye, barley, oats), leguminous crops (peas, beans, soybeans, lentils, broad beans, chickpeas, chickpeas, lupins) with simultaneous application of mineral fertilizers.

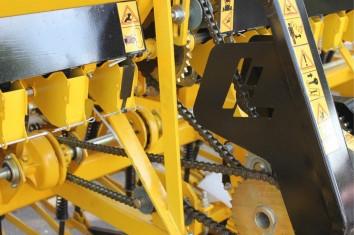

The seed sowing rate is set by changing the gear ratio in the gear mechanism, which has three main positions.

Gears of the transmission mechanism are thermally treated, which ensures an increase in the resource and reliability of their work.
And also the settings of the working length of the coil, the regulation of the working width of the coil, the group regulation of the valve of the seeding device and the change of the rotation frequency of the shaft of the seeding device are additionally set.

The main technical characteristics of the grain seeder SZ-3.6 Planter

Characteristics of Ed. change Planter 3.6 Planter 3.6-01 Planter 3.6-02
Working speed of movement in the main operations Km/hour 12 12 12(//tractor-service.com)
Gripping width m 3.6 3.6 3.6
The width of the row cm 15 7.5 15
Sowing rate Kg/ha
For seeds 15-400 15-400 15-400
For fertilized 25-200 25-200 25-200
The depth of planting seeds and fertilized mm 40-80 30-80 10-30
Weight kg 1234 1334 1334
Dimensions mm 3700*4300*1650 3700*4300*1650 3700*4300*1650
Hopper capacity (total) Dm3
For seeds 620 620 620
For fat 380 380 380 https://agrotorg.net
