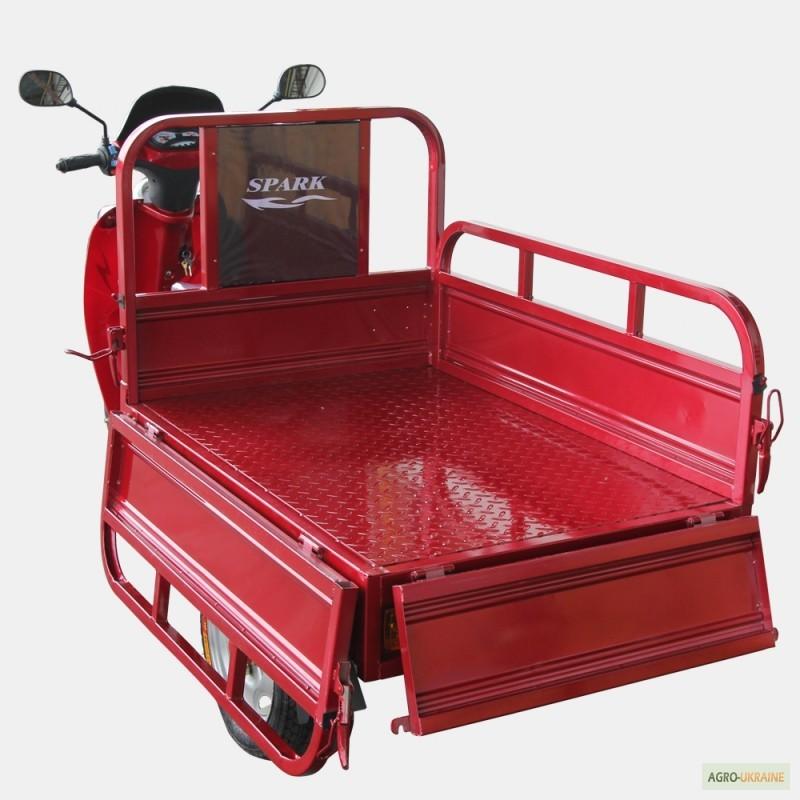

Cargo dump truck motorcycle (ant) Spark SP110 TR-4. 500 kg, Ternopil Oblast.

New, reliable and highly maneuverable cargo. motorcycle SP110TR-4.
He will become an assistant in the villages, at the dacha, on the construction site.

Delivery across Ukraine. Warranty year.

The SP110TR-4 cargo motorcycle replaced the FT 110 ZY cargo scooter. A three-wheeled motorcycle with a tipper trailer is intended for the movement and transportation of goods. Load capacity up to 500 kg Engine volume 110 cubic meters. Four-stroke gasoline engine with active air cooling. Engine power 7 liters. with. Maximum torque 6.5/6000 Nm/rev/min.
Folding sides — left, right, rear. Gearbox type 3+1 Rear axle drive — chain transmission.Front tires/rear — 3.50-10/4.00-12. The maximum speed is 55 km/h. The type of front brake is drum. The type of rear brake is drum. Wheel base 1820 mm. The average fuel consumption per l/100 km is 2.5.

Engine
Carburetor type
1-cylinder 4-stroke
Fuel type gasoline with octane
number not lower than 92
Air cooling system
Working volume, cm³ 106.7
Engine starting system electric starter / kickstarter
Nominal power, kW (hp)
5.0 (6.8)
Oil type semi-synthetic motor oil class SG, SF or higher for 4-stroke motorcycle engines
The gearbox is a 3-speed gearbox, the 4th is rear.
Rear axle chain drive, inter-wheel differential

Chassis
Frame tubular frame
Suspensionfront wheel telescopic fork(//tractor-service.com)
Rear wheel suspension -
The type of front brake is drum mechanical
The type of rear brake is drum mechanical
Tire size (front /
rear) 3.00-10 / 3.00-12

Main parameters
Wheel base, mm 1700
Maximum speed, km/h 55
Voltage of the on-board electrical network, V 12
Clutch mechanical, multi-disc, in an oil bath
Average fuel consumption, l/100 km 2.7
The volume of the fuel tank, l 5.0
The volume of the engine crankcase and gearbox, l
0.9
Carrying capacity, kg 500
Folding sides left, right, rear
Structural weight, kg 140
Body dimensions (internal, LxWxH), mm 1140x740x380/280
Overall dimensions (LxWxH), mm 2500x800x1220
