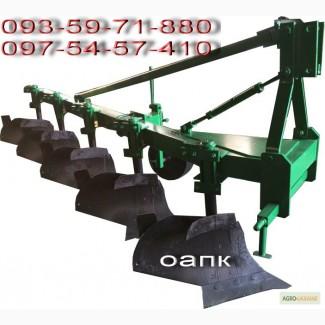

Plow PNB 5-40 on a round rack, Odesa region.

Hinged furrow plow is designed for plowing various soils undergrains and technical crops to a depth of up to 32 cm, not clogged with stones, slate and other obstacles, with a specific soil resistance of up to 0.09 Mpa (0.9 kgf/cm2) and humidity soil up to 27%.
The plow is aggregated with atractor KhTZ 150, the rightwheel which is in the furrow during operation.

Name Ed. ism. Значение
Coverage width m 2
Cover width mm 400
Plowing depth cm 20-32(//tractor-service.com)
The distance between the cases is mm 985
The number of cases is 5
The weight of the plow is kg 800
Advantages of the plow
1. The plow is aggregated with the HTZ 150 tractor, which moves in the furrow, which provides excellent joints in adjacent passes, and in wet soil conditions allows you to start plowing 7-10 days earlier than when working with conventional plows.
2. High productivity, the absence of technological downtime due to the reduction of clogging (due to the increased clearance under the frame, the installation of angle brackets instead of plowshares, the location of the housings on the side of the frame).
3. High-quality plowing (good soil turnover, compaction of plant residues and soil crumbling, uniformity in depth).
4. Clarity, simplicity and convenience of adjustments.
