Sipma waste disposal machine, Donetsk region.

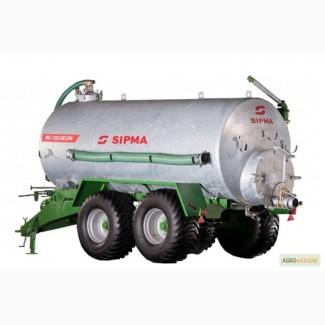

For sale Waste disposal machine Sipma

The self-supporting frame significantly increases the strength of the equipment. Assimilation machines with a frame can be adapted to the installation of a soil sleeve.

Three connections ensure safe and ergonomic maintenance of the machine. As a standard, the machines are equipped with 3 nozzles: two side ones - on the left and right sides (one with a brass valve, which can be opened manually) and the rear - with a brass valve, which can be opened hydraulically and with a pouring spoon. By special order, it is possible to install an additional filler pipe on the hatch.
Battioni Pagani vacuum pumps guarantee durability and reliability. At the request of the client, it is possible to install pumps of other parameters.
Protection against corrosion allows you to use the machine for a long time.
The tank is made of sheet steel with a thickness of 5 mm, hot-dip galvanized inside and out. The frame and drawbar are painted with a special polyurethane paint. On special order, they can be galvanized.
Reinforcing rings with a section used in the production of high-pressure containers ensure safety and exceptional strength of the structure.
Valves that prevent excessive overpressure and vacuum pressure make the tank resistant to damage caused by exceeding the nominal pressure.
The indicator of the tubular structure provides full control of the filling of the tank.
Internal partitions prevent unexpected fluid overflow, especially during sharp braking, as well as when driving over bumps with an incomplete tank. This allows you to avoid the unpleasant phenomenon of "rolling" of the barrel and overloading the tractor coupling. The use of two such partitions in a tank with a volume of 6,600 liters distinguishes our products from the products of other manufacturers and allows to increase safety and customer satisfaction.
The ability to adjust the position of the axle greatly facilitates the use of the machine, especially after installing additional equipment - the possibility of reducing/increasing the load of the trailer.
In addition, the machines can be equipped with differentразмеры резыны, different wheel systems, as well as other elements proposed by the client.
Technical data and equipment
Model SIPMA WA 600
Volume l 6600
The diameter of the tank is mm 1500
Pump MEC/M 6500
Diameter attached 5" (ø127)
Tires 400R 22.5 Flotagrip
Running system 1-axle-rigid(//tractor-service.com)
Transport speed (according to homologation) km/h 40
Minimum power consumption kW (hp) 60 (82)
Equipment
articulated-telescopic shaft ✔
wheels - 400 R 225.5 TL ✔
brake installation 1 or 2 wires ✔
the number of nozzles 1 rear, 2 side|179
(с левой и правой стороны) ✔
2-ball valve, upper ✔
ball siphon with drain valve ✔
задния ланунная задвижка открываемая
hydraulically ✔
the left brass valve is openable
manually ✔
hose - 6.6 mb ✔
galvanized spreader with spoon ✔
Размеры
length m 6.00
width m 2.20
height m 2.70
Mass kg 2 400
Conventional signs: ✔- standard, O - for additional payment, ✘ - unavailable
