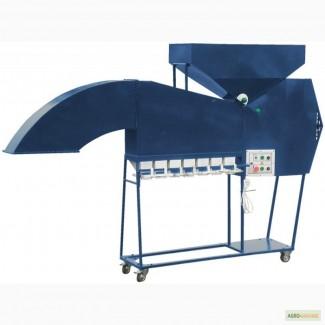

Grain separator TOR ISM-3, Donetsk region.
Region:all of Ukraine,
Donetsk region.
(Mariupol)
SPECIALIZATION OF TOR SEPARATOR ISM-3
The TOR ISM-3 grain separator is intended for calibration and cleaning of seed and commercial material in seed farms:grains,legumes, vegetable,bahchevy, fodder, as well as all kinds of bulk mixes. This is a small but high-performance machine. She always calibrates the grain with great accuracy, dividing it into 7 fractions. Her narrow specialization is the preparation of high-quality seed material. Her weight is 85 kg.
OPERATION MODES OF THE TOR ISM-3 SEPARATOR
Pre-cleaning mode.
Primary cleaning mode.
Calibration mode.
Mixed mode (calibration and cleaning at the same time).
FEATURES OF THE CONSTRUCTION OF THE TOR ISM-3 SEPARATOR
The use of an impeller as a power plant for the first time made it possible to minimize the loss of power of the air flow created by the impeller on machines of this type: the machine does not have air ducts, which require a significant part of the power of the electric motor to overcome their resistance.
Due to the design solution - the location of the air intake in the upper part - small impurities are excluded from entering the air intake device.
The use of an impeller of the correct aerodynamic shape, made especially for the "ISM" company - a manufacturer of aviation equipment, made it possible to significantly reduce the energy consumption of the electric motor, stabilize the air flow and eliminate vibrations.
There is no deturbulizing mesh in the design of the machine and, accordingly, there is no need for its periodic cleaning, which allows you to operate the machine without technological pauses.(//tractor-service.com)
The use of a frequency converter allows you to adjust the speed of the impeller, make a smooth start of the electric motor and start it in reverse mode for self-cleaning, connect 380/220.
TECHNICAL CHARACTERISTICS OF THE TOR ISM-3 SEPARATOR
Productivity during primary cleaning of grain:
3 tons/hour
Productivity when calibrating seed material:
up to 1.8 t/h
Power consumption:
0.165-0.375kW/hour, 220/380V, 50Hz
Length:
1700 mm
Width:
400 mm
Height:
1700 mm
Mass:
85 kg
The TOR ISM-3 grain separator is intended for calibration and cleaning of seed and commercial material in seed farms:grains,legumes, vegetable,bahchevy, fodder, as well as all kinds of bulk mixes. This is a small but high-performance machine. She always calibrates the grain with great accuracy, dividing it into 7 fractions. Her narrow specialization is the preparation of high-quality seed material. Her weight is 85 kg.
OPERATION MODES OF THE TOR ISM-3 SEPARATOR
Pre-cleaning mode.
Primary cleaning mode.
Calibration mode.
Mixed mode (calibration and cleaning at the same time).
FEATURES OF THE CONSTRUCTION OF THE TOR ISM-3 SEPARATOR
The use of an impeller as a power plant for the first time made it possible to minimize the loss of power of the air flow created by the impeller on machines of this type: the machine does not have air ducts, which require a significant part of the power of the electric motor to overcome their resistance.
Due to the design solution - the location of the air intake in the upper part - small impurities are excluded from entering the air intake device.
The use of an impeller of the correct aerodynamic shape, made especially for the "ISM" company - a manufacturer of aviation equipment, made it possible to significantly reduce the energy consumption of the electric motor, stabilize the air flow and eliminate vibrations.
There is no deturbulizing mesh in the design of the machine and, accordingly, there is no need for its periodic cleaning, which allows you to operate the machine without technological pauses.(//tractor-service.com)
The use of a frequency converter allows you to adjust the speed of the impeller, make a smooth start of the electric motor and start it in reverse mode for self-cleaning, connect 380/220.
TECHNICAL CHARACTERISTICS OF THE TOR ISM-3 SEPARATOR
Productivity during primary cleaning of grain:
3 tons/hour
Productivity when calibrating seed material:
up to 1.8 t/h
Power consumption:
0.165-0.375kW/hour, 220/380V, 50Hz
Length:
1700 mm
Width:
400 mm
Height:
1700 mm
Mass:
85 kg
