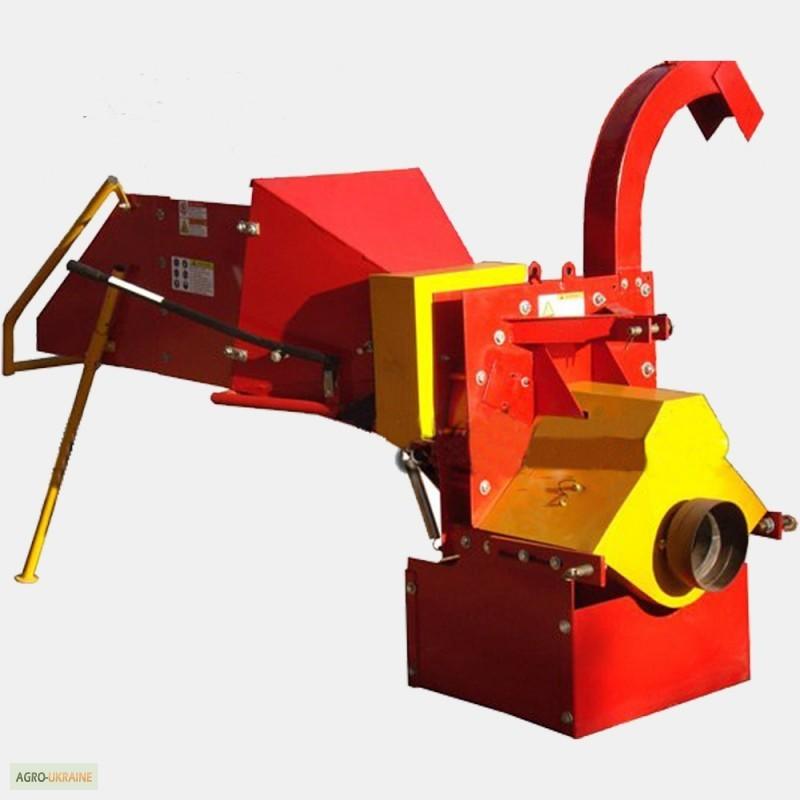

DTZ IV20 branch shredder for mini-tractor from DTZ plant, Dnepropetrovsk region.

Technical characteristics DTZ IV20 branch shredder

Spring type
Productivity, m3/h 8 - 9
The power of the aggregatedtractor, hp 24

The maximum diameter of branches, mm 200
The size of the received chip, mm not more than 35

Feed type automatic, with reverse(//tractor-service.com)
PTO speed, rpm 540
Overall dimensions, mm 1400x1020x1600

The branch shredder is used for fast and effective processing (mulching) of large volumes of sawn branches and tree trunks with a diameter of up to 200 mm into chips. Its productivity is 8-9 m³/hour. The shredder is installed on the tractor's hinged system using a special three-point mechanism and is activated by the power take-off shaft. The rotation speed of the tractor shaft when the chopper is working should be 540 rpm. Processing of branches can be carried out directly at the place of felling and with much greater productivity than units with an electric drive. The turning radius of the discharge sleeve is 302°. It is equipped with a milling cutting mechanism, as well as a hydraulic feed mechanism with reverse. This allows you to grind dry and fresh wood of any kind, including hard wood, so working with ashredder is simple, convenient and safe. The marking of this product may differ - IV20 (in Russian), PG20 (in Ukrainian), but this is one and the same equipment.

Our DTZ plant has been operating on the Ukrainian market for more than 15 years. Over these almost two decades, our company has won the trust of consumers and the respect of competitors thanks to comfortable price levels, short delivery times and high quality products that easily compete with imported counterparts. We are a reliable supplier of agricultural machinery, motorcycle machinery, garden and park machinery.

The products of our factory comply with the most modern industry standards and regulations, meet the requirements of rapidly developing technologies and have an attractive modern design.

For example,mini tractors under the brand DTZ, DONGFENG, JINMA, DW, XINGTAI can be found in almost every farm. Farmers from all regions of Ukraine were able to appreciate their quality and reliability.
