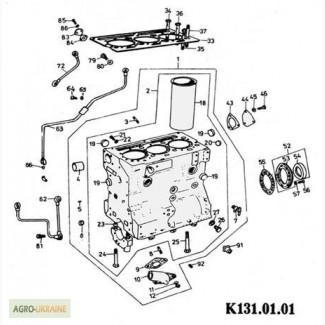

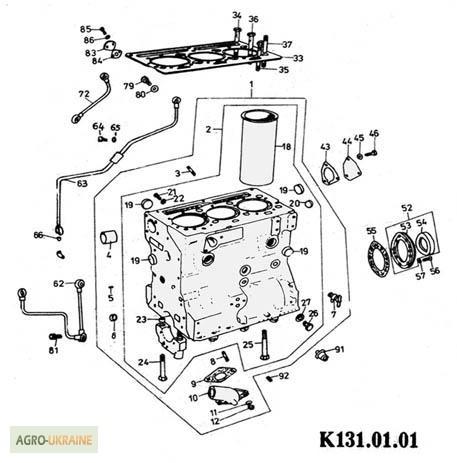

Block of cylinders for a D2500k engine on a Balkancar loader, Kharkiv region.

Position No.
Catalog No.
positional number
Name
1
8 495847
В41161279
Block of cylinders (assembled)
1
8 461587
В41161272
Block of cylinders (assembled)
1
8 481072
В41161277
Block of cylinders (assembled)
2
7 495832
В41161418
Block of cylinders (assembled)
2
7 481087
В41161416
Block of cylinders (assembled)
2
7 484260
В41161414
Block of cylinders (assembled)
2
7 481087 4566693372
В41161416
Block of cylinders (assembled)
3
6 441757 4566693515
В32513031
Pin
4
6 480833 4566693380
В2511699
Bushing
5
6 433576 4566693204
В3245211
Pin
6
6 440883 4566692336
В32417105
Plug 17 ZN-VK 031
7
6 203824

Drain tap 1/4 BDS 2706-75
8

В32513032
Pin
9
6 432247 4566692941
36861402
Sealing
10
6 422412 4366692768
В37736421
Water inlet pipe
11
6 205035

Washer 2-8L BDS 833-82/Zn
12
6 235781

Nut M8-8 BDS 744-83/Zn
18
6 402060 4566692193
31358323
Sleeve (not fully processed)
19
6 445536 4566692339
В32418101
Plug 32 ZN-VK 031
20
6 430781 4566692345
В32417106
Plug 32 ZN-VK 031
21
6 440906 4566692027
В32142242
Bolt
22
6 240403

Ring I A8x12 Al 99.5 BDS 3609-73
23
6 440505 4566692191
В33137405
Centering sleeve
24
6 444564 4566692023
В32181441
Bolt
25
6 444944 4566693373
В32181442
Bolt
33
6 462452 4566693387
36812127
Block head gasket
34
6 436995 4566693322
32181445
Cylinder head bolt
35
6 437010 4566692070
32181447
Cylinder block head bolt
36
6 437004 4566692071
32181446
Cylinder block head bolt
37
6 420441 4566694224
32524133
Cylinder block head pin
43
6 446648 4566692921
36862511
Sealing(//tractor-service.com)
44
6 430656 4566692270
36237125
Cover
45
6 205035

Washer 2-8L BDS 833-82/Zn
46
6 235100

Bolt A1 M8x16-8.8 BDS 1232-86/fos.
52
8 460995 4566693393
В41422032
Casing
53
8 446113 4566693738
37424611
Casing
54
6 488171
В2415385
Cuff seal
55
6 471507 4566694233
33826111
Sealing
56
6 237598

Bolt A1 M8x20-8.8 BDS 1232-86/Zn
57
6 205035

Washer 2-8L BDS 833-82/Zn
62
8 481024 4566693792
В35568621
Oil pipe
63
8 429287
В35353002
Oil pipe from the cylinder block to the cylinder head
64
6 422433
В34711196
Pipeline from the cylinder block to the camshaft
65
6 230370

Connecting nut ZS BDS 2246-70
66
6 443684
В33171151
Conical sealing
68
6 402300
В31726176
Knee
72
8 481030
В35568021
Oil pipe from the cylinder block to the block head
73
8 403840
В35568319
Oil pipe from the cylinder block to the cylinder head
74
7 422448
В33568321
Oil pipe
75
6 230370

Connecting nut ZS BDS 2246-70/fos.
76
6 433684
В33171151
Conical seal
78
6 402300
В31726176
Knee
79
6 238133

Hollow bolt 1-6 BDS 3611-82/6.8 Zn
80
6 240368

Ring I A10x14 Al 99.5 BDS 3609-73
81
6 481615 4566693374
В32184271
The bolt is hollow.
83
6 495707
В36122021
Cover
84
6 467884
36851113
Sealing
85
6 238288

Bolt A1 M8x16-8.8 BDS 1232-86/fos.
86
6 205035

Washer 2-8L BDS 833-82/Zn
91
6 451393 4566693975
В26661121
Oil pressure sensor 852-02160-120
91
6 402265
В2666105
DAM oil pressure sensor
92
6 446606 4566699691
В32813503
Traffic jam
93
6 463944
В33557018
Stutser
