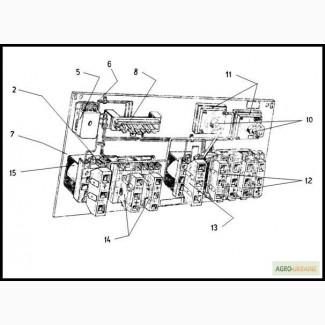

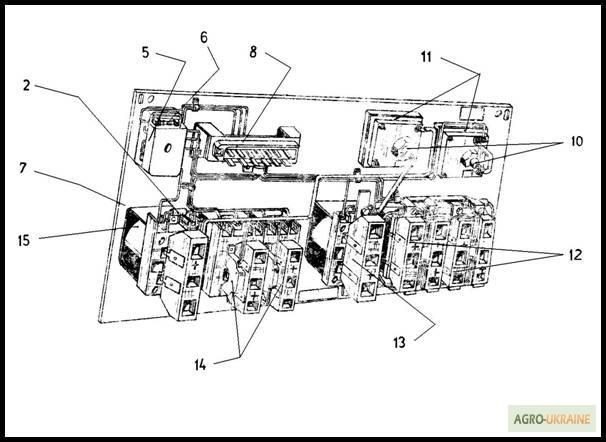

Electronic equipment electric panel with contactor scheme for EB 687 truck, Kharkiv region.

Position No.
Catalog No.
Name
Pieces
ELECTRONIC EQUIPMENT
Electric panel with a contactor circuit for speed regulation.
_
128124/128125/ 3811.3 00.00.00
Electric panel option 00
1
2
108291 3828 00.02.00
Spark extinguishing circuit
2
3
220146 BDS 2586-69
Capacitor type KKOP 400V, 0.1 F
6
4
264028 63005
Varistor HP 100 on ON MM 5637-69
6
5
208421 BDS 5003-73
Fuse shield TP-6
1
6
104713 DIN 72581
Fuse 8А
6
7
264037 3811.3 00.01.00
Plate (assembled)
1
8
222636 BDS 8368-70
Connector type C20V
1(//tractor-service.com)
10
_ 3811.3 01.00.00
Diode (assembled)
2
11
_ 3811.3 00.00.02
Insulation
2
12
184139 42353 00.00-02 (KtE 480-01)
Contactor KPD-5 100A with coil 40V normal performance
2
12
264038 42353 00.00-02
KPD-5 contactor with coil 40V, tropical design

13
126375 42359 00.00-02 (KtE 438-01)
Contactor KPE-6 160A with coil 40V normal performance
1
13
264039 42360-12
KPE-6 contactor with coil 40V, tropical design

14
109863 42371 00.00-22 (KtE 479-01)
Contactor KPE-4 63A with coil 40V normal performance
2
14
264040 42372 00.00-22
KPE-4 contactor with coil 40V, tropical design

15
181332 42359 00.00-72 (KtE 474-01)
Low-voltage contactor KPE-6 160A with coil 40V, normal performance
1
15
264544 42359 00.00-72
Low-voltage contactor KPE-6 with coil 40V, tropical version
